    Home / Chief Manufacturing / Chief FUSION Micro-Adjustable Tilt Wall Display Mount, 37-63 In.

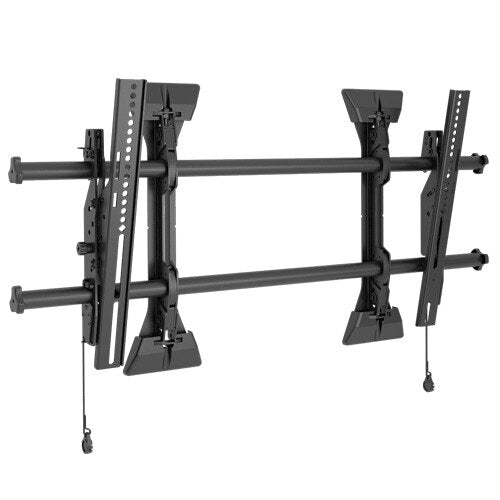

    Chief FUSION Micro-Adjustable Tilt Wall Display Mount, 37-63 In.

    Chief FUSION Micro-Adjustable Tilt Wall Display Mount, 37-63 In.

    CMLTM1U

    $335.20

    Notify me when this product is available:

    Mount a Large Flat Screen Display With Tilt

    When you need a perfectly level, mounted large flat screen display, mount it with the Chief FUSION Micro-Adjustable Tilt Wall Display Mount (37-63 In.). With micro-adjustable tilt through ControlZone leveling, the installer can fine tune the display's height and landscape orientation after installation to provide a precisely level viewing experience. After setup is complete, the user can tilt the display up/down and lock it into place at one of three tilt positions – 0 degrees, 6 degrees, and 12 degrees – without affecting the level horizontal position. Additionally, the mount's Centris low-profile tilt feature uses the center of gravity to balance the display while maintaining a low profile.

    • Mounts a 37-63" flat screen TV up to 200 pounds with tilt capability
    • ControlZone technology enables fine tuning of height and leveling
    • Allows post-installat
    • Manufacturer Part #: LTM1U
    • Color: Black
    • Lateral Shift: 17.4 inches (441 mm)
    • Manual Height Adjustment: 1 inch (25 mm)
    • Maximum Screen Thickness: 6 inches
    • Minimum Depth: 2 inches (51 mm)
    • Mounting Pattern Compatibility (Universal Versions): 100 x 100mm – 830 x 400mm
    • Orientation: Landscape
    • Overall Dimensions: 17.0(H) x 34.75(W) x 2.0(D) inches (432 x 883 x 51 mm)
    • Shipping Weight: 22.01 pounds
    • Solution Type: Universal
    • Tilt: +2° , -12°
    • Typical Screen Sizes: 37 to 63 inches
    • Wall Stud Compatibility: 16-32 inches
    • Weight Capacity: 200 pounds (90.9kg)
    • Certifications: UL Listed

    »Chief LTM1U Fusion Micro-Adjustable Tilt Wall Display Mount Installation Manual (.pdf)»Chief LTM1U Fusion Micro-Adjustable Tilt Wall Display Mount Technical Drawing (.pdf)
