    Home / Chief Manufacturing / Chief FUSION Micro-Adjustable Fixed Wall Display Mount, 26-47 In.

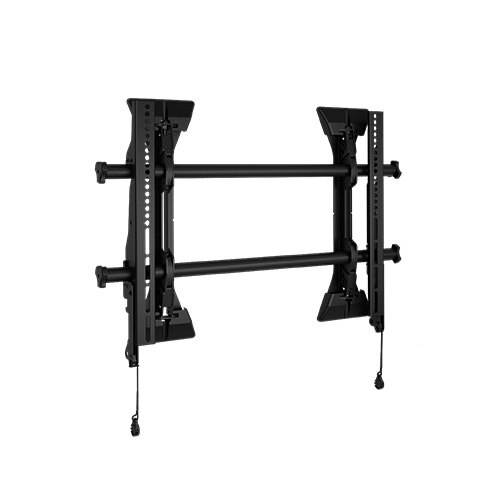

    Chief FUSION Micro-Adjustable Fixed Wall Display Mount, 26-47 In.

    Chief FUSION Micro-Adjustable Fixed Wall Display Mount, 26-47 In.

    CMMSM1U

    $165.92

    Notify me when this product is available:

    Mount a Medium Flat Screen Display Without Tilt

    Mount a medium-sized flat screen TV to the wall knowing it will stay perfectly level with the Chief FUSION Micro-Adjustable Fixed Wall Display Mount (26-47 In.). As a fixed mount, this model allows the display to come as close to the wall as possible, because no extra space is needed for tilting. Furthermore, the mount features micro-adjustable post-installation leveling, giving the installer the opportunity to precisely level the display and fine tune its height. Users will always get a level viewing experience with this mount!

    • Mounts a 26-47" flat screen TV up to 125 pounds in a fixed position
    • ControlZone technology enables fine tuning of height and leveling
    • Allows post-installation "centerless" lateral shift up to 12.9 inches
    • Lock-down screws on the sliding bar keep the mount stable
    • Built-in cable stand for easy access under the displa
    • Manufacturer Part #: MSM1U
    • Color: Black
    • Lateral Shift: 12.9 inches (327 mm)
    • Minimum Depth: 2 inches (51 mm)
    • Manual Height Adjustment: 1 inch (25 mm)
    • Mounting Pattern Compatibility (Universal Versions): 100 x 100mm – 650 x 400mm
    • Orientation: Landscape
    • Overall Dimensions: 18.25(H) x 25.75(W) x 2.0(D) inches (464 x 654 x 51 mm)
    • Shipping Weight: 17.16 pounds
    • Solution Type: Universal
    • Typical Screen Sizes: 26 to 47 inches
    • Wall Stud Compatibility: 16-24 inches
    • Weight Capacity: 125 pounds (56.8kg)
    • Certifications: UL Listed
    • Warranty: 10 Years

    »Chief MSM1U Fusion Micro-Adjustable Fixed Wall Display Mount Installation Manual (.pdf)»Chief MSM1U Fusion Micro-Adjustable Fixed Wall Display Mount Technical Drawing (.pdf)
