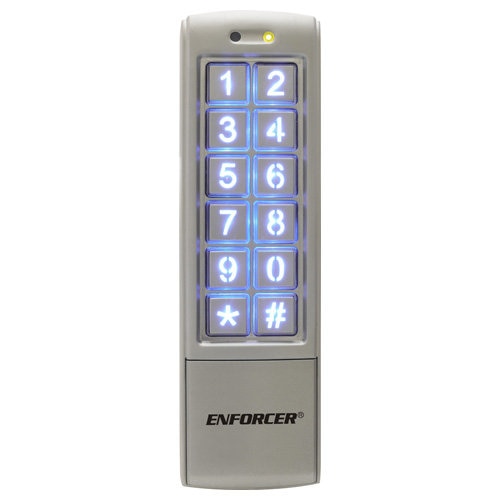

  • Seco-Larm Enforcer Access Control Keypad, Mullion-Style

    SESK2323SDQ

    Notify me when this product is available:

    1,010 Users, Two 1-Amp Relays

    • 1,010 Users (Output #1: 1,000 users, Output #2: 10 users).
    • 2 Form C relay outputs.
    • Each relay has programmable output time from 1~99 seconds or toggle.
    • Output #2 can be programmed for use with a doorbell.
    • 2 Egress inputs and 1 door sensor input.
    • Backlit keys for easy nighttime use.
    • 2 Multi-colored status LEDs
    • All features are programmed directly from the keypad – no need for an external programmer.
    • EEPROM protects programmed information in case of power loss.
    • Optical tamper sensor for added security.
    • Circuitry is potted with epoxy for outdoor use.
    • Weatherproof (IP65).
    • Rugged aluminum construction.

    Seco-Larm Security Products

    So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Under the Enforcer trademark, Home Controls of

    • Operating voltage: 12~15 VDC
    • Current draw: Standby 40mA@12VDC; Active 70mA@12VDC
    • Relay outputs: Output #1 1A@30VDC, Form C, NO/NC/COM; Output #2 1A@30VDC, Form C, NO/NC/COM
    • Egress inputs: Input #1 N.O. ground; Input #2 N.O. ground
    • Door sensor input: N.C. ground
    • Tamper sensor: Optical
    • Operating temperature: -4° ~122° F (-20° ~50° C)
    • Keypad LED life: 60,000 hours (over 6.8 years)
    • Weight: 11-oz (312g)
