Seco-Larm Enforcer Multi-Purpose Programmable Timer
SESA025Q
$19.95
Timer Module With 1-Second To 1-Hour Range

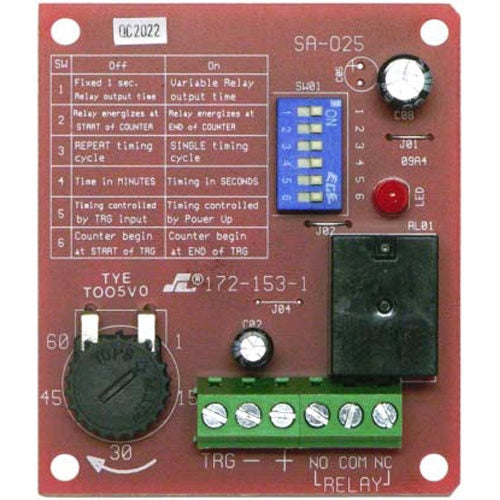

Designed to support various timed security and access control applications, the Seco-Larm Enforcer Multi-Purpose Programmable Timer (SA-025Q) is a single-event timer module that can be triggered by positive voltage (+DC), or closure or opening of dry contact. Using its DIP switches, you can set the timer from 1 second to 60 minutes. The timer even supports pulse (flash) activation if required. It’s perfect for adding a timer to a door lock, siren, and other devices used in timed operations.
- Timer can be set from 1 sec. to 60 mins. and supports pulse (flash) activation
- Triggered by positive voltage (+DC), or closure or opening of dry contact
- Easily programmable via DIP switches (no jumpers to cut)
- Built-in reset function lets you manually reset the timing cycle
- LED indicates Form-C relay is energized
Programming the timer is made easy by DIP
