Smartvue S2 — Wireless IP Video Surveillance System Brochure

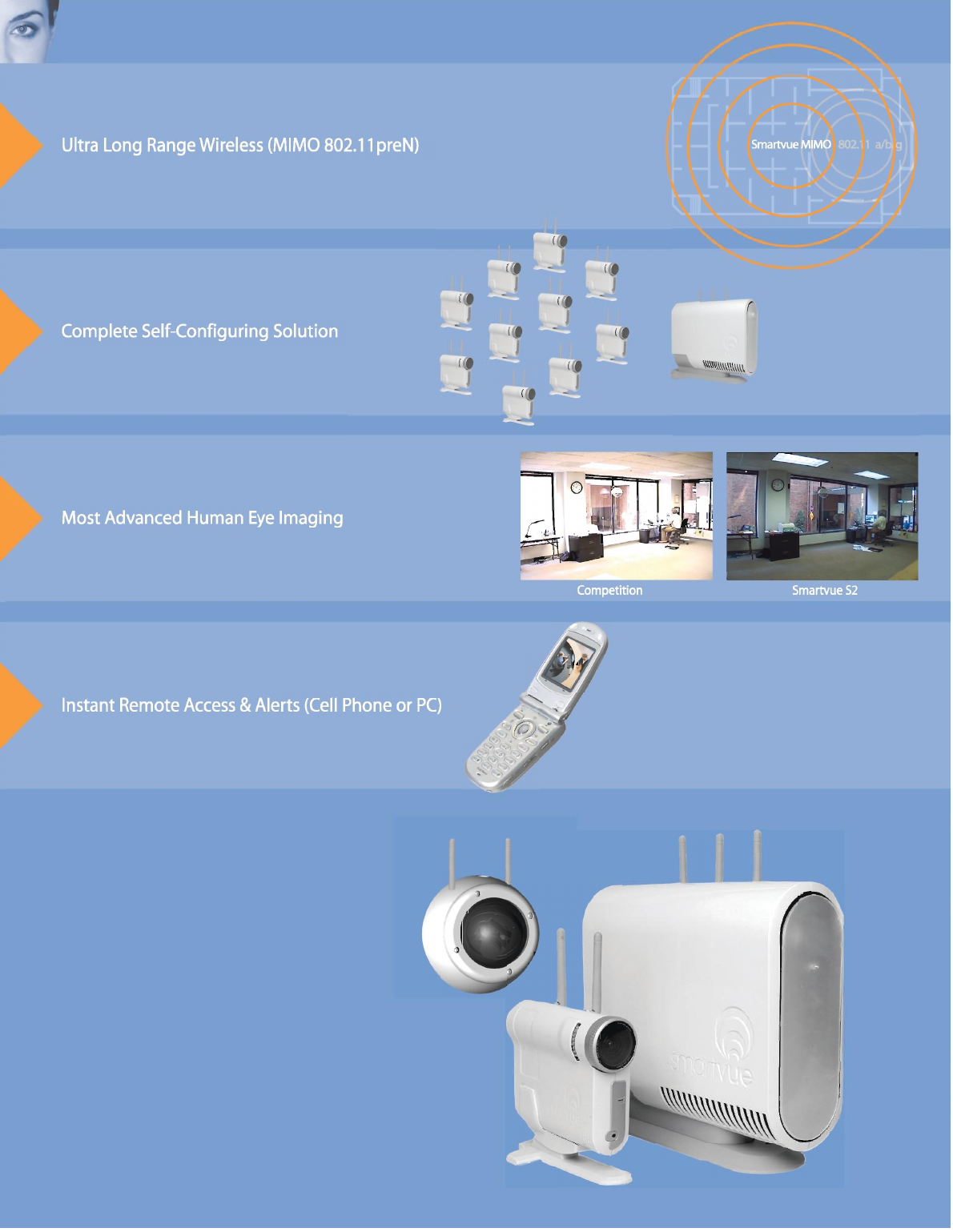

Product brochure for the Smartvue® S2 IP Video Surveillance system — a self-configuring wireless IP camera and Digital Video Manager (DVM) solution with human-eye dynamic range imaging and H.264 in-camera compression.

Overview

The Smartvue S2 is an award-winning wireless IP video solution designed to reduce the cost, complexity, and time required to install high-quality, secure IP video surveillance. It won a 2005 Design & Engineering Showcase Honor at Innovations International CES.

Key Features

Smart

• DynamicVue™ human-eye imaging: pixel-level exposure control for balanced exposure in high-contrast scenes (e.g. bright windows), outperforming standard IP cameras in side-by-side comparisons.
• H.264 in-camera compression with progressive scan for DVD-quality (D1, 720x480) video.
• MIMO 802.11 pre-n wireless — up to 10x the range of standard 802.11a/b/g Wi-Fi.

Simple

• 1-Click Surveillance™ self-configuring setup — no gateway, IP, or firewall configuration required.
• Supports up to 10 cameras per DVM.
• Web and cell phone remote access with real-time text/email alerts on motion detection.

Secure

• SecureVue™: 128-bit encrypted USB IP surveillance key for remote access authentication.
• CamLock™: prevents unauthorized access to cameras.
• Closed, Linux-based system architecture with zero load on the customer's existing network.

Specifications

Video Quality

• DynamicVue™ Wide Dynamic Range: 95dB typical, 120dB max
• Progressive scan, 32-bit image processing, global shuttering with 36GBit/sec internal memory
• Square pixel technology; NTSC/PAL support
• Low light: 0.3 Lux; 17-bit data capture; ATW auto white balance
• Automatic gain / backlight compensation
• Tamron 4mm super-sharp lens, f1.4; 4X digital zoom with pan/tilt
• In-camera motion detection, day/night switching, zero smear, natural color rendering

Video Features

• H.264 and MJPEG in-camera compression
• 720x480 D1 recording resolution / 320x240 CIF playback option
• Adjustable bit rate; frame rate up to 30fps
• Wired RCA analog and RJ45 Ethernet outputs
• DVM storage capacity: 250GB or 80GB

Wireless & Networking

• Self-configuring system for up to 10 cameras
• MIMO OFDM (802.11n pre-standard), 5GHz (2.4GHz optional)
• AES encryption, WPA support, hidden SSID
• Plug-and-play DVM; DHCP or direct PC connect
• DVMFinder™ automatic IP address configuration

Security

• CamLock™ camera locking technology
• SecureVue™ 128-bit encrypted USB key plus firewall
• 2-level permission management (username/password)
• DNoS AP shutdown prevention; camera lock-out/time-out system

Operation & Requirements

• Simultaneous live preview, recording, and playback
• Weekly calendar programming; archive search by camera/date/time/event
• Save clips via PocketVideo™ to PC/USB; auto-purge by date or hard-drive capacity
• Linux-based; browser compatibility IE v5+, Netscape v4.7+

Remote Access & Management

• RemoteVue™ access via PC or WAP cell phone
• VSystem™ configuration reduces setup/firewall friction
• Free InsightServer™ live view access
• Email alerts with D1 JPEG images on motion; text message alerts (motion, power off, disk full)
• DHCP or static IP modes

Dimensions

• Camera: 42W x 132H x 158D mm (1.6 x 5.2 x 6.2 in)
• DVM: 97W x 296H x 291D mm (3.8 x 11.63 x 11.49 in)

Package Contents

• Removable camera shelf stand with wall/ceiling brackets
• Network cable and crossover cable
• 2 SecureVue USB security keys (Pro edition only)
• Quickstart guide and operations manual
• AC power adapters for camera and DVM

Model Numbers

Note: this brochure describes a discontinued/legacy product line, retained here for reference and documentation purposes.

© 1996-2005 Smartvue Corporation. www.smartvue.com, (800) 670-3612
