    OEM Systems PS-12 — 300 Watt Powered Subwoofer Brochure

    September 08, 2026 2 min read

    Product brochure and full specifications for the OEM Systems PS-12 300-watt free-standing powered subwoofer.

    💾 Download Original PDF
    Full text manual (for reference)

    Product brochure for the OEM Systems PS-12 — a 300-watt free-standing powered subwoofer with a 12" extra-long-throw driver and an integral BASH® amplifier.

    Overview

    The PS-12 is designed for exceptional performance and value, featuring a 12" extra-long-excursion woofer with a high-BL motor in a bass-reflex enclosure with a flared port for extended bass response and high acoustic efficiency. The woofer is driven by an integral 300W Class A/B amplifier using patented BASH® technology for high electrical efficiency.

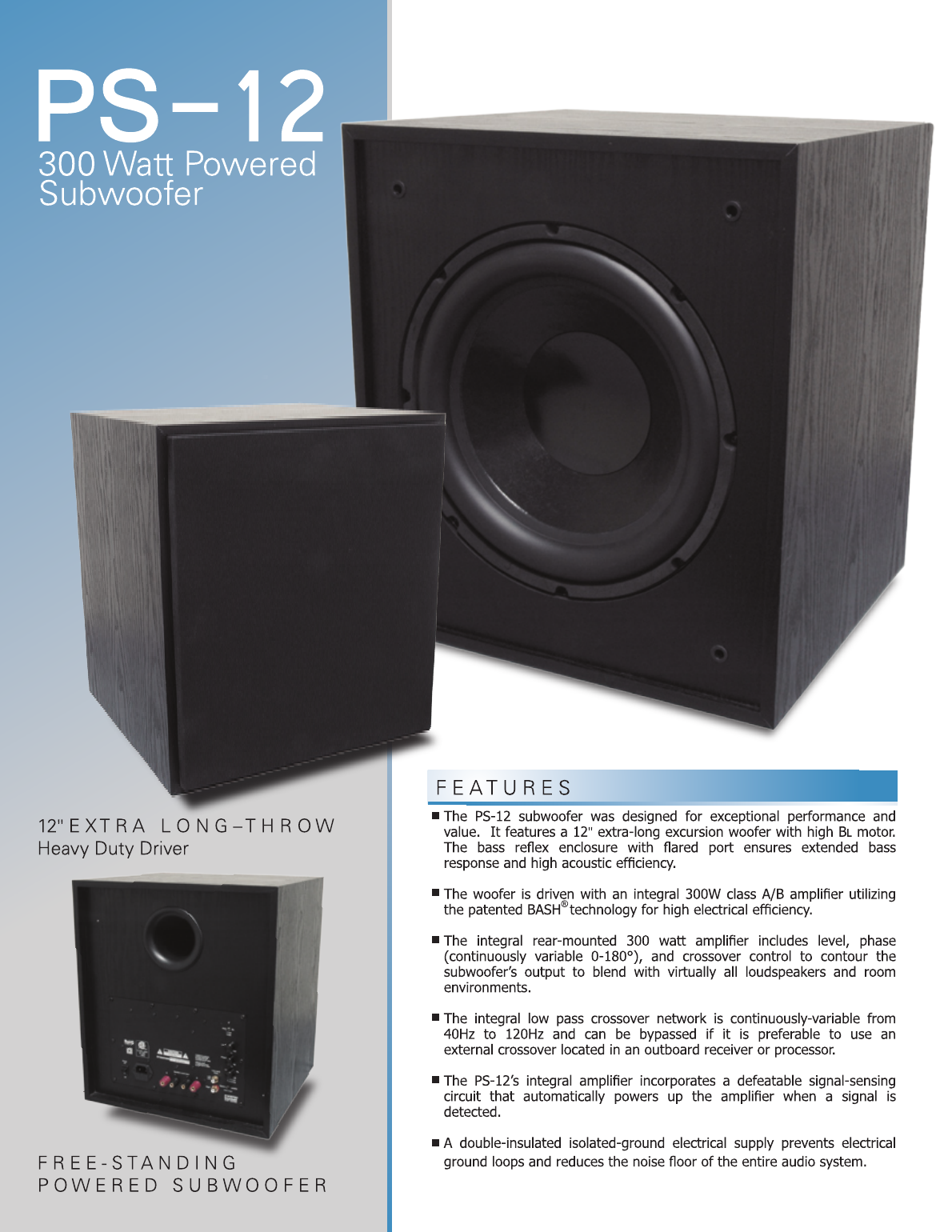

    OEM Systems PS-12 powered subwoofer, front and rear views
    PS-12 cabinet with 12" extra-long-throw driver (front) and rear-mounted amplifier panel with flared bass port (rear).

    Key Features

    • Integral rear-mounted 300-watt amplifier with Level, Phase (continuously variable 0–180°), and Crossover controls to blend output with various loudspeakers and room environments.
    • Integral low-pass crossover network, continuously variable from 40Hz–120Hz, with a bypass option for use with an external crossover in a receiver/processor.
    • Defeatable signal-sensing circuit that automatically powers up the amplifier when a signal is detected.
    • Double-insulated, isolated-ground electrical supply prevents ground loops and reduces the system noise floor.

    Amplifier Panel & Specifications

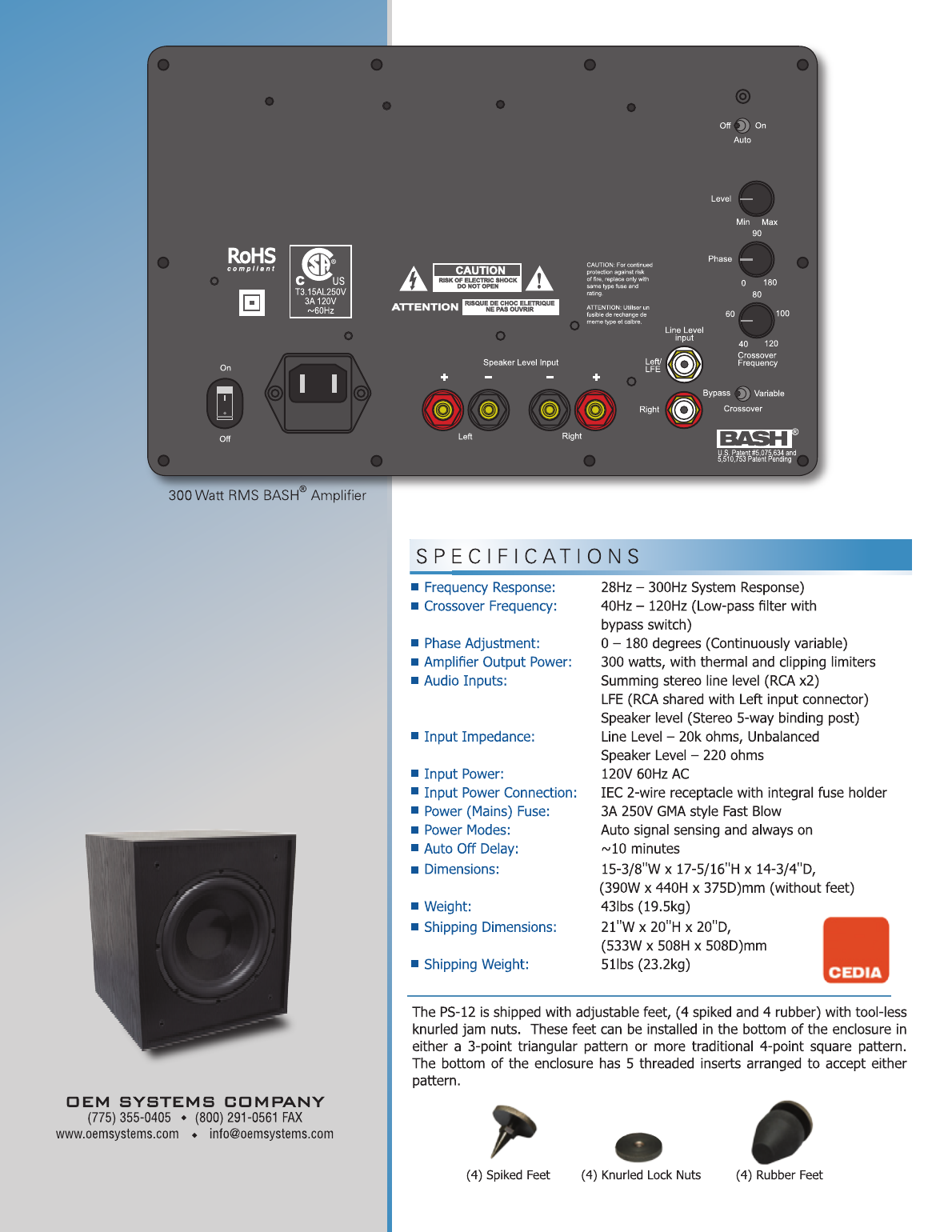

    PS-12 rear amplifier panel controls and specification diagrams
    300W BASH® amplifier rear panel: power switch, IEC inlet with fuse, speaker-level and line-level (RCA) inputs, crossover bypass switch, crossover frequency / phase / level knobs, and auto/on/off signal-sensing switch.
    Spec Value
    Frequency Response 28Hz – 300Hz (system response)
    Crossover Frequency 40Hz – 120Hz low-pass filter, with bypass switch
    Phase Adjustment 0–180° continuously variable
    Amplifier Output Power 300 watts, with thermal and clipping limiters
    Audio Inputs Summing stereo line level (RCA x2); LFE (RCA, shared with Left input); speaker level (stereo 5-way binding post)
    Input Impedance Line level: 20kΩ unbalanced; speaker level: 220Ω
    Input Power 120V, 60Hz AC via IEC 2-wire receptacle with integral fuse holder
    Power (Mains) Fuse 3A 250V GMA-style fast blow
    Power Modes Auto signal-sensing (auto-off delay ~10 minutes) or always-on
    Dimensions 15-3/8"W x 17-5/16"H x 14-3/4"D (390 x 440 x 375mm, without feet)
    Weight 43 lbs (19.5 kg)
    Shipping Dimensions 21"W x 20"H x 20"D (533 x 508 x 508mm)
    Shipping Weight 51 lbs (23.2 kg)

    Adjustable Feet

    The PS-12 ships with 4 spiked feet and 4 rubber feet, attached with tool-less knurled jam nuts. These can be arranged in either a 3-point triangular or 4-point square pattern using the 5 threaded inserts on the cabinet bottom.

    Manufacturer: OEM Systems Company. Phone (775) 355-0405, Fax (800) 291-0561, www.oemsystems.com, info@oemsystems.com
