    SANUS SULL11B1 Fixed Position Wall Mount — Technical Drawing

    September 08, 2026 1 min read

    Technical drawing (CAD cutsheet) for the SANUS SULL11B1 fixed-position, low-profile TV wall mount.

    💾 Download Original PDF 🛒 View Product
    Full text manual (for reference)

    Technical drawing (CAD cutsheet) for the SANUS SULL11B1 fixed-position, low-profile TV wall mount.

    Overview

    The SULL11B1 is a fixed-position (non-articulating) low-profile wall mount, consisting of two vertical wall rail brackets connected by a horizontal top rail with a sliding, adjustable mounting bar system. It's designed to sit close to the wall with minimal standoff depth, making it ideal for a flush, space-saving TV installation while still allowing slight wall clearance for cable routing.

    Key Dimensions

    Adjustable mounting width 65mm to 825mm (horizontal adjustment range for sliding brackets)
    Vertical bracket length 22.0 ± 0.49 in (558 ± 12.5 mm)
    Supported VESA width options 12.0 in (305 mm) to 35.3 in (896 mm)
    Vertical adjustment points 100mm, 200mm, 300mm, 400mm, 500mm along the rail
    Mounting holes 20x ⌀1.0 in (25mm) holes, 0.1 in (4mm) typical corner radius
    Wall standoff/profile depth 0.55 in (14.1 mm) at the wall bracket; 3.08 in (78.3 mm) at the bottom bracket, with an 8° angle in the side profile

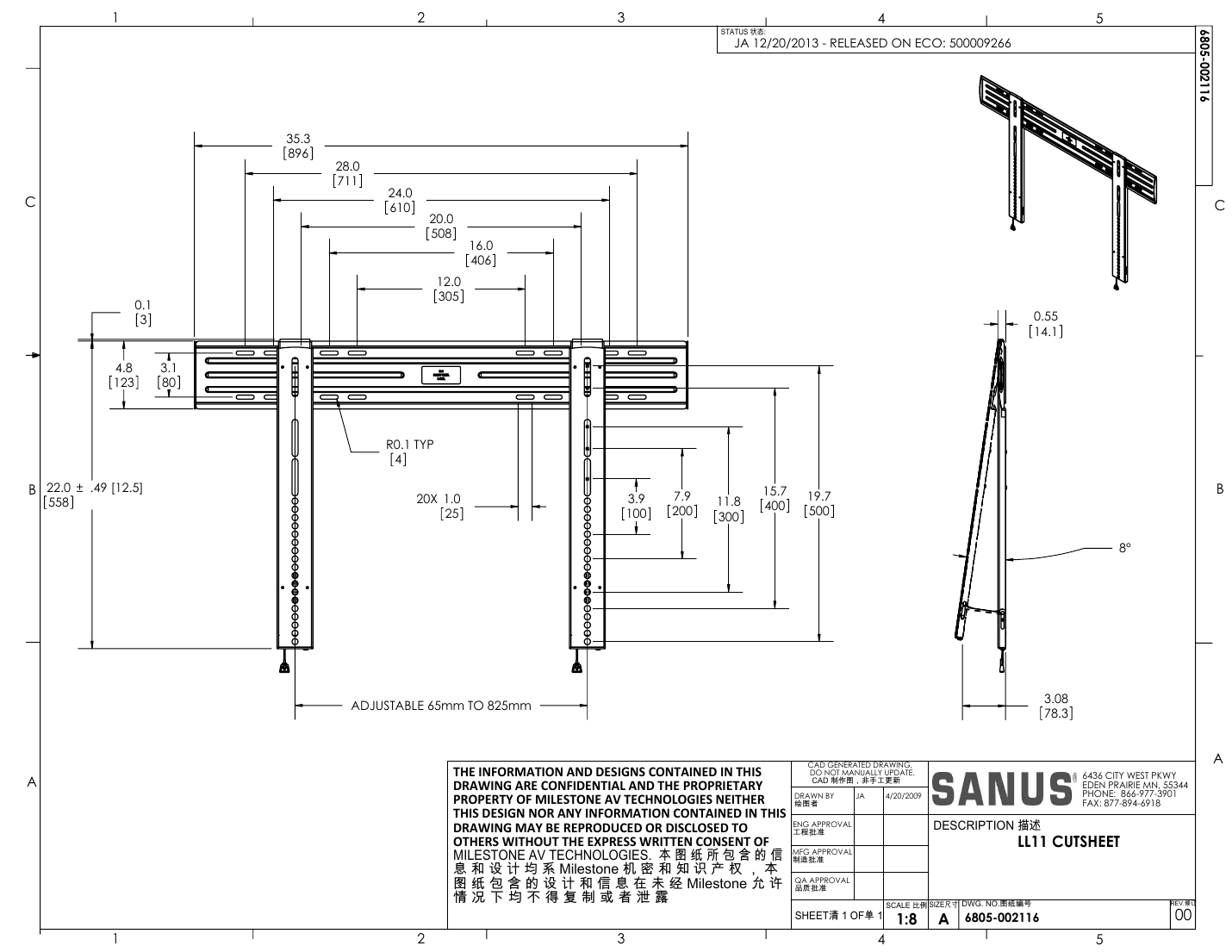

    SANUS SULL11B1 fixed position wall mount CAD technical drawing showing dimensions, hole pattern, and adjustable mounting range
    Full CAD cutsheet (Dwg. No. 6805-002116) showing overall dimensions, hole pattern, and adjustable mounting range.

    Notes

    Drawing scale 1:8, sheet size A, revision 00. This is a manufacturer engineering drawing intended for compatibility verification (VESA hole pattern and mounting width) rather than a consumer installation guide.

    Manufacturer: Milestone AV Technologies (SANUS), 6436 City West Pkwy, Eden Prairie, MN 55344 · 866-977-3901
