    Optex TC-10U Wireless Door/Window Transmitter — User Manual

    August 31, 2026 2 min read

    User manual for the Optex TC-10U wireless door/window transmitter, part of the Wireless 1000 Annunciator series.

    💾 Download Original PDF 🛒 View Product
    Full text manual (for reference)

    Quick reference for the Optex TC-10U wireless door/window transmitter, part of the Wireless 1000 Annunciator series. This manual is diagram-heavy — the full instruction pages are included below as images along with a summary of key info.

    Overview

    • Compatible with Optex RC-10U / RG-10U receivers
    • Weatherproof, IP54-rated for outdoor/indoor door and window installation
    • 8+ million transmission codes to avoid interference/duplication
    • Powered by a CR123 lithium battery
    • Maximum transmission range: 700 ft. in open field (actual range will be lower indoors/with obstructions)

    Safety Cautions

    • Suitable for outdoor use, but observe the rated temperature/humidity limits.
    • Transmission range is affected by walls, metal objects, and other RF interference.
    • Replace the battery when the low-battery indicator appears, using a CR123 lithium battery only.

    Installation Reference

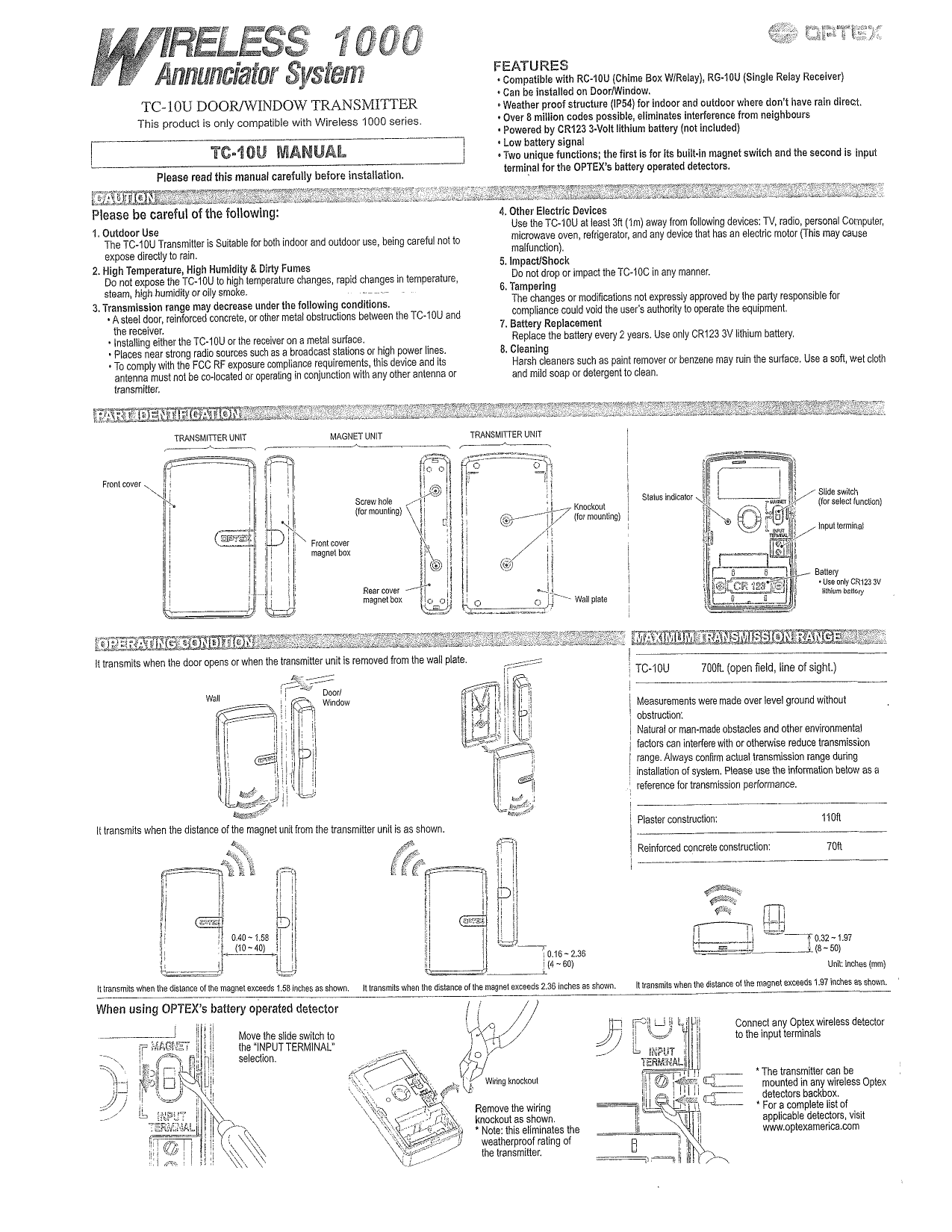

    Optex TC-10U transmitter parts diagram, features, and safety cautions
    Page 1: Features, safety cautions, part identification, and operating condition diagrams

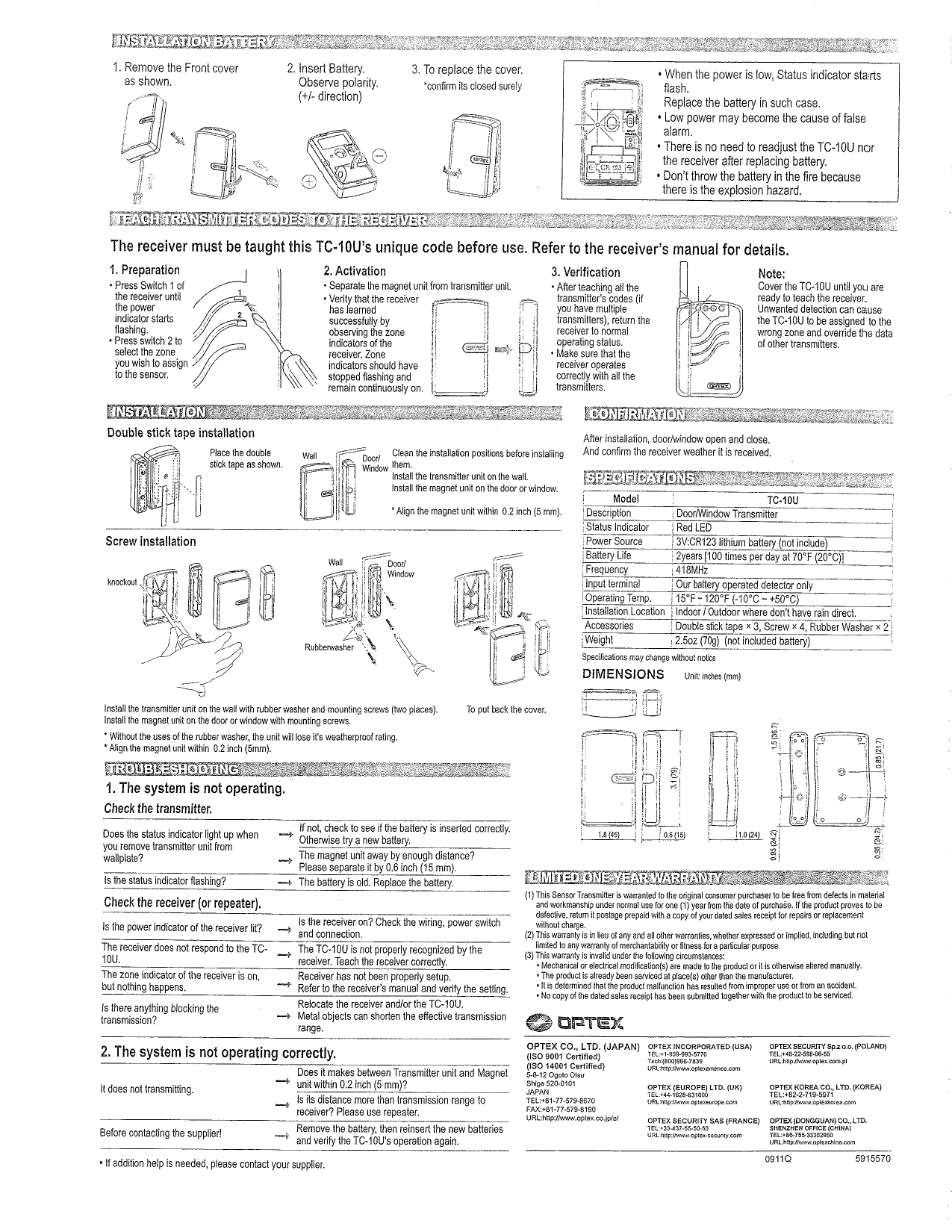

    Optex TC-10U battery installation, teaching codes, mounting, dimensions, troubleshooting, and warranty
    Page 2: Battery installation, teaching the transmitter code to the receiver, mounting methods, specifications, troubleshooting, and warranty

    Installation Overview

    1. Install the battery in the transmitter per the diagram (page 2).
    2. Teach the transmitter's code to the RC-10U/RG-10U receiver (learning mode).
    3. Mount using either double-stick tape or the included screws — align the transmitter and magnet units per the operating condition diagram (page 1).
    4. Confirm operation by opening/closing the door or window and checking the receiver response.

    Troubleshooting

    • If the receiver doesn't respond, re-teach the transmitter code to the receiver.
    • Check magnet-to-transmitter distance is within spec (see operating condition diagram).
    • Verify the battery is fresh and correctly installed.
    • If range is marginal, reposition the receiver or transmitter to reduce obstructions/interference.

    See the full downloadable PDF for complete dimensional diagrams and the full specifications table.
