    Lithe Audio — All-in-One Wireless Speaker Systems Brochure (North America)

    September 08, 2026 4 min read

    Full product line brochure for Lithe Audio all-in-one wireless speaker systems: Pro Series Wi-Fi, Bluetooth, Multi-Room Wi-Fi ceiling speakers, the Wireless Micro Sub, passive speakers, and outdoor Garden Rock speakers.

    💾 Download Original PDF
    Full text manual (for reference)

    Overview brochure covering the full Lithe Audio all-in-one wireless speaker lineup: Pro Series Wi-Fi ceiling speakers, Bluetooth ceiling speakers, multi-room Wi-Fi ceiling speakers, the Wireless Micro Sub, passive ceiling speakers, and outdoor/garden speakers.

    All-in-One System Concept

    Lithe Audio's ceiling and garden speakers integrate the amplifier, wireless receiver, and speaker into one unit — no separate amp or cable-running required. Each speaker just needs power (from a lighting circuit or a standard plug) and everything else is built in. Speakers are controlled from a phone, tablet, or voice assistant (Alexa, Google Home, Siri).

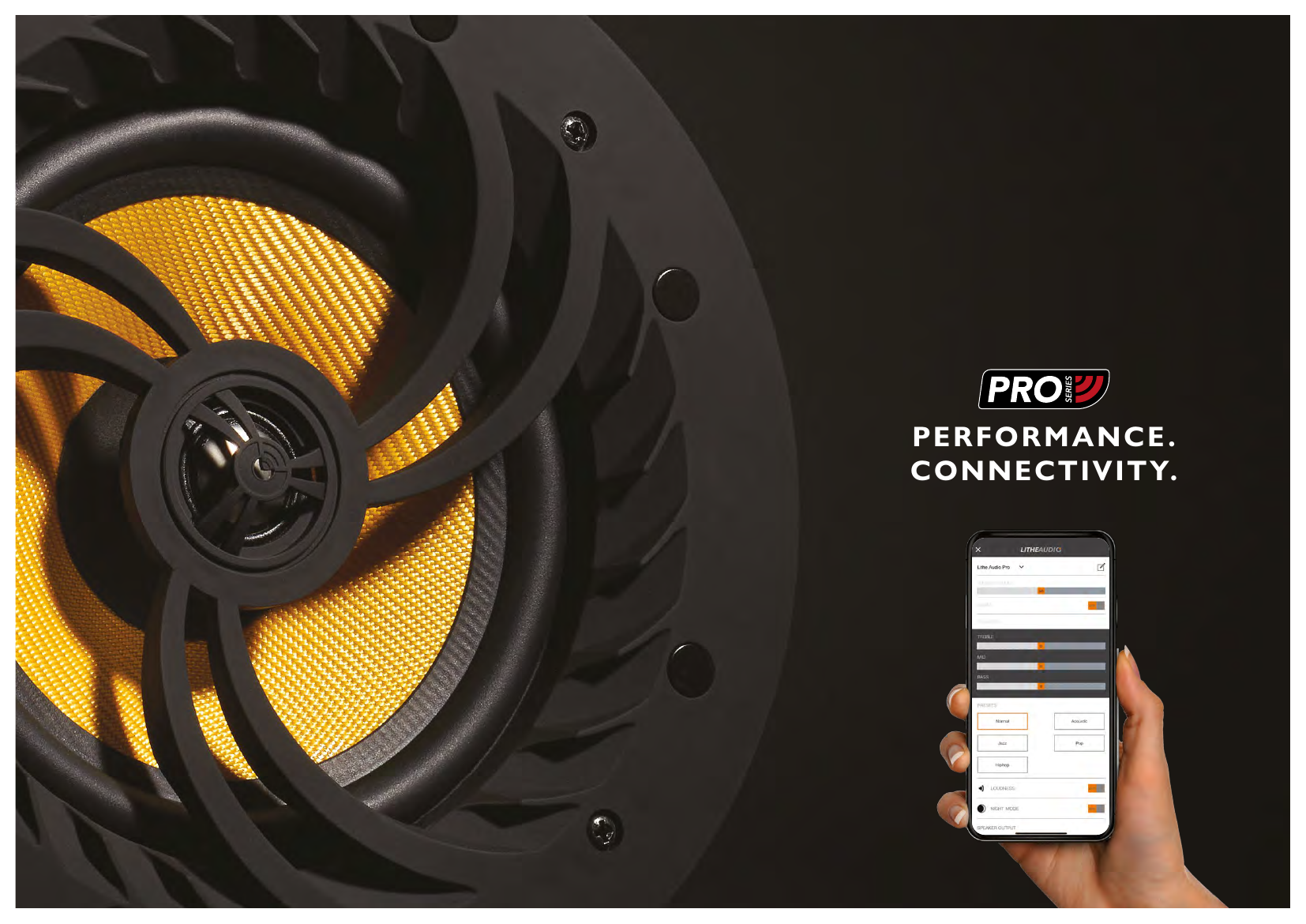

    Lithe Audio Pro Series ceiling speaker close-up with app-based DSP control screenshot showing Treble, Mid, Bass sliders and EQ presets
    Pro Series Wi-Fi ceiling speaker with app-based DSP (Treble/Mid/Bass, EQ presets, Loudness, Night Mode)

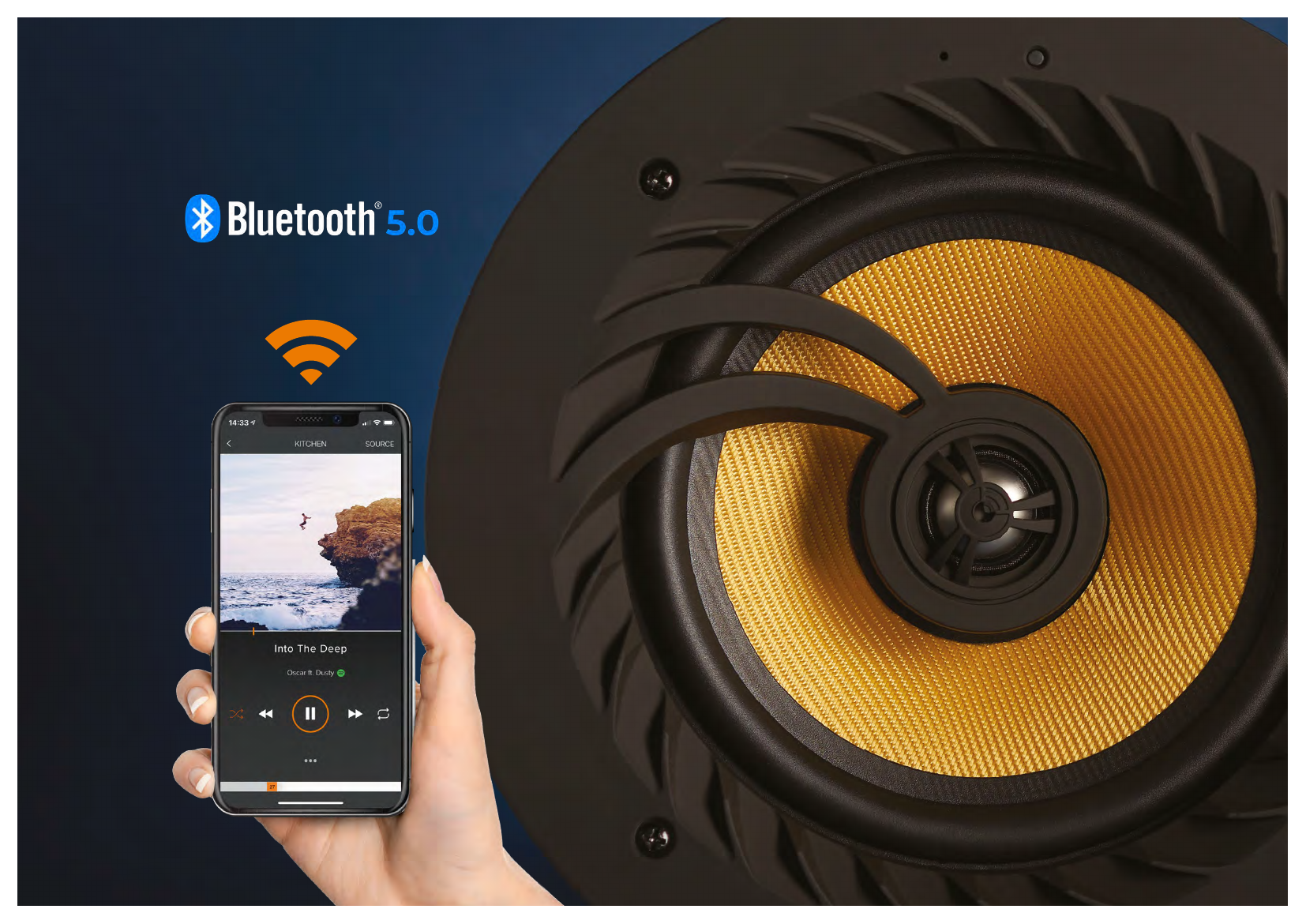

    Lithe Audio Bluetooth ceiling speaker close-up with app screenshot showing zone playback and track controls
    Bluetooth 5.0 ceiling speaker with zone playback control via the Lithe Audio app

    Product Line Comparison

    Series Best For Connectivity Power
    Bluetooth Ceiling Speakers Single-room use — kitchens, bathrooms, hotel rooms Bluetooth 5.0, 30m range, works with Alexa/Google, RCA input Lighting circuit or plug — 50W RMS (2x25W)
    Multiroom Wi-Fi Ceiling Speakers Music across multiple rooms, app-controlled Wi-Fi 2.4/5GHz, AirPlay 2, Chromecast built-in Lighting circuit or plug — 60W RMS (2x30W)
    Pro Multi-Room Ceiling Speakers Smart home integration, commercial projects Wi-Fi, AirPlay 2, Chromecast, Ethernet, PoE++, optical, Control4/Control System drivers, WiSA bolt-on Lighting circuit, plug, or PoE++ — 60W RMS (2x30W)
    Wireless Micro Sub Adding bass to any Chromecast/Lithe system Wi-Fi, AirPlay 2, Chromecast, Ethernet in/out 70W RMS @ 4 ohm

    Pro Series Wi-Fi Ceiling Speaker — Highlights

    • Powerful 60W RMS Class D amplifier tuned for ceiling installation, 192kHz/24-bit high-resolution audio
    • App-based DSP: calibrate Treble, Mid, and Bass individually from your phone
    • Voice control via Alexa, Google Home, or Siri
    • Optional bolt-ons: WiSA module (wireless Dolby Atmos/5.1/7.1 home cinema via SoundSend transmitter) and PoE++ module (up to 70W over network cable)
    • Wired or wireless connectivity: dual-band 5GHz/2.4GHz Wi-Fi or hardwired Ethernet
    • Won Best New Hardware, CEDIA EMEA Awards 2020

    Pro Series Speaker Spec: Sound Quality THD+N<0.009%, 55Hz–20kHz (±3dB); RMS Power 60W (2x30W); Impedance 8Ω nominal; Sensitivity 90dB (1W/1m); Woofer 6.5" Woven Glass Fibre/Polypropylene cone (IP44 versions available); Tweeter 0.75" Titanium; Power input 100–240V 50/60Hz/2A; operating temp 0–40°C.

    Pro Series SKUs: 06500/06510 (single/pair Wi-Fi), 06501/06511 (single/pair IP44 bathroom), 06514/06515 (single/pair with PoE), 06520 (PoE Adaptor Module), 06521 (WiSA Module Bolt-on), 06530 (WiSA SoundSend Transmitter), 06512/06513 (Pro Ceiling Speaker + WiSA Module Atmos .2/.4 kits).

    Bluetooth Ceiling Speaker — Highlights

    • Latest Bluetooth 5.0 technology, 30m wireless range
    • Amplifier and Bluetooth receiver built in — only power required
    • Low-latency aptX audio for connecting to a TV
    • RCA input for hardwiring a turntable, PC, or legacy device
    • Voice control via Alexa or Google Home; frameless design protrudes only 3mm; magnetic grille removable for cleaning or repainting
    • Lithe-Link feature allows connecting up to 3 master speakers + their passive/slave pairs (6 speakers total) for larger/open-plan rooms

    Bluetooth Speaker Spec: Sound Quality THD+N<0.009%, 55Hz–20kHz (±3dB); RMS Power 50W; Impedance 8Ω nominal; Sensitivity 90dB; Woofer 6.5" Woven Glass Fibre/Polypropylene cone (IP44 bathroom-rated versions available); Tweeter 0.75" Titanium.

    Bluetooth SKUs: 03200/03201 (single/pair), 03210/03211 (IP44 bathroom single/pair), 03202 (4-speaker 1-zone kit), 03203 (6-speaker 1-zone kit).

    Multi-Room Wi-Fi Ceiling Speaker — Highlights

    • App control via iOS/Android with drag-and-drop zoning
    • Only AirPlay 2 and Chromecast-certified ceiling speaker on the market per manufacturer
    • Streams via AirPlay 2, Chromecast, or Bluetooth; NAS drive access via DLNA/uPnP
    • 60W RMS Class D amplifier built in; RCA input for legacy sources

    Multi-Room SKUs: 06600/06610 (single/pair Wi-Fi), 06601/06611 (single/pair IP44 bathroom).

    Wireless Micro Sub — Highlights

    • Plug-and-play — syncs to home Wi-Fi and groups with Lithe or other brand speakers
    • 4" active driver + 2x 4" passive radiators; full app-based DSP (crossover frequency, phase, volume, gain, low/high pass filter, speaker profile presets)
    • Works with Chromecast, AirPlay 2, Alexa, Google Home; Ethernet data in/out for daisy-chaining
    • Frequency response 40Hz–200Hz @ -10dB; RMS Power 70W @ 4Ω; SKU 01675US

    Passive Ceiling Speakers — Highlights

    For rooms needing amplifier-free coverage or to pair with an existing Lithe Audio active speaker/countertop amp:

    Model SKU Driver Sound Range
    6.5" 2-Way Ceiling Speaker 01556 (single) / 01555 (pair) 6.5" Woven Glass Fibre + 0.75" Titanium tweeter 55Hz–20kHz
    6.5" 2-Way IP44 Ceiling Speaker 01556 / 01555 6.5" Polypropylene + 0.75" Titanium tweeter 55Hz–20kHz
    6.5" Low Profile Passive 01568 6.5" Polypropylene + 0.75" Titanium tweeter 77Hz–20kHz
    3" Spot Ceiling Speaker 01553 3" Woven Glass Fibre + 0.75" Mylar tweeter 130Hz–20kHz
    6.5" Stereo Ceiling Speaker 01554 6.5" Woven Glass Fibre + dual 0.75" Titanium tweeters 55Hz–20kHz

    Garden Rock Outdoor Speaker — Highlights

    • Rock-shaped, weatherproof outdoor Bluetooth speaker with IP56 fibreglass housing
    • Bluetooth v4.0, up to 10m wireless range; works with Google and Alexa; output for a passive slave speaker
    • 60W RMS, 8Ω nominal, 65Hz–20kHz; IP68 outdoor transformer unit; 2-year limited warranty
    • SKUs: 01620 (Bluetooth single), 01621 (Passive single), 01622 (Bluetooth + Passive pair), 01623 (Passive pair)

    Accessories & Spares

    • Round/square speaker grilles (01581 / 01587)
    • 3.5mm jack ground loop isolator (01589), RCA ground loop isolator (01276)
    • Crystal RCA volume controller (01781/01783), Boutique volume controller (01513/01514)
    • Shielded cables: 10m 3.5mm jack-to-jack (01271), 10m phono-to-jack (01255), 10m phono-to-phono (01255)
    • Speaker cable 18GA (01599 10m / 01580 5m), Ceiling speaker 50' power cable extension (01607)

    Certifications

    UL Approved, FCC Certified, CE Approved (models vary by product line — see individual SKU documentation).
