    Jasco Pro™ Series Wi-Fi In-Wall Smart Dimmer (64557) — Specifications

    September 08, 2026 2 min read

    Product specifications for the Jasco Pro™ Series Wi-Fi In-Wall Smart Dimmer (model 64557) — a neutral-wire-required Wi-Fi dimmer with 3-way/4-way support.

    💾 Download Original PDF
    Full text manual (for reference)

    Product specifications for the Jasco Pro™ Series Wi-Fi In-Wall Smart Dimmer (model 64557) — a neutral-wire-required, Wi-Fi connected dimmer switch with multi-way support.

    Specifications

    Power 120VAC, 60Hz
    Signal frequency 2.4GHz
    Maximum load 600W Incandescent, 360W Dimmable CFL/LED
    Range Up to 100 feet from router
    Operating temperature 32-104°F (0-40°C)
    Warranty 5-year limited product warranty

    Requires a neutral wire. Switch must be mounted indoors.

    Design Features

    • QuickFit™ — improved components reduce housing depth by up to 20% compared to previous Wi-Fi models, and eliminate the need for heat tabs.
    • SimpleWire™ — auto line-load sensing terminals support fast installation by detecting line and load wires and configuring the dimmer accordingly. Dual ground ports (offset to avoid switch-box mounting screws) support daisy-chaining in multi-switch setups.
    • Can be included in multiple Groups, Scenes, and automations.
    • Operates in either switch or dimmer mode.
    • Double-tap and triple-tap scene activation directly from the device.
    • Set upper and lower brightness levels to eliminate bulb flicker.
    • Turn the device on/off manually or adjust brightness with the JascoPro™ Series App.
    • Single-pole installation, or use with up to four Jasco model 46560 Add-on switches in 3- or 4-way connections (traveler wire required for multi-pole installation), or connect with an existing 3-way switch.
    • Works with all LED, CFL, halogen, and incandescent bulbs.
    • Blue LED indicates automatic/manual pairing mode status, and can indicate switch location in a dark room (4 adjustable brightness settings).
    • Uses a standard Decora wall plate (not included).
    • Interchangeable paddle switch — white and light almond paddles included in the package.
    • LED status can be manually inverted, always-off, or always-on.
    • Inline traveler circuit protection.

    Wiring Diagrams

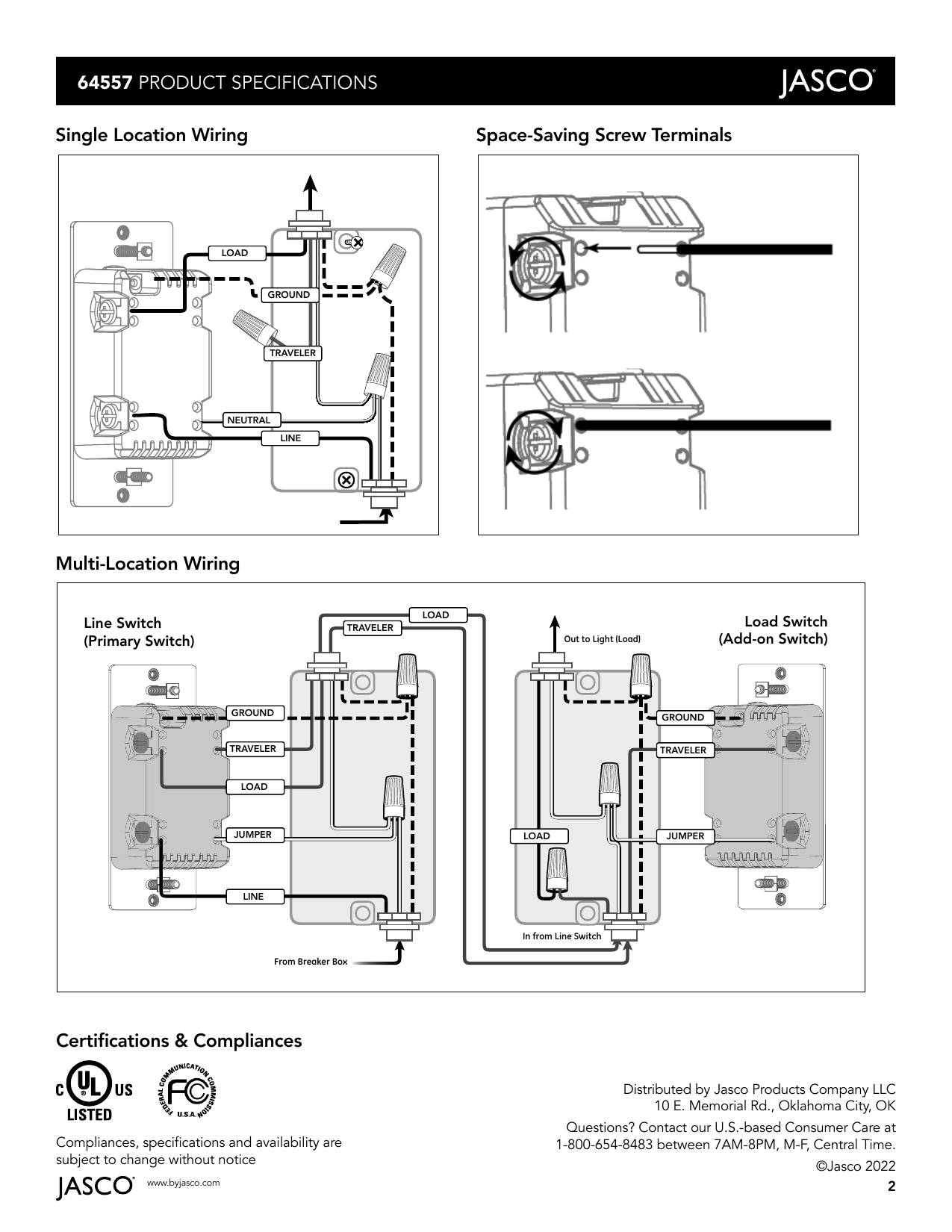

    Jasco 64557 dimmer wiring diagram — single location and multi-location (3-way) wiring with screw terminal detail
    Single-location wiring, space-saving screw terminal detail, and multi-location (3-way) wiring diagram

    The screw terminals are labeled Line, Load, Neutral, Ground, and Traveler. In a single-pole installation, connect Line (Hot), Load, Neutral, and Ground. For multi-location (3-way) installs, the Line Switch (primary) and Load Switch (add-on) connect via Traveler and Jumper wires, with power routed from the breaker box through the Line Switch and out to the light (Load).

    Installation Recommendations

    • Insert the wire into the terminal port and tighten the screw — do not wrap the wire around the screw.
    • Indoor use only.
    • Wall plates are sold separately.
    • Trilingual instruction manual included (English, French, Spanish).

    Support & Compliance

    Distributed by Jasco Products Company LLC, 10 E. Memorial Rd., Oklahoma City, OK. Consumer Care: 1-800-654-8483, 7AM-8PM M-F Central Time. www.byjasco.com. ©Jasco 2022. Compliances, specifications, and availability are subject to change without notice.
