    Jasco In-Wall Toggle Add-On Switch 46561 — Product Specifications

    September 08, 2026 2 min read

    Product specifications for the Jasco In-Wall Toggle Add-On Switch, Model 46561.

    💾 Download Original PDF
    Full text manual (for reference)

    Product specifications for the Jasco In-Wall Toggle Add-On Switch, Model 46561 — a companion switch for multi-location (3-way to 6-way) wiring with compatible Jasco Zigbee and Z-Wave primary switches. Not a standalone switch; does not directly control the load.

    Specifications

    Spec Value
    Power 120-277VAC, 60Hz
    Operating Temperature 32-104°F (0-40°C)
    Environment Indoor use only

    Design Features

    • 46200 — For use in 3, 4, 5, or 6-way wiring configurations with:
      • Jasco Zigbee 3.0 models: 43084 and 43090
      • Jasco 500 Series Z-Wave models: 46202 and 46204
      • Z-Wave Commercial Grade models: 43106 and 43107
      • Zigbee 3.0 Commercial Grade models: 43122, 43124, and 43090
    • Requires wiring connections for Neutral, Traveler, and Ground.
    • QuickFit™ — improved components reduce housing depth by up to 20% compared to previous models, and eliminate the need for heat tabs — ideal for older-style switch boxes, multi-gang configurations, or any space-limited application.
    • SimpleWire™ — dual ground ports, offset to avoid switch-box mounting screws, support daisy-chaining in multi-switch setups.
    • Uses a standard toggle wall plate (wall plate not included). Toggle style matches existing switches.
    • Maximum number of Add-On Switches connected to a primary switch: 4.
    • Maximum traveler wire distance: 300 ft., interconnected between 4 Add-On switches; no more than 75 ft. between each switch.
    • Maximum traveler wire distance between the primary switch and one Add-On switch: 200 ft.
    • Not for direct control of load (not a standalone switch).

    Multi-Location Wiring

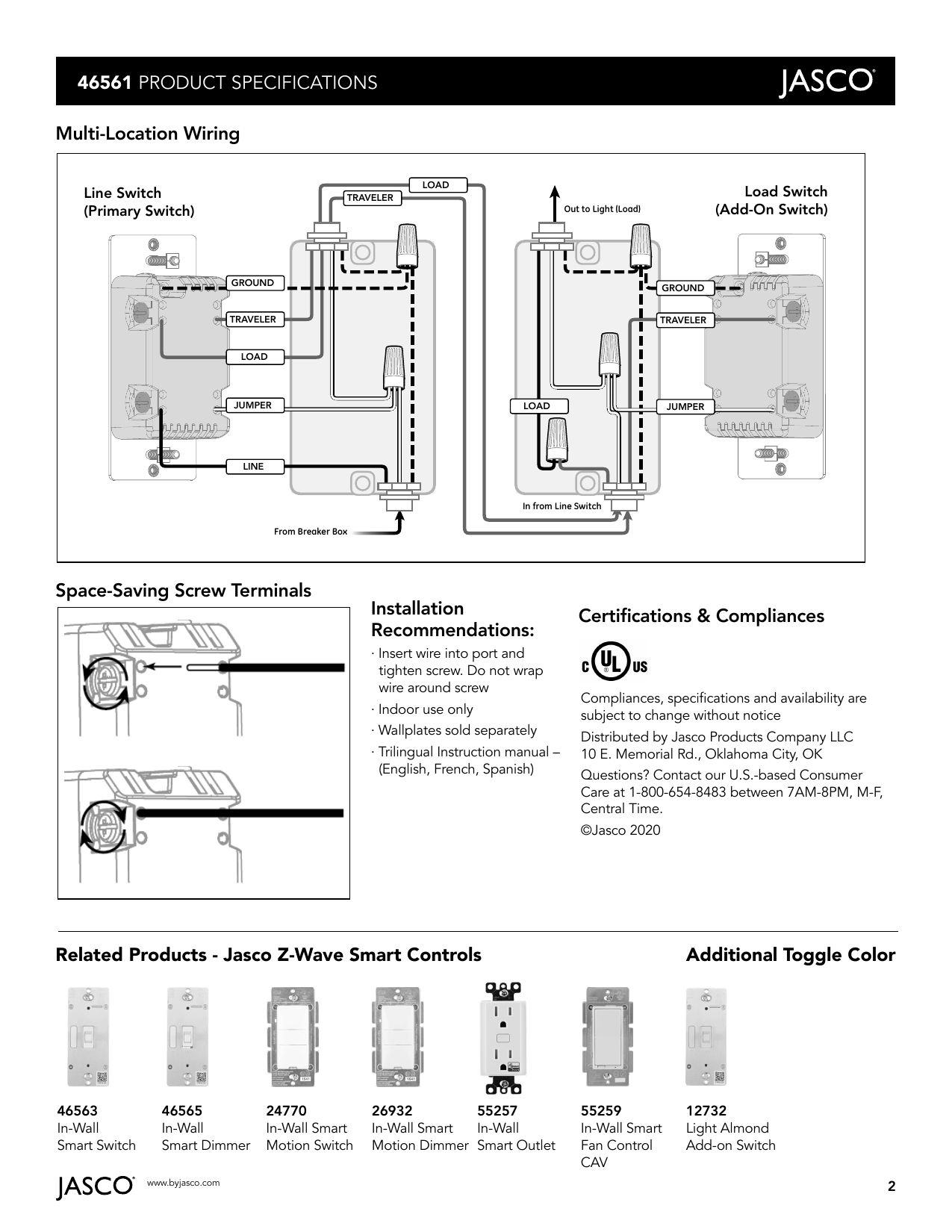

    Multi-location wiring diagram showing Line Switch (Primary) and Load Switch (Add-On) with Ground, Traveler, Load, Jumper, and Line terminal connections
    3-way wiring: power flows from the breaker box into the Line Switch (Primary Switch), across the Traveler wire to the Load Switch (Add-On Switch), then out to the light fixture (Load).

    The primary switch (Line Switch) receives power directly from the breaker box on its LINE terminal and connects to the Add-On Switch via the TRAVELER terminal. The Add-On Switch (Load Switch) receives the traveler signal and outputs to the light fixture's LOAD terminal. Both switches share a GROUND connection, and each has a JUMPER connection for internal wiring.

    Space-Saving Screw Terminals

    Installation Recommendations

    • Insert wire into the port and tighten the screw — do not wrap wire around the screw.
    • Indoor use only.
    • Wallplates sold separately.
    • Trilingual instruction manual included (English, French, Spanish).

    Certifications & Compliances

    Compliances, specifications, and availability are subject to change without notice. Distributed by Jasco Products Company LLC, 10 E. Memorial Rd., Oklahoma City, OK. Questions? Contact U.S.-based Consumer Care at 1-800-654-8483, 7AM-8PM M-F Central Time. © Jasco 2020.
