HAI Model 71A00-1 HLC Load Control Module — Installation Manual

Installation manual for the HAI (Home Automation, Inc.) Model 71A00-1 HLC Load Control Module — a remote-controlled heavy-duty switch for operating 120VAC or 240VAC electrical appliances.

Description

The Model 71A00-1 HLC Load Control Module is a remote-controlled heavy-duty switch used to operate 120VAC or 240VAC electrical appliances such as water heaters, pool pumps, baseboard heaters, and branch lighting loads. It can be controlled locally via a Decora-style rocker switch, or remotely via a UPB powerline signal. It also includes a manual disconnect switch.

The Model 71A00-1 contains a 35A00-3 HLC 600W Non-Dimming Switch internally — refer to the instruction sheet included with the 35A00-3 for additional safety, operation, and programming details.

Installation

Install according to Figure 1 (120VAC devices) or Figure 2 (240VAC devices), below. Caution: use the manual disconnect switch when servicing.

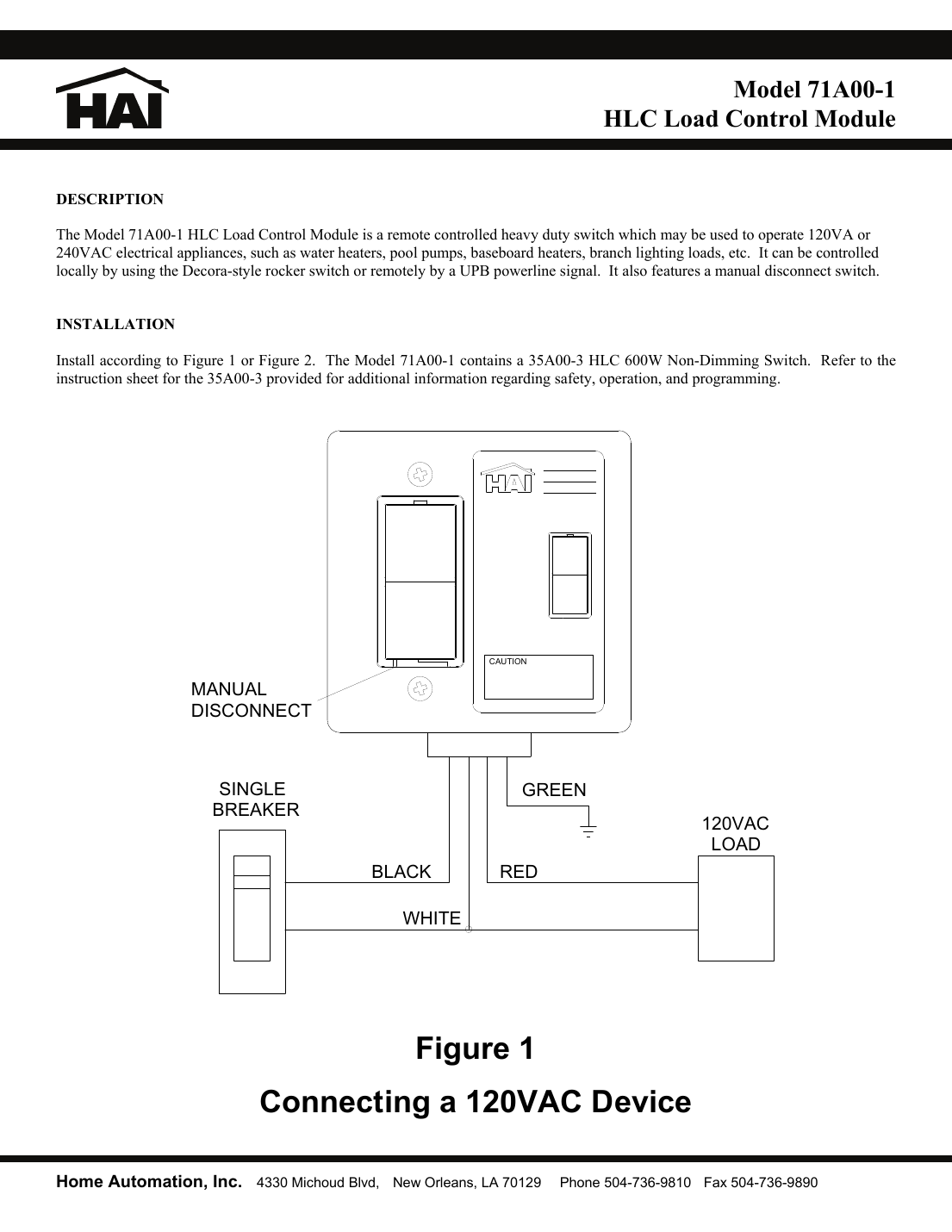

Connecting a 120VAC Device (Figure 1)

Uses a single breaker. Wire the Black (hot), White (neutral), and Green (ground) conductors from the breaker into the module, with the load connected via Black/Red/White to the 120VAC device.

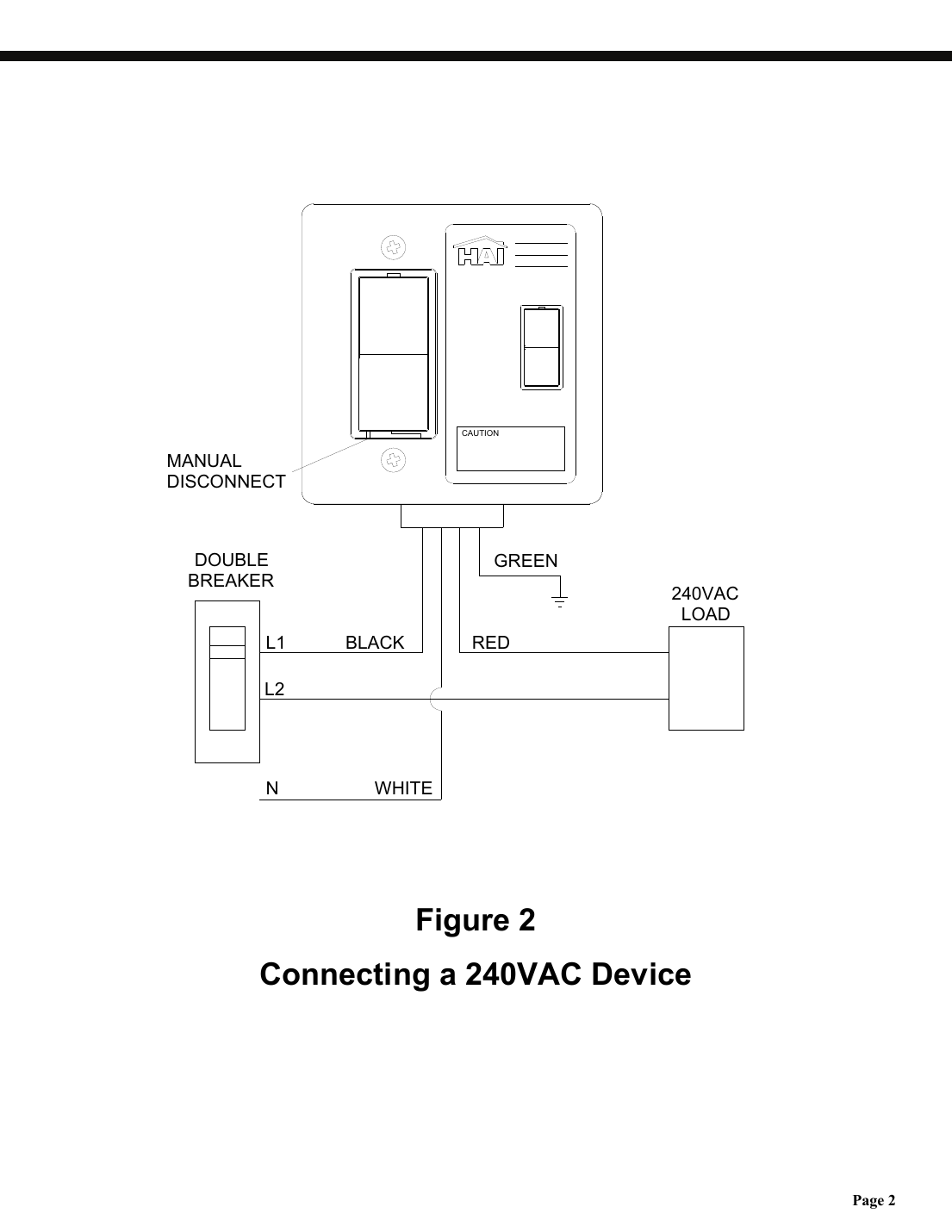

Connecting a 240VAC Device (Figure 2)

Uses a double-pole breaker with L1, L2, and N terminals. Wire Black (L1), Red (L2), White (N), and Green (ground) from the breaker into the module, feeding the 240VAC load.

Manufacturer Contact

Home Automation, Inc. (HAI)
4330 Michoud Blvd, New Orleans, LA 70129
Phone: 504-736-9810  |  Fax: 504-736-9890
