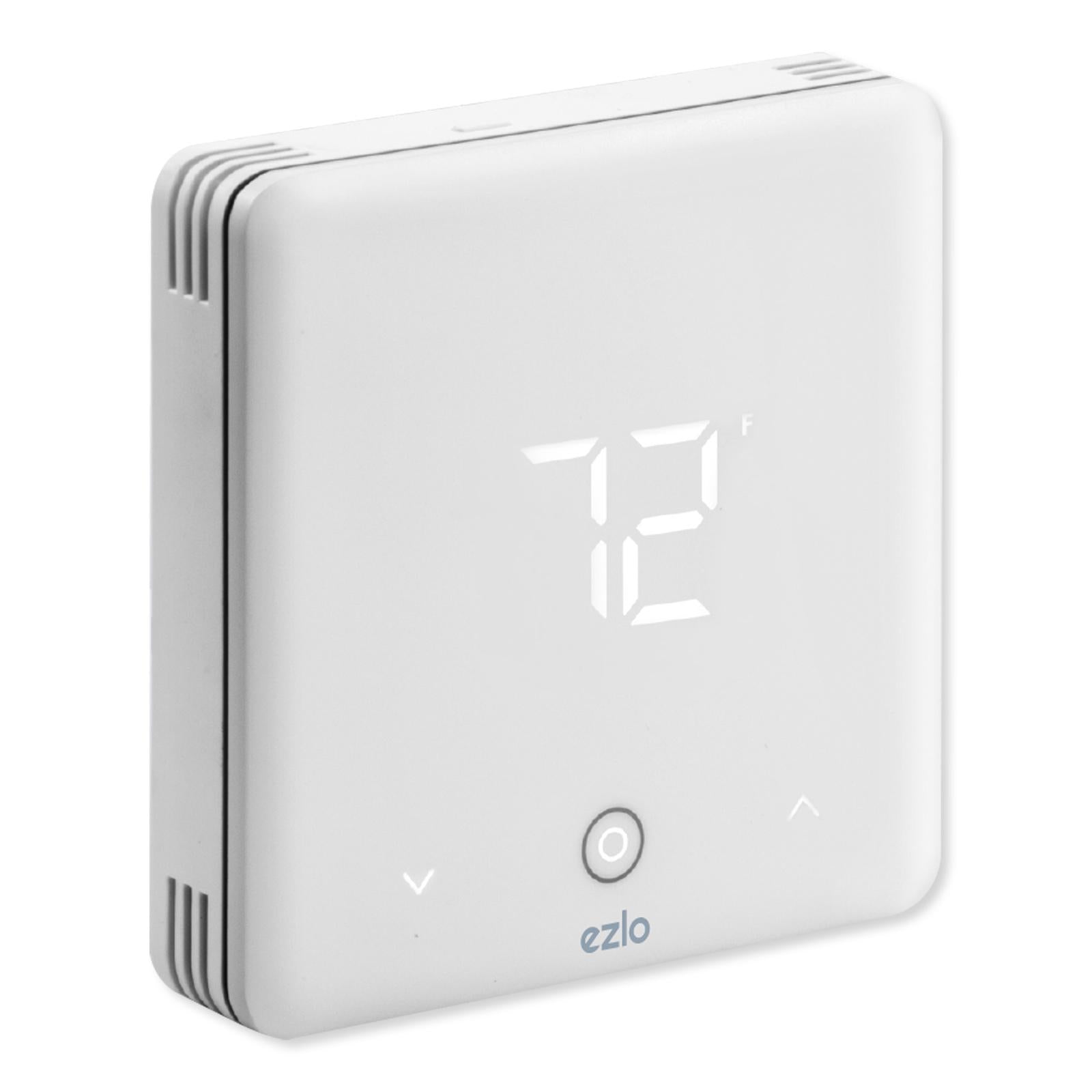

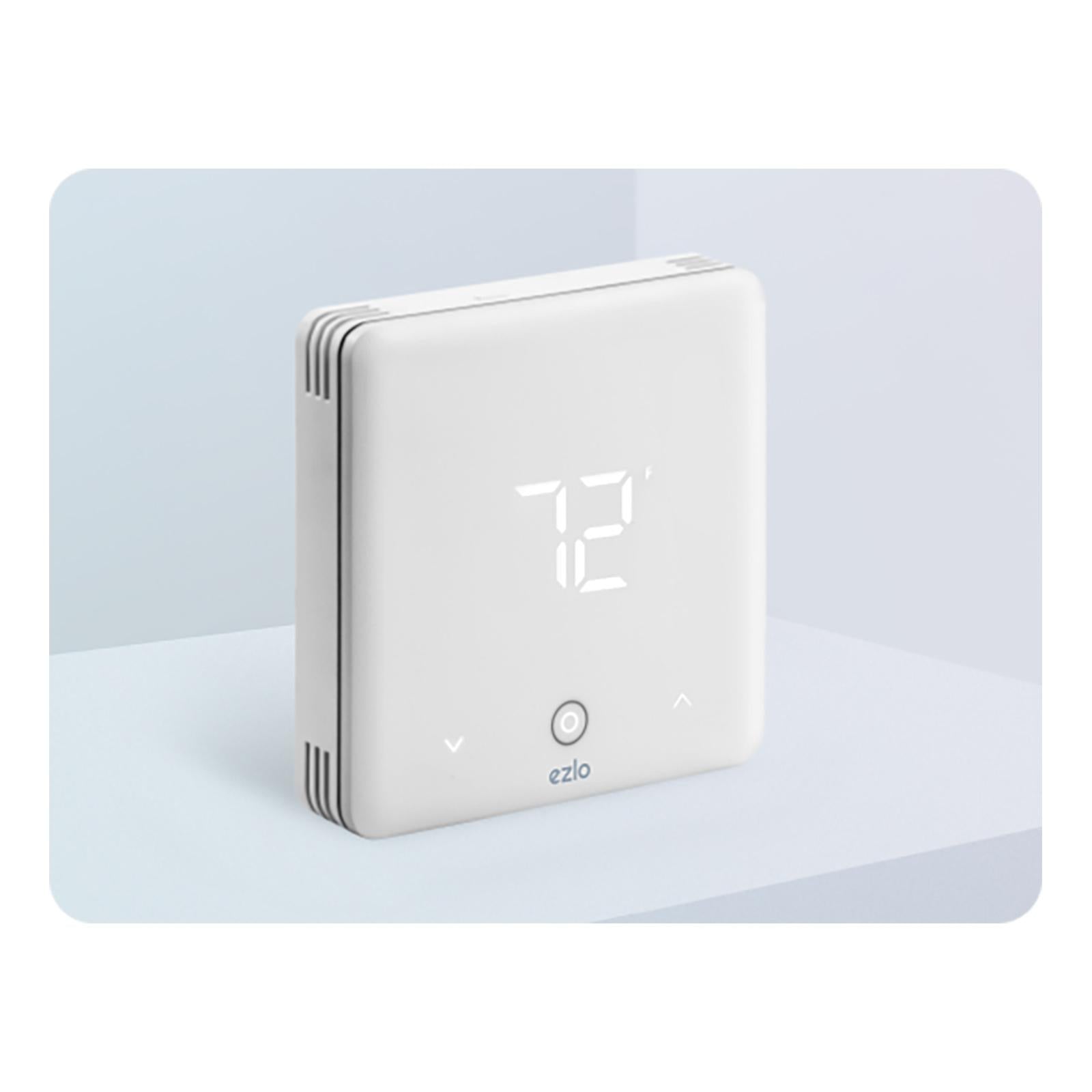

Ezlo Z-Wave Plus Smart Thermostat, 800 Series

Use a Smart Thermostat To Control Indoor Comforts

Add stylish and convenient control over your HVAC system with the Ezlo Z-Wave Plus Smart Thermostat, 800 Series. This touchscreen thermostat offers a stylish interface and simple controls to change and maintain temperature in your home or office. The smart thermostat's LED screen lights up when in use and turns off automatically when not in use to save power. Control the Ezlo Smart Thermostat with simple one-touch controls on the thermostat, or remotely from your smart device via Z-Wave connections. This model includes Z-Wave 800 certification, which promises compatibility with all existing Z-Wave devices, plus extended wireless relay range, three layers of encryption, faster operation, and longer battery life compared to older Z-Wave versions. The Thermostat can also be included into an existing Z-Wave network to work with other Z-Wave devices in smart scenes to further automate and enhance your smart home.

• Z-Wave 800 connected thermostat works with single and multi-stage HVAC systems and heat pump systems
• Controls heating, cooling, and fan modes
• Built-in temperature sensor measures indoor ambient temperature
• Set temperature schedules throughout the week with or without inclusion into a Z-Wave network
• Remotely adjust settings via the MiOS mobile app to save energy and money
• Optionally powered by four (4) AAA batteries
• Easily include into a Z-Wave Plus network for scheduled automations and integrations with other smart devices

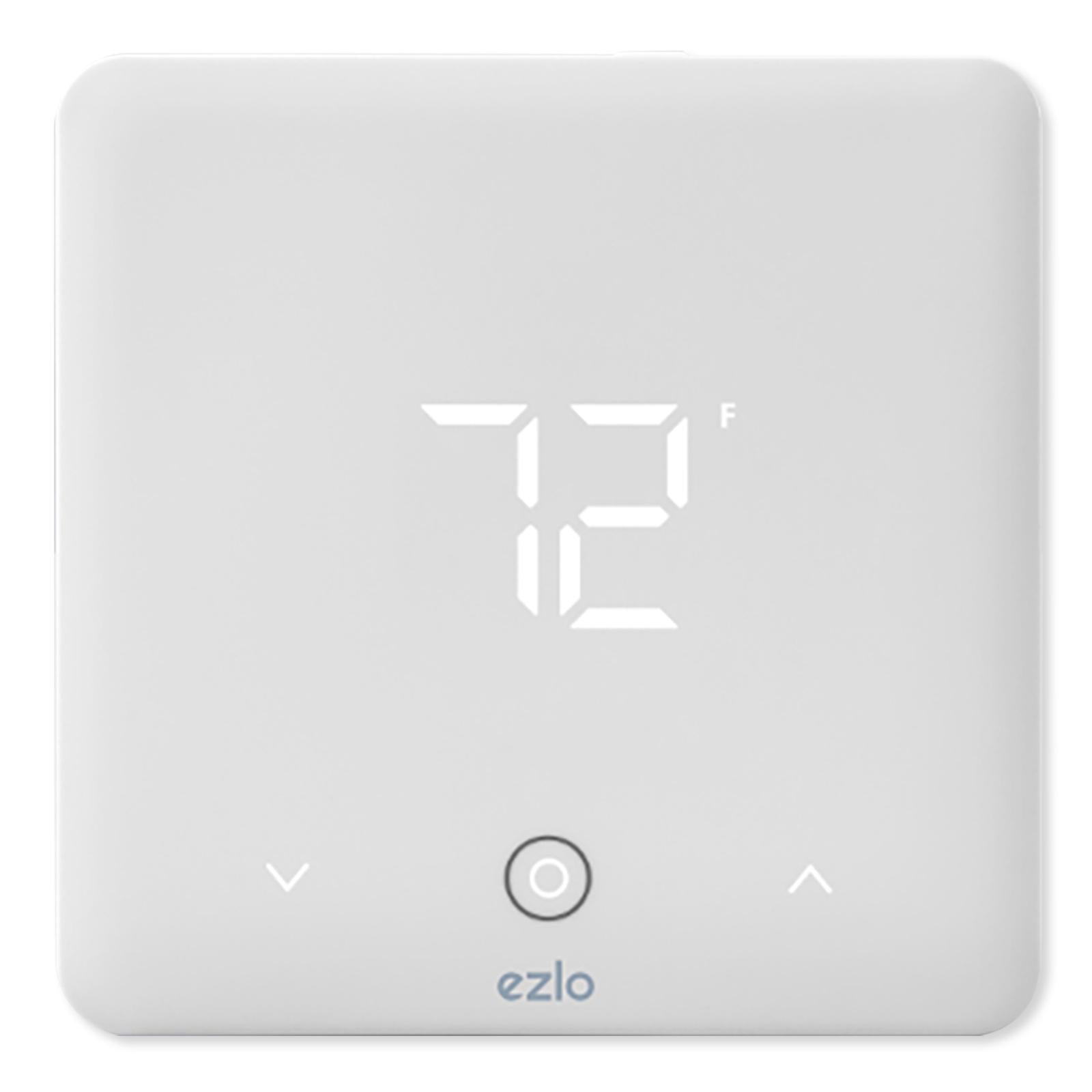

The Ezlo Z-Wave Plus Smart Thermostat offers simple but intuitive touch controls on its backlit LED touchscreen. The current temperature sits in the middle of the screen. Raise or lower your target temperature with the up and down arrows or access settings with the center function button at the bottom of the screen. Program unique temperature set points for every day of the week based on your personal schedule. The Smart Thermostat provides 4 time periods to set per day to ensure optimal comfort levels and maintain energy efficiency. All of these settings can be adjusted from the thermostat or by using your smart mobile device through the MiOS mobile app.

Powerful & Intuitive User Interface

Control the Ezlo Smart Thermostat with Z-Wave Hub with the MiOS app for iOS and Android mobile devices. The MiOS app, along with the MiOS web browser Dashboard, bring all of your connected devices into a single user interface, making initial setup, device inclusion, and scene configuration easy to accomplish.

• Individually configure and manually control any connected device from your smartphone or computer
• View the status and energy consumption of all connected devices
• Customize your dashboard to access favorite or recently used devices or settings
• Program one connected device to trigger another, or schedule automatic events based on time of day, sunrise/sunset, etc using MiOS Meshbots
• Receive mobile alerts when devices or pre-programmed scenes are triggered
• Control compatible with Amazon Alexa and Google Home

Installation Details

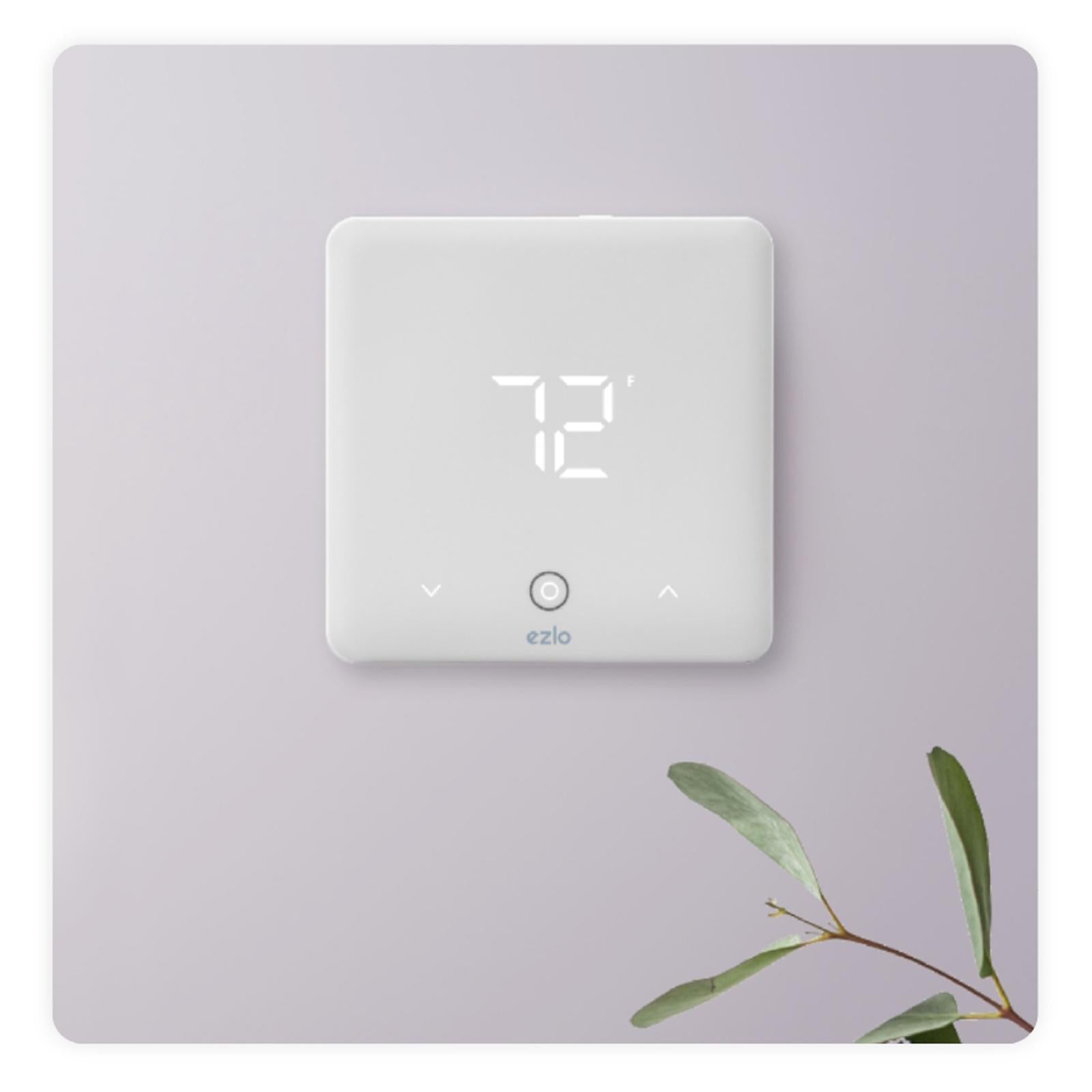

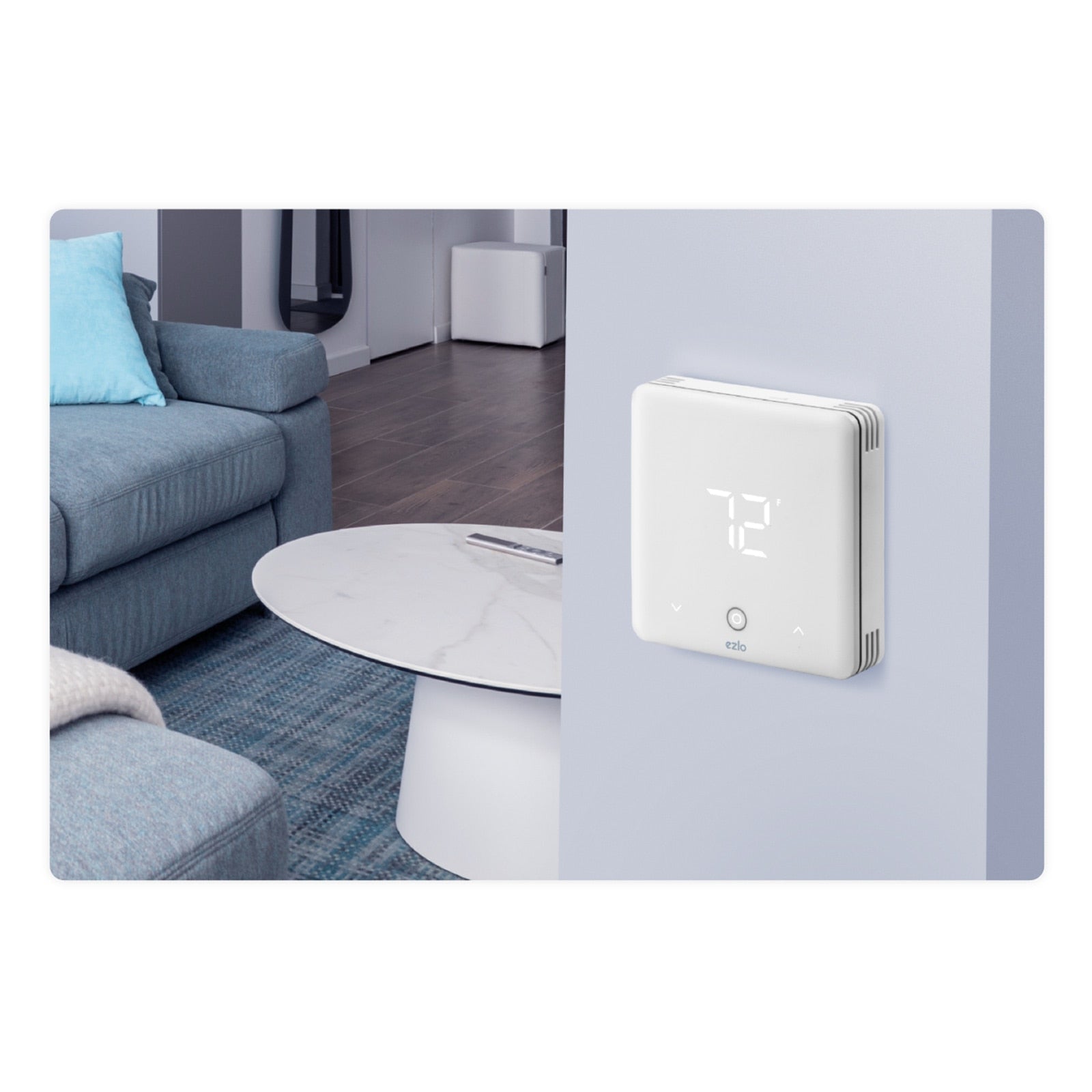

The Ezlo Z-Wave Plus Smart Thermostat, 800 Series mounts onto walls, replacing existing thermostats or as part of a new construction. The Ezlo Smart Thermostat mounts to the wall with the included backplate and mounting screws and wires to the HVAC system.

Z-Wave Plus v3 Certification

Z-Wave Plus v3 is an upgraded Z-Wave certification program to help you identify products that take advantage of the latest Z-Wave hardware platform, also known as 800 Series or Gen8 Z-Wave. Z-Wave Plus v3 compatible devices include extended wireless relay range up to 1300 ft/400m, three layers of encryption, faster operation, and longer battery life.

Contents

• Thermostat
• Base Plate
• (4) Wall Anchors
• (4) Wall Mounting Screws
• (2) Base Plate Securing Screws

NOTE: Z-Wave compatible gateway or system hub required, sold separately.

Ezlo Aims To Connect Everything

Ezlo's goal is to provide automated solutions to everyday tasks by delivering innovative smart devices into your home. With products that promote wide compatibility and connectivity with a multitude of technologies and manufacturers, including Ezlo and Vera Control, Ezlo aims to make home automation more accessible and easier to improve upon.

• Manufacturer Part #: EZL-TSTAT-US
• UPC: 850010803074
• Power Supply: AC/DC24V / 4*AAA Dry Battery (device will enter low power working state)
• Application Range: Gas/Fuel Boiler, Electric Heating, Water Heating, Heat Pumps & more
• Frameless Display: Tempered Glass +PC+ABS
• Self-Consumption: < 1W
• Resistive Load: < 1A
• Temperature Setting Range: 32~104° F (0 ~ 40°C)
• Precision: 0.1°C (1 °F)
• Enclosure: Tempered Glass+PC+ABS
• Wire Connection: Terminal
• Dimensions: 113 x 113 x 19mm (4.45 x 4.45 x 0.75 inches)
• Installation: 60.3mm (2.37 inches) hole pitch
• Z-Wave Frequency: 904.42 MHz with S2 encryption
• Warranty: 1-Year Limited

»Ezlo EZL-TSTAT-US Z-Wave Thermostat Installation Manual (.pdf)
