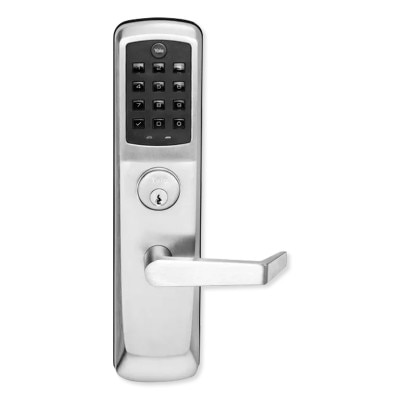

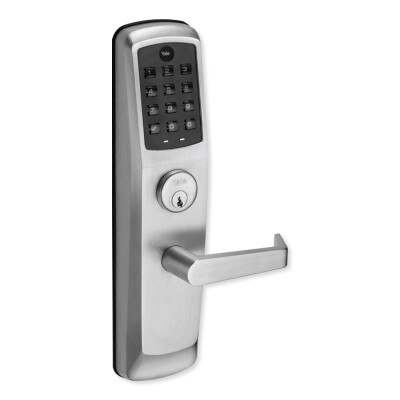

Yale nexTouch Z-Wave Plus v2 Pushbutton Keypad Exit Trim, Augusta Lever, Z-Wave 700

Upgrade Your Security with a Z-Wave 700 Lock

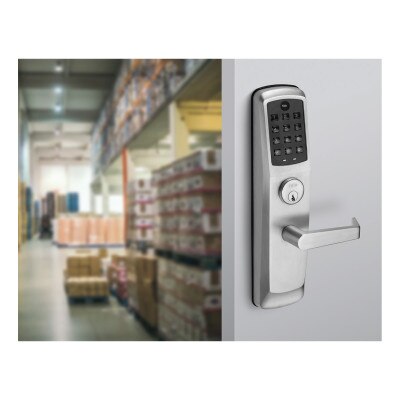

Upgrade your commercial exit door with the Yale nexTouch Z-Wave Plus v2 Pushbutton Keypad Exit Trim, Augusta Lever, Z-Wave 700. This electronic keypad door lock and deadbolt combination offers greater security, convenience, and accessibility to your building through 3 entry methods: inputting a 4-8 digit code into the keypad, using a traditional turnkey, or remotely accessing the lock via a Z-Wave controller or smartphone app. The lock's retrofit design and adjustable mounting posts allow it to be easily installed onto most types of existing doors, including detached deadbolt keypads and latches. A built-in 9V backup battery ensures the lock remains powered and usable in the event of power failure. This nexTouch Exit Trim model includes a Z-Wave 700 radio module to allow the lock to be included in a wireless Z-Wave automation or security system for additional automation and security functions such as arming and disarming security systems, sharing passcodes with others, and remote monitoring of the lock's status and usage history.

• Wireless keypad lock secures your building and connects to Z-Wave networks
• Locks/unlocks via 4 to 8 digit numeric passcode, turnkey, or Z-Wave remote control
• Create and share up to 500 unique PIN codes

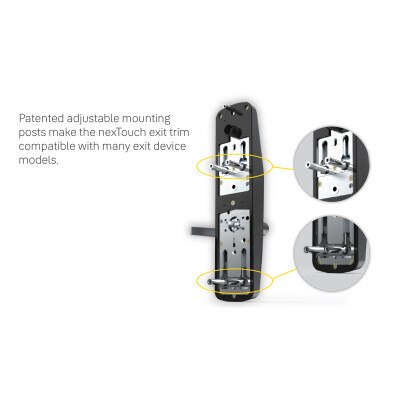

• Patented adjustable mounting posts enable retrofit onto many exit device models without any additional hardware
• 9V battery backup maintains operation when primary power fails
• Weather resistant seal protects the keypad from the elements
• Voice assistance guides you through programming in 3 languages
• Create and share codes, review device status and usage history, and include into Z-Wave automated scenes via mobile app of a compatible Z-Wave hub, sold separately

As a part of the nexTouch series, this Yale lock comes with several security features including modular security attachments, privacy and free passage modes, and an included Z-Wave 700 Module for integration with your Z-Wave automation and security system.

Installation Details

The nexTouch smart lock installs on standard interior or exterior doors measuring 1-3/4". All the necessary hardware (lock, screws, etc.) are included, along with a template for door preparation and detailed instructions. The lock is suitable for left- or right-handed operation.

The sectional lock is powered by four (4) AA batteries, which are included and should last for about one year. The lock also supports an optional 9VDC backup power supply with a plug-in wall transformer (sold separately). The Z-Wave Network Module easily snaps in above the batteries. An alert is triggered when the battery is low, wrong codes are entered, or the lock is tampered with.

Programming is completed at the lock via the push button keypad or through your Z-Wave system controller. The Z-Wave smart lock provides voice-assisted programming with adjustable volume to guide you through the setup process. Voice assistance is available in English, Spanish, and French.

Z-Wave 700 Series / Z-Wave Plus v2 Certification

Z-Wave 700 is an upgraded Z-Wave certification program to help you identify products that take advantage of the latest Z-Wave hardware platform, also known as 700 Series, Gen7 Z-Wave, or Z-Wave Plus v2. Z-Wave 700 compatible devices include extended wireless range up to 2600 ft/800 m, three layers of encryption, faster operation, and longer battery life.

Contents

• Pushbutton nexTouch Lock
• Z-Wave Module, Plug-In
• (4) AA Batteries
• Mounting Hardware
• Instruction Manual

Notes

• Smartphone required for optional remote Z-Wave integration via the Yale Secure App or Z-Wave compatible controller app.
• Z-Wave automation or security controller sold separately.

nexTouch – One Lock Platform, Three Technologies

Yale nexTouch locks feature fully modular designs for users to enjoy multiple advanced security technologies for secure access to their homes or businesses. nexTouch locks and deadbolts give users the convenience of remote and local access control with Zigbee or Zigbee wireless integration and cloud-based management software.

Yale Real Living – Solutions For The Digital Home

As a residential product line under the Yale Security brand, the Yale Real Living series brings over a century of innovation to the digital home. Known for manufacturing top-quality deadbolts and leversets, Yale now offers lock hardware and other home security solutions fit for the modern, connected age.

• Manufacturer Part #: NTT612-ZW3-626
• UPC: N/A
• Finish: Satin Chrome
• Wireless LAN: Yes
• Z-Wave: Yes
• Z-Wave Version: 700 Series (Z-Wave Plus v2)
• Power Source: Battery
• Battery Size Supported: 9V
• Door Prep:
• 1-3/8" right handed
• 2-1/8" left handed
• Bore: 1" edge bore
• Handing: Field Reversible
• Max User Codes: 500
• Voice Prompted Programming: English, Spanish, French
• Dimensions:
• Exterior: 13 H x 3.125 W x 2 inches D (330 H x 79 W x 51 D mm)
• Approvals: ADA, ANSI/BHMA A156.13, Series 1000, Operational Grade 1, UL/cUL, FCC Part 15, ISO 14001, EPD, GreenCircle
• Warranty: 3-Year Limited Mechanical & Electrical
