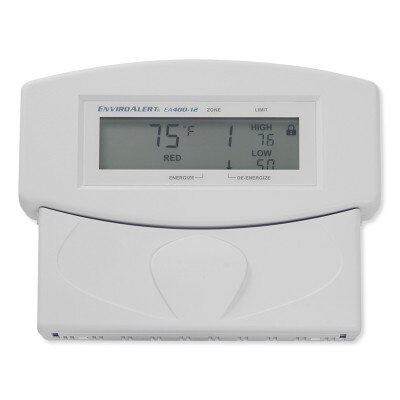

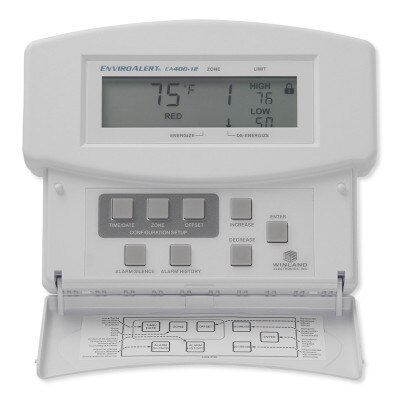

WINLAND, ENVIROALERT MONITORING CONSOLE, 4 ZONE

MULTI-ZONE COVERAGE FROM WATER, TEMPERATURE AND HUMIDITY

Monitor four zones with any combination of a remote temperature, humidity or water sensing probe. If temperatures and humidity deviate from the preset limits or water forms a bridge between the contacts on the WaterBug« sensor the designated relay for each zone will activate an alarm, dialer, transmitter, etc.

Ideally suited for applications including: coolers, freezers, computer rooms, greenhouses, cell tower sites, laundry rooms, basement sump wells, etc.

INNOVATION FROM WINLAND

The EnviroAlert is the only device in the industry that can simultaneously monitor temperature, humidity and presence of water to help minimize potential damage in any critical environment.

Winland, EnviroAlert Installation / Owner's Manual (.pdf)

Features:

• Simultaneous operation of all four zones

• Defrost time delay up to 120 minutes

• Easy to read large LCD display

• Eight event alarm memory with time and date

• Auxiliary output relay for local audible alarm

• Auxiliary alarm silence feature with 10 minute timer

• Each zone has offset calibration adjustment

• Temperature & humidity Hi / Lo set points

• Output relays can be configured to be initially energized or de-energized

• Tamper proof lock setting

• Snap fit mounting base with main housing for easy access

• Plug in terminal strip connectors for easier wire termination

• Zones being monitored are displayed every few seconds

• Each Zone can be configured with:

• Display F°, C°, % (Humidity) or Water Drop icon

• Zone configuration retained in memory if power is lost

• Dimensions: 6.0" x 4.75 x 1.25

• Weight: .60 lb

• Lo & Hi Limit Adjust Range: -58 to 299° F

• Input Voltage: 12 VDC @ <120mA

• Number of sensor inputs: 4

• Unit Operating Range: +32 to 122° F

• Alarm Outputs: 4 - SPDT Relays (Configurable)

• Auxiliary Audible Alarm Output: 1 - SPDT Relays (Non-configurable)

• Case Material: ABS
