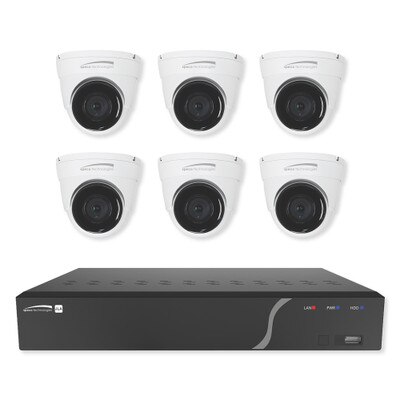

Speco Zip Kit: 8-Channel NVR With 6 IP Dome Cameras, 2TB

Plug-And-Play Professional Surveillance System Includes NVR & 6 IP Dome Cameras

Record everything that happens on your property with the Speco Zip Kit: 8-Channel NVR With 6 IP Dome Cameras, 2TB. This complete plug-and-play surveillance system comes with one 8MP Advanced Analytics IP camera and five 5MP IP cameras, all of which auto-enroll into the included Network Video Recorder (NVR). The cameras can be placed anywhere around your property, and the Internet-connected NVR gives you remote access to the footage from anywhere in the world.

• Surveillance kit supports up to 8MP resolution for live view, recording, and playback
• NVR features PoE ports, Gigabit data transmission, H.265 and H.264 streams, and S.M.A.R.T. review technology
• Included dome camera's feature 2.8mm lens, built-in IR LEDs, weather-resistant design, and Micro SD card slot
• IR LEDs provide night vision up to 100 feet
• Remote monitoring via Speco Gray Viewer (Windows) and Speco Gray app (iOS or Android)
• Free Speco DDNS server with NVR

About the Network Video Recorder

The full-featured 8-channel NVR makes it easy for installers to quickly set up a professional surveillance system. It features four "EZ" functions:

• EZ Set-Up Wizards: One-click wizard guides you through basic system programming for the date/time, preferred recording method, video quality, preferred network, and port forwarding.
• EZ Search: Allows you to quickly search through recorded events via thumbnails.
• EZ Record: Easily set up recording resolutions and recording type.
• EZ Copy: Auto-copy the video you are playing onto a USB flash drive.
• EZ App Setup: Just scan a QR code with the app to view your cameras on your smartphone or other mobile devices.

The NVR has built-in PoE and supports UHD (3840 x 2160) recording and playback to accommodate the included HD IP cameras. It offers dual network ports, allowing you to isolate the IP camera network and remote network traffic. Built-in S.M.A.R.T. Technology also provides self-monitoring, analysis, and reporting technology for the NVR's hard disk drive (HDD).

Remote viewing can be accessed via the Speco Gray Viewer (Windows) and Speco Gray (iOS and Android) app. The Speco Gray app allows you to view live and recorded video, as well as take snapshots and recordings of what is being seen. An option to view low or high-resolution video is also provided with multiple layout options available. You can also set up alarm notifications to be notified whenever motion events are detected.

About the Dome Cameras

Included with the 8-channel NVR are six weather-resistant IP dome cameras (five 5MP and one 8MP camera). These cameras feature a 2.8mm wide-angle lens and an IR cut filter for true Day/Night operation. Each camera also supports H.265/H.264 compression formats, has an IR range up to 100 feet, and a built-in Micro SD card slot for up to 128GB of external storage. Additionally, the 8MP Advanced Analytics IP camera is designed with a built-in mic and features human detection, vehicle detection, facial recognition, and motion detection.

Kit Includes

• NVR with 2TB hard drive
• 8MP Advanced Analytics Camera
• (5) 5MP Cameras
• (6) 60ft Ethernet Cables
• 3ft Ethernet Cable
• Remote Control
• (2) AAA Batteries
• HDMI Cable

NOTE: Camera power supplies not included.

IMPORTANT NOTE: Speco Technologies products are not available to ship outside the U.S. Please contact Speco Technologies directly for international orders.

Commercial & Residential Solutions From Speco

Speco Technologies is dedicated to providing the highest quality residential and commercial sound, security, CCTV closed-circuit video, and electronic accessories. Contractors, installers, builders, engineers, architects, and homeowners rely on Speco products to satisfy both their commercial and residential needs.

Technical Details

• Manufacturer Part #: ZIPK8TA
• UPC: 030519032650

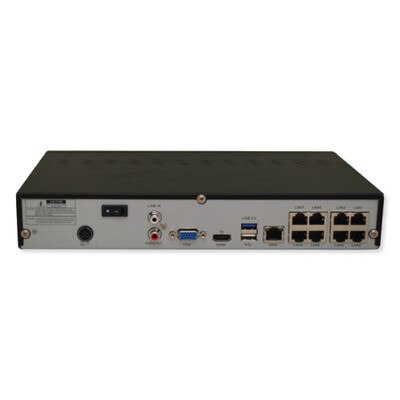

Network Video Recorder (N8JLA)

• Max. Bit Rate: 128 Mbps
• Max. Recording Resolution: 8MP
• PoE Ports: 8
• Monitor Output: 1 HDMI, 1 VGA
• Display Resolutions: 3840 x 2160, 2560 x 1440, 1920 x 1080, 1440 x 900, 9280 x 1024, 1280 x 720, 1024 x 768
• USB Ports: 1 x USB 3.0, 2 x USB 2.0
• HDD Slots: 1 (Up to 2TB)
• Ethernet: RJ – 45 (100/1000M) Port
• Remote Viewing:
• Speco Gray Viewer (Windows)
• Speco Gray app (iOS, Android)
• Power Supply: 48VDC, 1.5A
• Dimensions: 11.8(W) x 2.1(H) x 8.9(D) inches (300 x 53 x 226mm)

Dome Cameras (OK51)

• Image Sensor: 1/2.7" 5MP CMOS
• Resolution: 2592 x 1944
• Minimum Illumination: 0 lux (IR LED on), F1.2
• Day/Night: IR cut filter
• Compensation: DWDR/BLC
• White Balance: Auto / Manual/Indoor
• Electronic Shutter Speed: 1/5 ~ 1/20000 sec
• DNR: 3D
• IR Range: 100ft. (depending on scene reflection)
• Compression: H.265, H.264
• Multiple Streaming: 2 streams
• Ethernet: 10/100 Mbps
• Power: PoE or 12VDC (power supply not included)
• Power Consumption: ~7W
• Operating Temperature: -22°F – 131°F (-30°C – 55°C)
• Operating Humidity: 0% – 90% RH
• Unit Dimensions: 3.35" (H) x 3.55" (Dia.)
• Alerts & Advanced Analytics: Motion Detection
• Warranty: 5 Years

Dome Camera (O8K1A)

• Image Sensor: 1/2.7" Progressive CMOS
• Resolution: 8MP 3840(H) x 2160(V)
• Minimum Illumination: Color 0.05lux @ F1.2(AGCON) ; B/W 0 lux @ IR ON
• Day/Night: IR cut filter with auto switch（Day/Night/Auto/Schedule)
• Compensation: Off/On (5 Zone
• White Balance: Auto/Manual
• Electronic Shutter Speed: 1/5 ~ 1/20000s
• DNR: 3D
• IR Range: 100ft. (depending on scene reflection)
• Compression: H.265, H.264
• Multiple Streaming: 2 streams
• Ethernet: 10/100 Mbps
• Power: PoE or 12VDC (power supply not included)
• Power Consumption: ~7W
• Operating Temperature: -22°F – 140°F (-30°C – 60°C)
• Operating Humidity: 0% – 95% RH
• Unit Dimensions: 3.94" (H) x 3.56" (Dia.)
• Alerts & Advanced Analytics: Motion Detection, Human Detection, Vehicle Detection, Facial Recognition
• Warranty: 5 Years

»Speco ZIPK8TA 8-Channel NVR with Built-In PoE Surveillance Kit Spec Sheet (.pdf)
