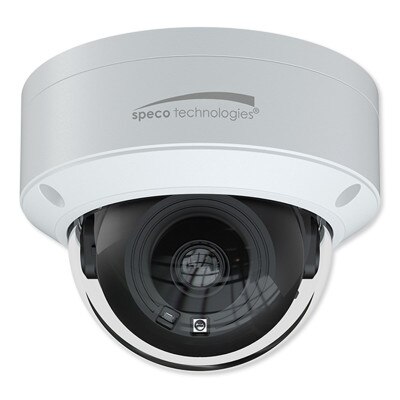

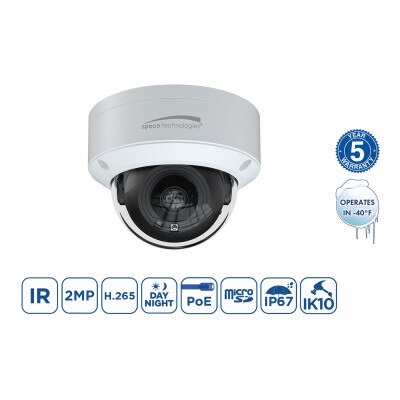

Speco 2MP H.265 IP Dome Camera with IR, 2.8mm Fixed Lens

Capture Clear Surveillance With HD Resolution

Enhance the security surveillance at your home or office with the Speco 2MP H.265 IP Dome Camera with IR, 2.8mm Fixed Lens. This IP dome camera supports H.265/H.264 compression formats and comes with a 2.8 mm fixed lens. It has an IR range of up to 98 feet, offers true day/night operation with a IR cut filter, and provides true WDR (wide dynamic range) operation for image compensation in high contrast areas. The Speco 2MP IP Dome Camera is also well built for long-lasting use thanks to its IP67 compliant weather resistance and has an IK10 durability rating. The camera also has built-in standard PoE to help minimize the use of power cables, making installation easier.

• 2.8mm fixed lens captures HD resolution (1920x1080 @ 30fps)
• True WDR (wide dynamic range) for image compensation in high contrast areas
• Supports H.265/H.264 codecs and multiple streaming (up to 2 streams)
• IR cut filter for Day/Night true operation with IR range up to 98 feet
• Weather-resistant IP67 rated and IK10 rated for durable use
• Micro SD card slot up to 128GB (card not included)
• Built-in PoE standard (IEEE 802.3af)

This Speco IP Dome Camera comes with a wide range of surveillance features such as detection capabilities like line crossing, region intrusion, and blurring detection. It also provides alarm triggers for whenever motion or other events are triggered, and image settings include IP address filtering, watermark, video mask, and password protection.

Easy Access To Footage Via Mobile App

View live and stored video from anywhere, anytime through the free SecureGuard mobile app for iOS and Android devices. When the camera is connected to a Speco NVR, you'll be able to view live video footage as well as playback, pause, rewind, and fast forward recorded footage using a smartphone or tablet. This allows you to monitor your home from any location with an Internet connection, all from the palm of your hand.

Installation Details

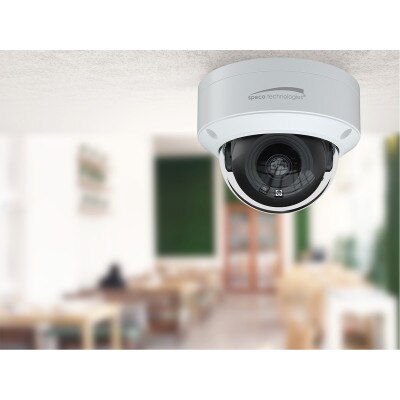

This IP Dome Camera can be installed outdoors or indoors and is weather-resistant (IP67) and rated for durability (IK10). A mounting template and hardware are also included for accurate installation and the camera can be powered by a 12VDC power supply or by Power over Ethernet (all power supply devices sold separately).

Contents

• IP Dome Camera
• Installation Accessories Bag
• Software CD (PC)
• Quick Start Guide

Notes

• This device supports viewing and management via a web browser on a PC.
• 12VDC Power Supply not included (uses PoE as standard).
• Speco network video recorders (NVR) sold separately.

Commercial & Residential Solutions From Speco

Speco Technologies is dedicated to providing the highest quality residential and commercial sound, security, CCTV closed-circuit video, and electronic accessories. Contractors, installers, builders, engineers, architects, and homeowners rely on Speco products to satisfy both their commercial and residential needs.

• Manufacturer Part #: O2VD2
• UPC: 030519040891
• Warranty: 5 Years

Camera

• Image Sensor: Progressive scan 1/2.8" CMOS, 2MP
• Maximum Resolution: 1920 x 1080
• Field of View: 107°(H); 56°(V); 126°(V)
• Minimum Illumination: 0.008 lux@F1.6, AGC ON; 0 lux with IR
• Video Settings: Region of Interest, Privacy masking, Brightness, Contrast, Hue, Saturation, Denoise, Antiflicker, Day/Night mode, Infrared settings, Exposure, Gain, Corridor Pattern, Image flip/mirror
• Day/Night: Smart IR up to 98' (depending on scene reflection)
• Compensation: Digital WDR, BLC, HLC
• Electronic Shutter Speed: 1/3s ~ 1/100000s
• DNR: 3D DNR
• Angle Adjustment: Pan: 0° to 355°; Tilt: 0° to 70°; Rotation: 0° to 355°

Video

• Main Resolution: 1920x1080, 1280x720, D1, CIF
• Substream: D1, CIF @ 30fps
• Compression: H.265, H.264, MJPEG
• Bitrate Control: VBR, CBR (128Kbps to 4Mbps)
• Multiple Streaming: 2 streams

• Protocols: UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, 802.1x, UPnP, HTTP, HTTPS, QoS
• DDNS Support: Speco DDNS (free of charge)
• Security: User ID & Password protection, IP/Mac address filtering, digest authentication
• User Access: Max. 3 simultaneous users, Actual number of users may vary depending on bandwidth

Audio

• Audio Compression: G.711A / G.711U

Interfaces

• Ethernet: RJ45 Jack
• Power: DC Jack
• Microphone Input: 3.5mm
• Card Slot: MicroSD, up to 256GB (not included)
• Alarm In/Out: No
• Reset: Yes

System

• PoE: Standard (IEEE 802.3af)
• Detection Events: Line crossing, region intrusion and video blurring detection
• Alarm Triggers: Motion, Detection Events, SD card error
• Image Settings: Watermark, IP address filtering, video mask, password protection

Client

• Web Browser Support: Google Chrome, Microsoft Edge, Internet Explorer, Apple Safari
• PC Application: SecureGuard® VMS and SecureGuard® CMS
• Mobile: SecureGuard® App, Speco Blue

Operating & Unit

• Power: PoE, 12VDC (power supply not included)
• Power Consumption: 3.5W (max)
• Operating Temperature: -40°F to 140°F (-40 to 60°C)
• Operating Humidity: Less than 95 % (non-condensing)
• Dimensions: 4.33" (φ) x 3.78" (H)
• Certifications: FCC, IK10, IP67

»Speco O2VD2 2MP IP Dome Camera with Line Crossing and Intrusion Detection Spec Sheet (.pdf)
»Speco O2VD2 2MP IP Dome Camera with IR Quick Start Guide (.pdf)
»Speco O2VD2 2MP IP Camera User Manual (.pdf)
