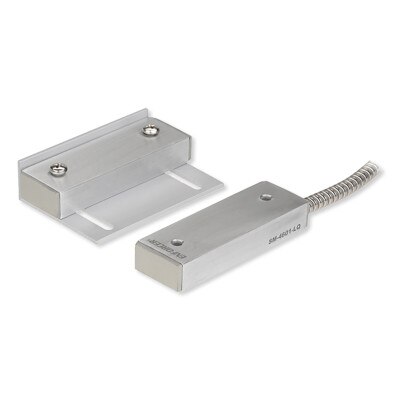

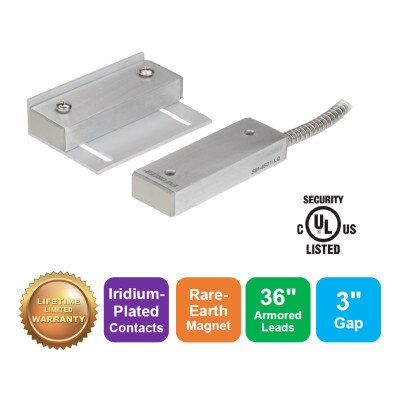

Seco-Larm Industrial Wide-Gap Magnetic Contact, 3" Gap, Closed Loop, UL Listed

SKU: SESM4601LQ

Order now and we'll ship same business day (if ordered before 3 pm PST).

$13.95

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Magnetic Contact For Wide-Gap Open/Close Applications

Monitor the status of large doors or windows with the Seco-Larm Industrial Wide-Gap Magnetic Contact, 3" Gap, Closed Loop, UL Listed. This industrial grade magnetic contact is designed for wide-gap, closed loop applications. All components are sealed in aluminum housing for long lasting waterproof usage while the contact switch itself is designed to handle high electrical currents for years, eliminating the need for regular replacement. The contact includes spacers and screw terminals for fast installation.

  • Weatherproof contact switch for industrial situations where a wide-gap (3 inch/76mm) surface mount contact is needed
  • Rugged aluminum housing is IP54 weather-resistant and sealed for outdoor use
  • Iridium-plated magnetic contact has high melting point and Vickers hardness for higher power handling and long life
  • 36" (91cm) wire leads enclosed in armored cable

Installation Details

The contact switch mounts near the chosen door or window and the magnet mounts onto the door or window. Be sure that the gap between the contact and magnet does not exceed 3" (76mm).

Contents

  • Magnet
  • Contact Switch
  • Mounting Bracket
  • Installation Hardware

Building A Secure Future Since 1971

So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Under the Enforcer trademark, Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether it's physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers an extensive range of dependable, cost-effective security products with a full program of service and support.

Specifications

  • Manufacturer Part #: SM-4601-LQ
  • UPC: 676544016014
  • Loop Type: N.C.
  • Operation Gap: 3" (76mm)
  • Case Material: Aluminum
  • Terminal Material: 36" (91cm) armored leads
  • Contacts: Iridium-plated
  • Contact Rating: 0.1A@100VDC (max), 1.0A@10VDC (max), 10W (max)
  • Operating Temperature: -15° to 160° F (-25° to 70° C)
  • Switch Cycles: 50 Million (0.1mA@5VDC)
  • Switch Dimensions: 3" x 1" x 1/2" (76.2 x 25.4 x 12.7 mm)
  • Magnet Dimensions: 3" x 1" x 1/2" (76.2 x 25.4 x 12.7 mm)
  • Magnet Type: Rare-earth neodymium
  • IP Rating: Weather-resistant IP54
  • Warranty: Limited Lifetime

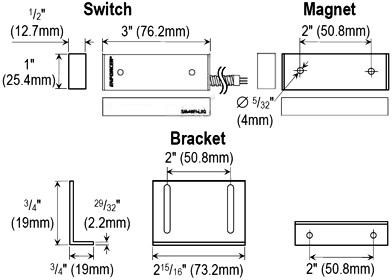

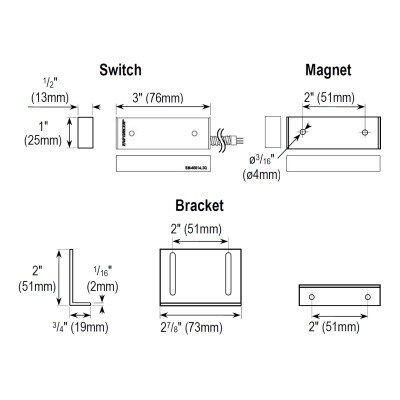

Dimensions

Downloads

»Seco-Larm SM-4601-LQ Industrial Wide-Gap Magnetic Contacts Spec Sheet (.pdf)
»Seco-Larm SM-4601-LQ Industrial Wide-Gap Magnetic Contacts Installation Manual (.pdf)
