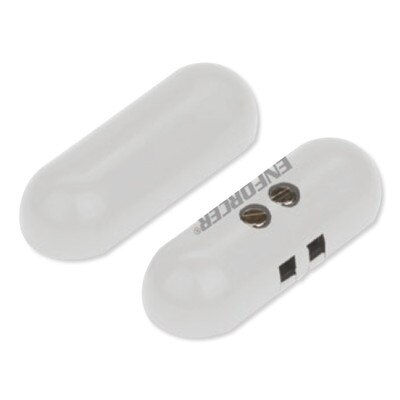

Seco-Larm Enforcer Magnetic Contacts Capsule-Type Surface-Mount, 1" Gap

SKU: SESM4004TQW

Order now and we'll ship same business day (if ordered before 3 pm PST).

$3.95

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Surface Mount Magnetic Contact For Closed-Loop Circuits

Discreetly monitor a door or window with the Seco-Larm Enforcer Magnetic Contacts Capsule-Type Surface-Mount, 1" Gap. This security magnetic contact has a miniature capsule-type design with gold-plated external screw terminals for longer life and reliability with tape to cover terminals. It includes adhesive mounting double-sided tape for easy installation and is made for closed-loop circuits with a 1" operation gap. The contact reed switch is SPST and has iridium-plated to have a high melting point and Vickers hardness for higher power handling and longer expected life.

  • Designed for doors and windows where space is limited
  • High impact ABS plastic for durable use
  • 1-inch operation gap with gold-plated external screw terminals with tape to cover terminals
  • The contact reed switch is SPST and iridium-plated to have a high
  • melting point, for closed-loop circuits
  • Lifetime limited warranty

Contents

  • Magnetic Contact
  • Adhesive Double-Sided Tape
  • Manual

Seco-Larm Security Products

So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Under the Enforcer trademark, Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether for physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers such an extensive range of dependable, cost-effective security products with a full program of service and support.

Specifications

  • Manufacturer Part #: SM-4004-TQ/W
  • Loop Type: Closed Loop
  • Electrical Configuration: N.O. (SPST)
  • Operation Gap: 1" (25mm)
  • Connectors: Gold-plated screw terminals
  • Color: White
  • Material: High-impact ABS plastic
  • Contacts: Iridium plating
  • Contacting Rating:
    • 1.0A@10VDC (max.)
    • 10W 9 (max.)
  • Operating Temperature: -15° to 160° F (-25° to 70° C)
  • Switch Cycles: 50 Million (0.1mA@5VDC)
  • Switch Dimensions: 1 x 3/8 x 1/4 inches (25 x 10 x 6 mm)
  • Magnet Dimensions: 1 x 3/8 x 1/4 inches (25 x 10 x 6 mm)
  • Magnet Type: Rare-Earth Neodymium
  • Credentials: RoHS
  • Warranty: Lifetime Limited Warranty

Downloads

»Seco-Larm SM-4004-xQ/W Enforcer Capsule-Type Surface-Mount Contacts Spec Sheet (.pdf)
»Seco-Larm SM-4004-xQ/W Enforcer Capsule-Type Surface-Mount Contacts Installation Manual (.pdf)
