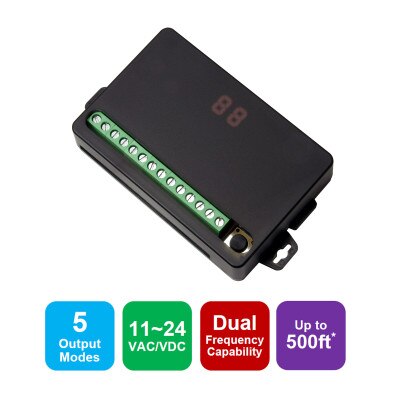

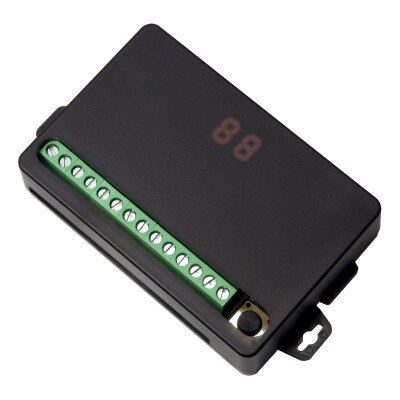

Seco-Larm ENFORCER 3-Channel RF Receiver

Compatible With 315MHz Enforcer Transmitters

Add remote control functionality to a variety of home automation applications with the Seco-Larm ENFORCER 3-Channel RF Receiver. This versatile 3-channel RF receiver can work with any fixed-code/code-hopping 315 MHz Seco-Larm transmitter as well as other Seco-Larm transmitters that operate in the 433.92MHz frequency range when used with an optional Extended Range Antenna (SK-93ERSD, sold separately). This receiver has a range up to 500 feet and will allow wireless control of a wide range of devices such as garage doors, gates, house lights, alarm panels, lifts or other devices connected to the Seco-Larm receiver. You can program up to 5 relay modes independently and up to 60 transmitter button codes can be learned per channel. It also features an alphanumeric display that indicates RF reception, learn mode entered, memory cleared, and relay output mode.

• 3-channel receiver is compatible with 315 MHz SECO-LARM transmitters (fixed code and CODEBUMP)
• Dual frequency operation – can receive 433.92MHz signals with optional Extended Range Antenna (sold separately)
• 5 independent controlled output modes: 0.5 to 99-second timed pulse, 1 to 99-minute timed pulse, toggle, latch, follow (validity)
• Alphanumeric display indicates RF reception, memory cleared, relay output mode, and more
• Receiver learns up to 60 transmitter button codes per channel
• Receives signals from up to 500 feet (150m), or up to 1,000 feet with optional Extended Range Antenna (sold separately)

Contents

• 4-Channel RF Receiver
• Manual

NOTE: Requires Extended Range Antenna (part: SK-91ERSD, sold separately) for receiving 433.92MHz signals and operating range of 1,000 feet.

Seco-Larm Security Products

So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Under the Enforcer trademark, Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether for physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers such an extensive range of dependable, cost-effective security products with a full program of service and support.

• Manufacturer Part #: SK-910RD3
• Operating Frequency: 315MHz (Can simultaneously receive 433.92MHz signals with optional Extended Range Antenna, part: SK-93ERSD)
• Memory Capacity: 60 per channel
• Operating Voltage: 10 to 24 VAC/VDC
• Operating Current:
• Standby: 16mA@12VDC, 12mA@24VDC
• Active: 60mA@12VDC, 50mA@24VDC (both per channel)
• Relay Output:
• Type: Independent, sequence, access control
• Modes: 1 to 99 sec momentary (default, 1s) 1 to 99 min momentary, toggle, latch, follow (validity)
• Relay Contacts:
• Number: 3
• Rating: Form C 10A@14VDC
• Connectors: Screw terminals, +, -, with NO/NC/COM per relay
• Digital Display: 2-digit, 7-segment LED
• Operating Humidity: 5 to 95%, non-condensing
• Operating Temperature: 32° to 167° F (0° to 75° C)
• Dimensions: 4-3/16 x 7/8 x 2-3/8 inches (107 x 23 x 60 mm)
• Certifications: IC, FCC
• Warranty: 1 Year

»Seco-Larm SK-910RD3_SK-910RD4 ENFORCER 3- and 4-Channel RF Receivers Specs (.pdf)
»Seco-Larm SK-910RD3_SK-910RD4 ENFORCER 3- and 4-Channel RF Receivers Instructions (.pdf)
»Seco-Larm SK-910RD3 ENFORCER 3-Channel RF Receiver Comparison Chart (.pdf)
