Russound XTS7 Wall-Mounted Color Touchscreen

Control Your Russound System and More with Touchscreen Controls

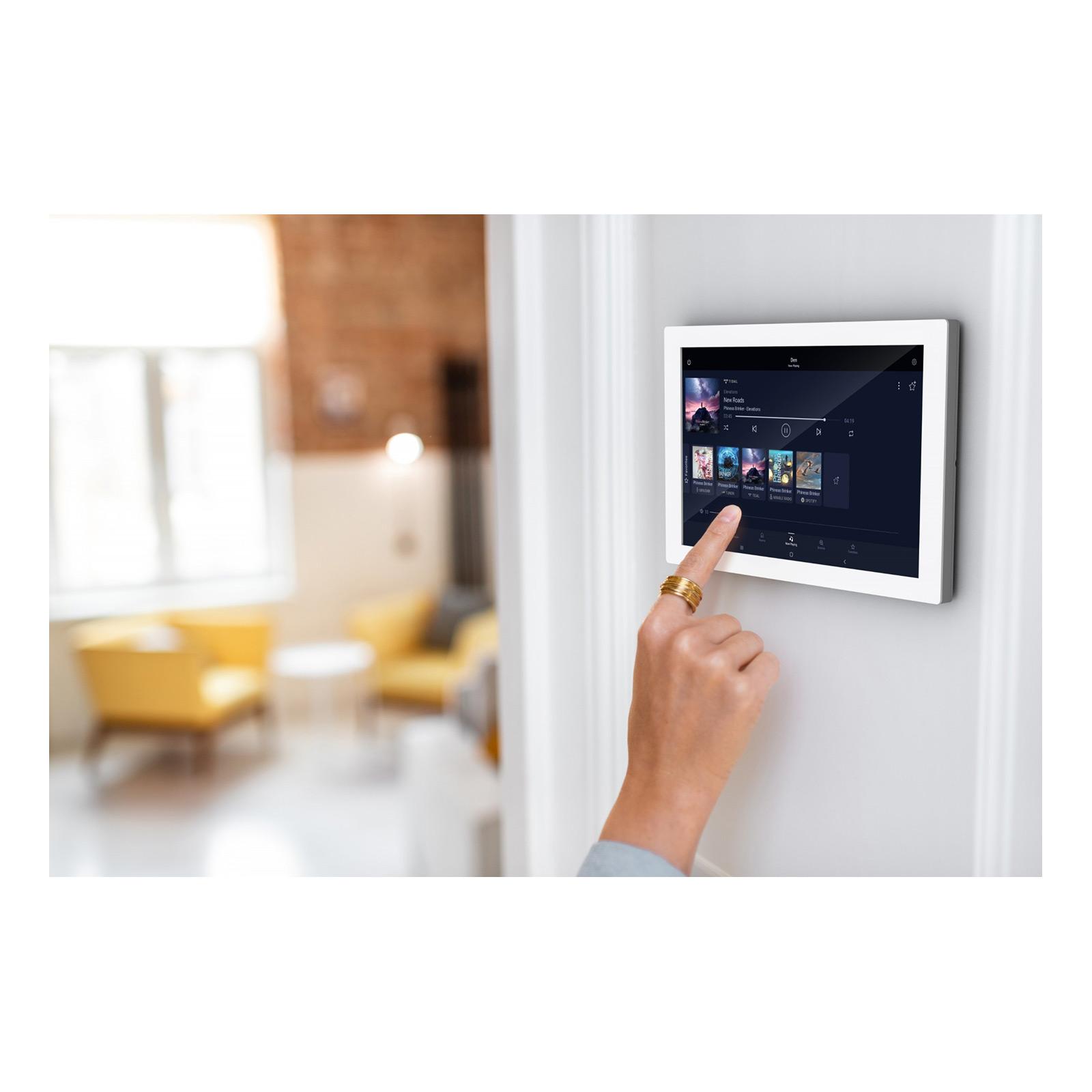

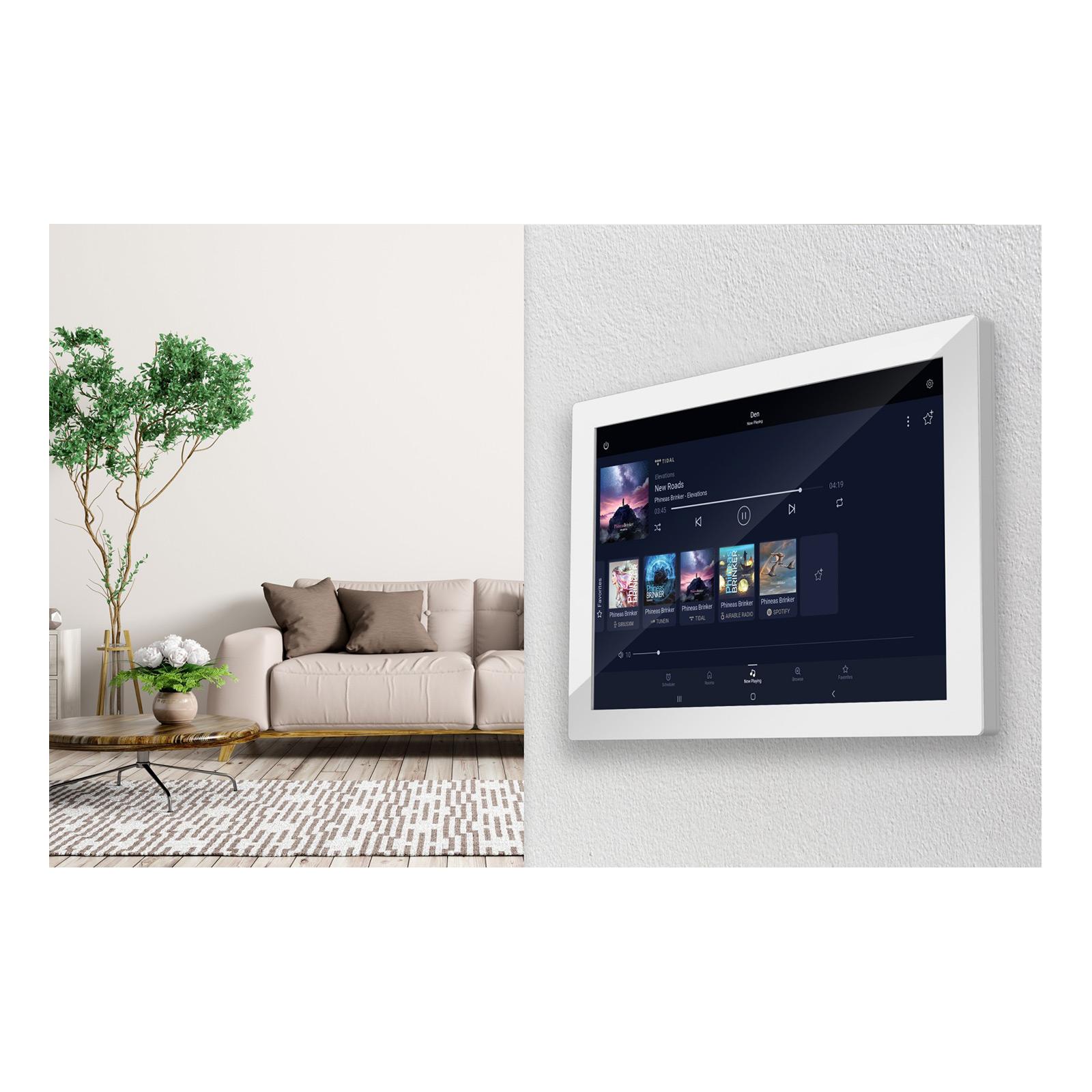

Add touchscreen control to your Russound audio system and any other Wi-Fi compatible system with the Russound XTS7 Wall-Mounted Color Touchscreen! This touchscreen controller is a specialized Android OS device permanently locked into landscape orientation that provides convenient local control of Russound audio systems and more. The Color Touchscreen includes the MyRussound app pre-installed for out of the box control over your distributed audio system. Additionally, the device can download other applications from the Google Play store to expand the functionality of the controller. Since the XTS7 is locked into landscape orientation, it makes an ideal local controller for other IP compatible smart systems including smart home systems, video intercoms or surveillance networks, or smart security systems.

• 7" Color Touchscreen powered by Android operating system
• Pre-installed with Russound app for out of the box control of Russound system

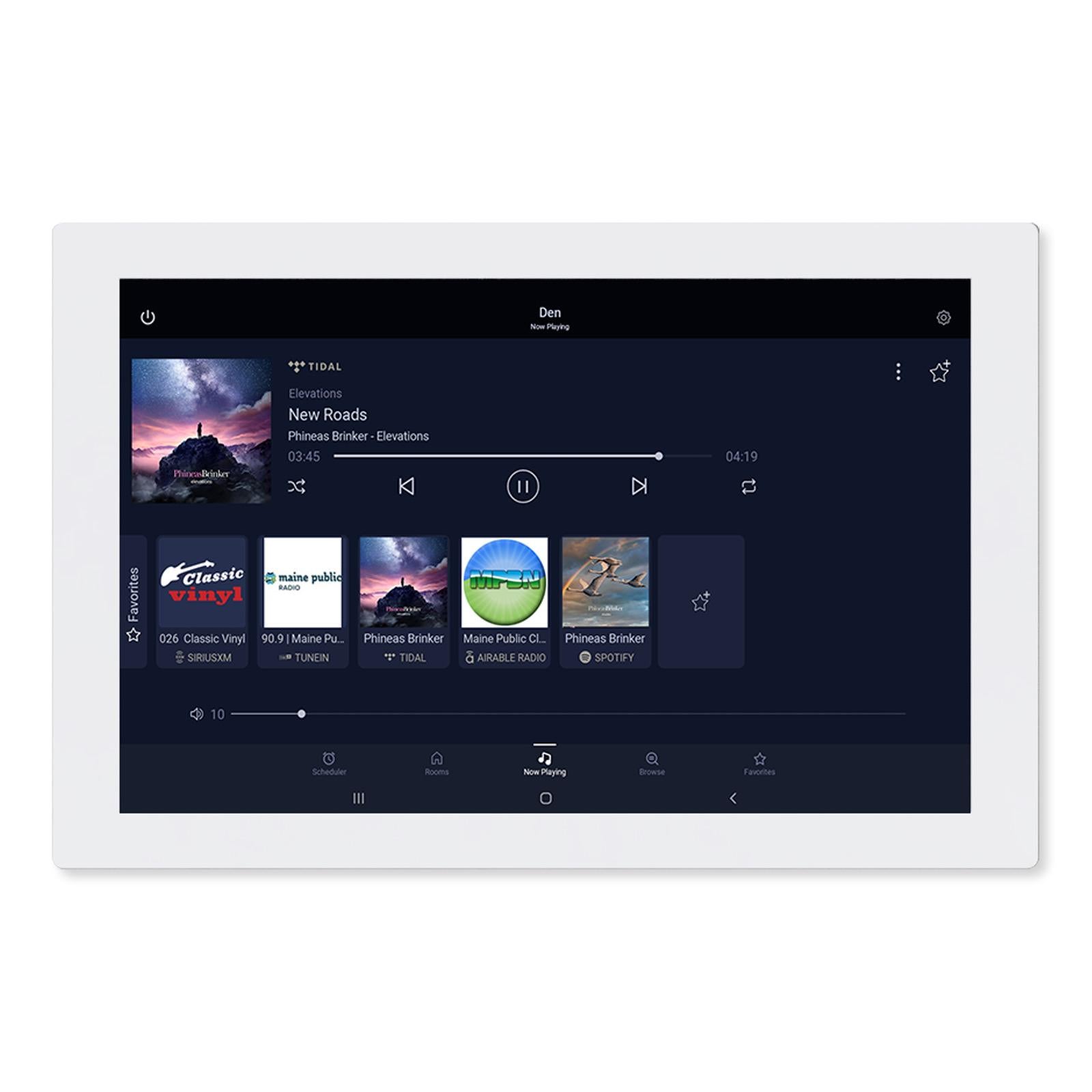

• Displays metadata for selected audio i.e. title, artist, album, audio source, and more
• Capable of downloading apps from the Google Play Store for smart home, smart security, and other applications
• Russound App pre-installed to work with the MBX-AMP, MBX-PRE, MCA-66 and MCA-88 amplifiers
• Installs in 1-Gang, 2-Gang, or 60mm Euro Electrical Boxes
• Two power options: PoE (802.3af) or 12VDC (power supply sold separately)
• Connects to Internet via Wired or Wi-Fi connections
• Can only be installed in landscape orientation

MyRussound™ App

The intuitive MyRussound™ App controls the entire Russound system from smart tablets and smartphones. The MyRussound app takes advantage of all of the features available to your Russound devices to simplify control of your Russound audio system no matter the scale or configuration. Control everything from small audio systems of only a few rooms in the home to the most complex audio installations.

Easy, Intuitive Room Grouping

Add, remove, or group any number of rooms for seamless synchronized audio throughout your home. Simply go to the room list and tap the speaker icon of the room that you'd like to share or withhold audio with other rooms in your home.

Faster and More Responsive Browsing

Quickly and easily find and select the song, artist, album that you're looking for within the always available navigation bar.

Improved Favorites Access

Easily access support for customizable room-based and app-based favorites. Create favorites and shortcuts for individual zones or the whole system.

Quick access to Schedules, Alarms and Sleep Timers

Set up innovative scheduling features, alarms and sleep timers that give you the ability to add advanced automation to your listening routines. Scheduling is available quickly from anywhere in the app via the always available navigation bar.

Installation Details

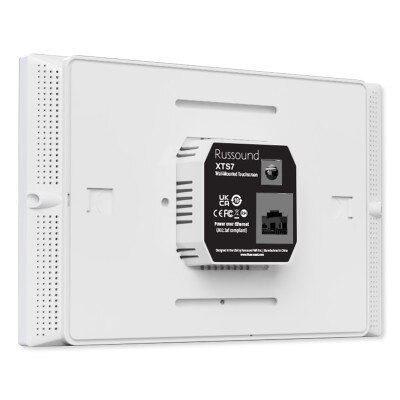

The XTS7 is designed to mount into single-gang or 2-gang in-wall electrical boxes with included hardware. The XTS7 utilizes a PoE (Power over Ethernet) connection for fast and easy installation and connection to your local Internet network. The XTS7 can alternatively connect to your Internet via Wi-Fi connection and use a 12V DC connection to supply the required power.

Contents

• XTS7 Touchscreen
• Mounting Plate
• Mounting Hardware

NOTE: The XTS7 can only be installed in landscape orientation.

Russound Brings Engineered Innovation and Extraordinary Sound

The Russound name is synonymous with audio quality around the world. Russound delivers a complete range of multiroom audio systems, source equipment, volume controls, amplifiers, loudspeakers and intercom systems. Every audio device from Russound has been manufactured to fulfill the ideal listening experience of any user – from background music listening to premium performance in your favorite listening areas at home. Russound remains dedicated to providing its dealers and customers with the right products for their desired audio needs.

• Manufacturer Part #: XTS-7
• UPC: 612934853791
• Processor: Quad-core 64-bit Cortex™ A53
• RAM: 2GB
• Touchscreen Display: 7" TFT
• Display Resolution: 800 x 1280 (16.7M Colors)
• Screen Brightness: 400 nits
• Storage Capacity: 16GB w/11.4 GB Free, Expandable via MicroSD
• Network Connectivity: Wired or Wi-Fi (802.11 b/g/n – 2.4GHz)
• Physical Connections: MicroSD Slot for Storage Expansion
• Power Requirements: PoE (802.3af) or 12VDC @1A (Power Supply Not Included)
• Mounted Dimensions: 6.91" L x 4.53" H x 0.65" D (17.6 cm L x 11.5 cm H x 1.65 D cm)

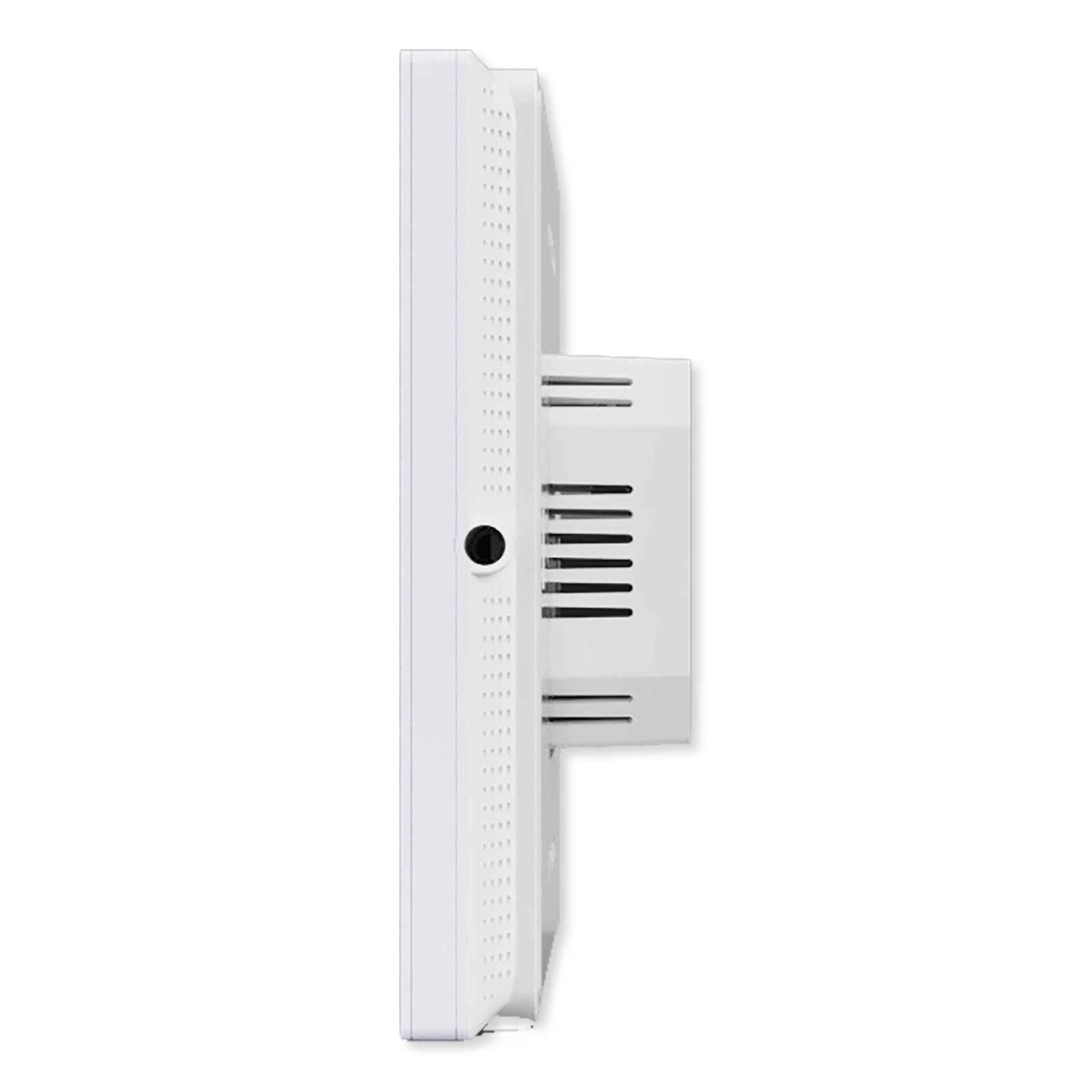

• Depth Behind Wall: 0.75" (1.9 cm)
• Weight: 1.2 lbs (0.55 kg)
• Shipping Dimensions: 8.75" W x 6" H x 2.56" D (22.23 x 15.24 x 6.5cm)
• Shipping Weight: 2 lbs (0.91 kg)
• Warranty: 1-Year Limited

»Russound XTS7 Wall-Mounted Color Touchscreen Spec Sheet (.pdf)
»Russound XTS7 Wall-Mounted Touchscreen Installation Manual (.pdf)
