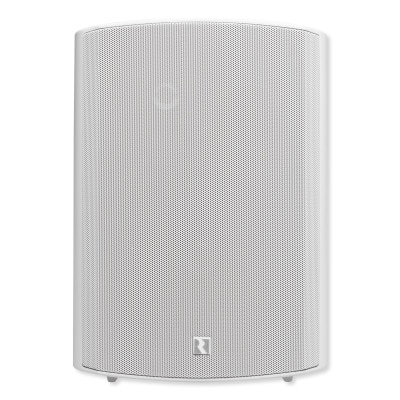

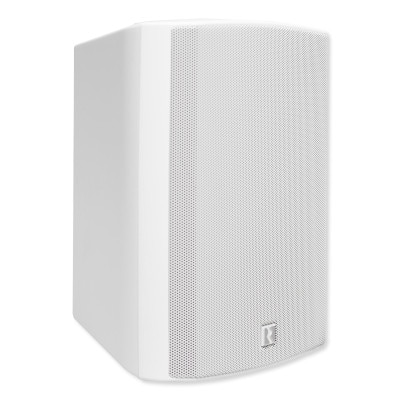

Russound Surface Mount Speakers (Pair), 70V/100V, White

Place High Powered Speakers Anywhere

Add a pair of speakers to any indoor or outdoor audio zone with the Russound Surface Mount Speakers (Pair), 70V/100V, White! This pair of high powered architectural speakers deliver high quality sound for both commercial and residential distributed audio systems. These speakers feature 1" titanium dome tweeters in a ported-cabinet design with 6.5" injection-molded polypropylene woofers for excellent music and voice reproduction. An included bypass setting allows them to adjust their amplification output between 70V or 100V to perform in various audio installations. Each speaker uses a specially designed mounting bracket that allows for one-handed mounting in both vertical and horizontal orientations. The bracket can also accommodate pole mounting installation using standard u-bolts and the speaker's dual ¼" brass inserts make them compatible with most 3rd party mounts.

• High powered speakers fit into indoor or outdoor audio zones
• One-Handed Mounting Bracket allows for vertical, horizontal or pole mounting
• Gold Plated Connectors maintain electrical connections for years

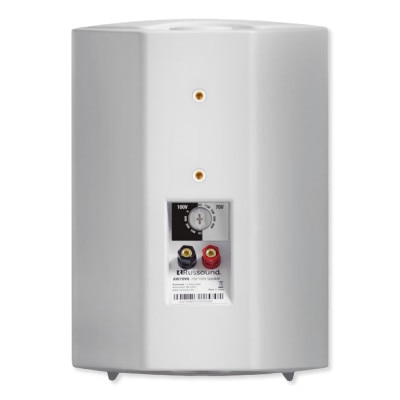

• Easily Adjustable Tap Settings protected by a weatherproof switch
• Powder-coated aluminum grille for an elegant, durable finish

Installation Details

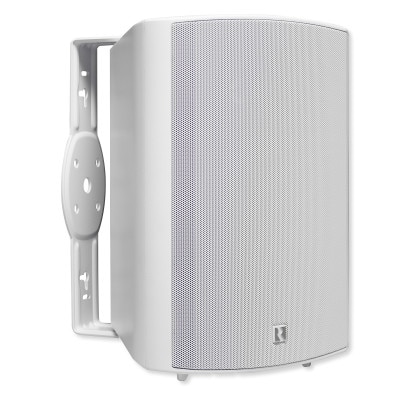

The AW70V6MK2W Speakers can be either wall, ceiling or pole-mounted with the mounting bracket. The bracket has screw slots to accommodate either installation options. The bracket's "C-slot" bracket design enables it to support the speaker's weight until it is safely locked into position, allowing for one-handed installation. Custom, easy-to-turn, weather-resistant knobs provide a versatile and cosmetic finish for the brackets' attachment points.

Contents

• AW70V6MK2 Surface Mount Speakers (Pair), 70V/100V, White
• Mounting Bracket

Russound Brings Engineered Innovation and Extraordinary Sound

The Russound name is synonymous with audio quality around the world. Russound delivers a complete range of multiroom audio systems, source equipment, volume controls, amplifiers, loudspeakers and intercom systems. Every audio device from Russound has been manufactured to fulfill the ideal listening experience of any user – from background music listening to premium performance in your favorite listening areas at home. Russound remains dedicated to providing its dealers and customers with the right products for their desired audio needs.

• Manufacturer Part #: AW70V6MK2W
• UPC: 612934853883
• Woofer: 6.5" (16.51cm) Injection-Molded Polypropylene
• Tweeter: 1" (2.54cm) Titanium Dome
• Wire Gauge: Up to 12ga AWG
• Frequency Response: (± 3dB): 55Hz-20kHz
• Tap Settings:
• 70V: 7.5W, 15W, 30W, 60W
• 100V: 15W, 30W, 60W
• 6Ω Bypass
• Sensitivity: 87 dB
• Recommended Power: 10 – 100 watts RMS for low impedance systems
• Material:
• Grille: Powder Coated Aluminum
• Bracket: Aluminum

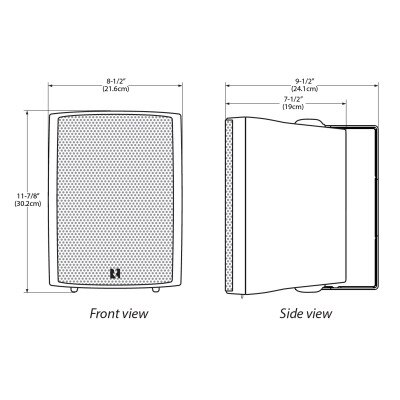

• Dimensions: 11.875"H x 8.5"W x 7.5"D (30 x 21.6 x 19 cm)
• Unit Weight: 9 lbs. (4 kg)
• Warranty: 2 Year

»Russound AW70V6MK2 70V/100V Surface Mount Indoor/Outdoor Speakers Spec Sheet (.pdf)
»Russound AW70V6MK2 70V Surface Mount Indoor/Outdoor Speakers Installation Manual (.pdf)
»Russound AW70V6MK2 Speakers Technical Drawing (.pdf)
