Russound 12-Channel Premium Digital Amplifier

Efficient High Power Sound From A 12-Channel Amplifier

Improve the reach and overall quality of your home audio system with the Russound 12-Channel Premium Digital Amplifier. This digital audio amplifier supports up to 6 paired zones at up to 90 Watts per channel in order to provide optimal sound quality for nearly any audio source or any sized audio system. As a part of Russound's D-Series of amplifiers, the D1290 offers customizable audio options to complement the capabilities of your speaker setups and support any level of audio quality and volume from connected sources. The D1290 can support up to 8 audio sources: 2 via dual bus inputs that can be played across all or a selected number of zones, while each individual zone may accept its own dedicated line level audio source to increase the amount of options to play throughout your system. Additionally, each zone's audio settings can be individually configured to accommodate the capabilities of connected speakers, or bridged together into mono zones or to share power with more powerful audio outputs.

• 8 zone, 12-channel amplifier arranged in stereo pairs for custom configurations for each zone
• 90 watts per channel into 4 ohms and 45 watts per channel into 8 ohms

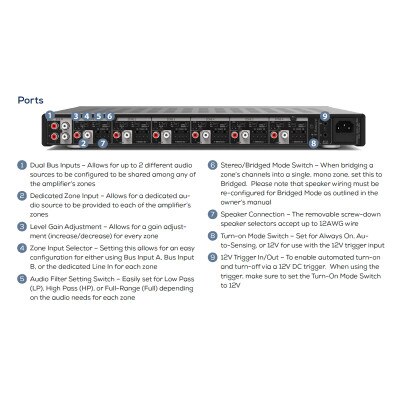

• Supports up to 8 audio inputs: 2 dual bus inputs and 1 per each zone
• Each zone can be independently configured and switch between connected audio sources
• Zones can be bridged for creating flexible power configurations
• Compatible with Russound volume controls and speakers
• Can be rack mounted using the included rack-mount ears and hardware

Installation Details

The D1290 Premium Digital Amplifier can be rack mounted into a standard media cabinet filling in only a single rack unit with included hardware. The Amplifier can also be placed onto a desktop surface.

Contents

• D1290 Digital Amplifier, 12-Channel
• 6 Ft. Power Cord
• Set of 4 removable speaker connectors
• Set of rack mount ears
• Manual

Russound Brings Engineered Innovation and Extraordinary Sound

The Russound name is synonymous with audio quality around the world. Russound delivers a complete range of multiroom audio systems, source equipment, volume controls, amplifiers, loudspeakers and intercom systems. Every audio device from Russound has been manufactured to fulfill the ideal listening experience of any user – from background music listening to premium performance in your favorite listening areas at home. Russound remains dedicated to providing its dealers and customers with the right products for their desired audio needs.

• Manufacturer Part #: D1290
• UPC: 612934853913
• Filter Options: High Pass, Low Pass, Full Range
• Power Output:
• 4 Ohms: 80W /Channel, 1kHz, One Zone Driven
• 8 Ohms: 45W /Channel, 1kHz, One Zone Driven
• 8 Ohms Bridged: 180W, 1kHz One Zone Driven
• Frequency Response:
• Full Range Mode: 20Hz to 20kHz ±3dB at 1W output into 4 or 8 Ohms
• Low Pass (LP) Mode: 20Hz to 160kHz ±3dB at 1W output into 4 or 8 Ohms
• High Pass (HP) Moded: 80Hz to 20kHz ±3dB at 1W output into 4 or 8 Ohms
• Input Sensitivity:
• 4 Ohm One Zone: 620 mV for 90W @ 1 KHz
• 8 Ohm One Zone: 690 mV for 45W @ 1 KHz
• Input Impedance: >22k Ohms Line Input
• Signal-to-Noise Ratio: >90dB A-weighted
• Trigger Inputs/Outputs: 12V, Global
• Volume Gain Adjustment: By Zone
• Line Inputs: Selectable: Bus A, Bus B, Zone
• Speaker Connectors: Detachable Screw-down, up to 12 Gauge
• Operating Temperature: -32° to 104°F (0° to 40°C)
• Operating Altitude: 0 to 9,843 feet (3000m)
• Minimum Impedance: Stereo Mode 4 Ohms, Bridge Mode 8 Ohms
• Power Requirements:
• North American Model D1650: 115-120VAC 60Hz 800W max
• International Model D1650i: 220-240VAC 50Hz 800W max
• Power Connector: IEC C14
• Standby Power: Less Than 0.5W
• Dimensions: 17.125(W) x 1.75 (H) x 9.75 (D) inches (43.5 x 4.4 x 24.8 cm)
• Weight: 9 lbs (4.1 kg)
• Shipping Dimensions: 20.2 (W) x 4.9 (H) x 14.3 (D) inches (51.33 x 12.5 x 36.3 cm)
• Shipping Weight: 10.6 lbs (4.8kg)
• Warranty: 2-Year Limited

»Russound D1290 Amplifier Spec Sheet (.pdf)
»Russound D1290 D-Series Multi-Channel Power Amplifiers Installation Manual (.pdf)
