Leviton Decora Plus Switch For Window Motors
LV56852x
The Leviton Switch For Window Motors is a...
Price: $54.95
|
|
 Product Description
|
LEVITON DECORA PLUS SWITCH FOR WINDOW MOTORS
CONTROL THE MOTOR FOR YOUR WINDOW
The Leviton Switch For Window Motors is a maintained contact, 3-position switch ideally suited for the Sintesi electric chain actuator. With a 3-position switch (ON-OFF-ON), controlling a window motor is both easy and convenient.

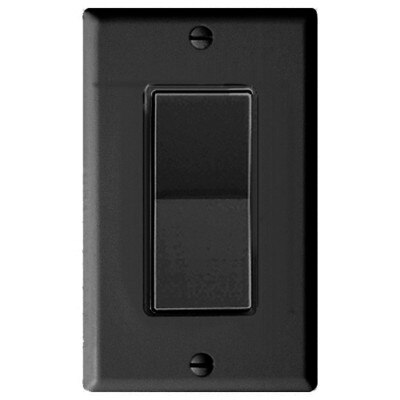

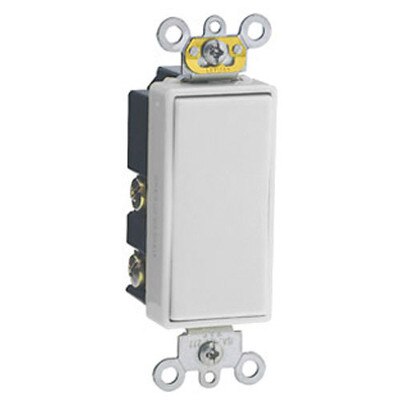

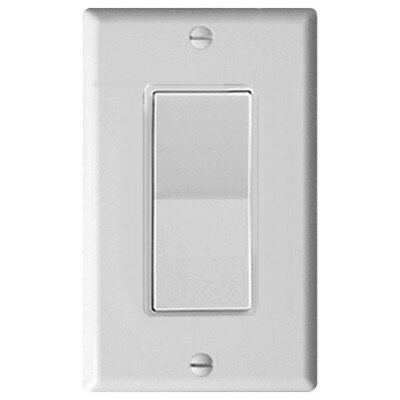

Available in Black and White.
COMPLETE SCENE SOLUTIONS
Leviton's product line features new programmers, controllers and receivers with Scene Lighting Capability for coordinated, whole-house lighting control. Capable of programmable or manual control of lighting and appliances, whole home automation is efficient and reliable.
|
Specifications
|
|
Specifications:
- Ground: Self Grounding
- Feature: Double-Throw Ctr-OFF Maintained Contact
- Amperage: 15 Amp
- Voltage: 120/277 Volt
- HP Rating: 1/2HP-120V 2HP-240V-277V
- Max Amp: 12 Amp
- Termination: Back & Side
- Actuator Material: Thermoplastic
- Body Material: Thermoplastic
- Strap Material: Steel
- Color: White, Black
- Standards and Certifications: UL/CSA
|
|
|
|
|
|
|
|
