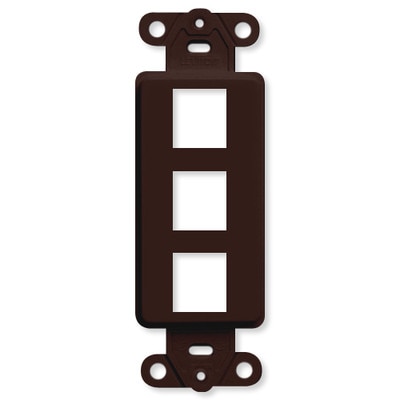

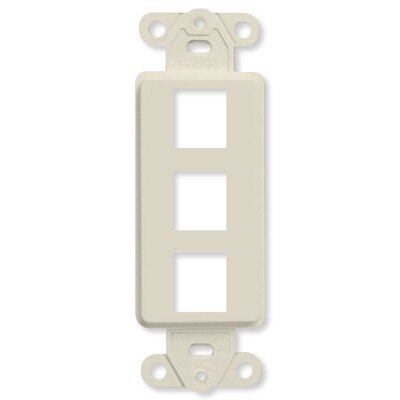

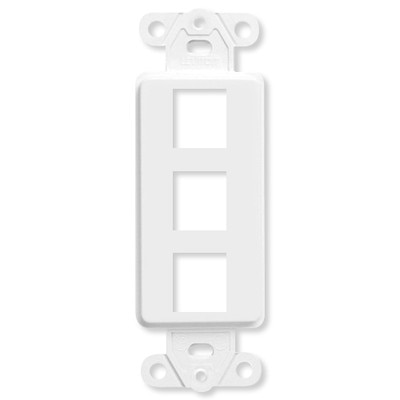

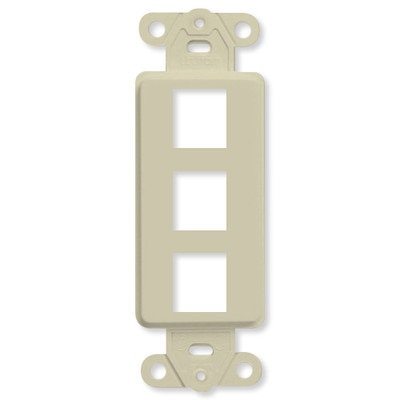

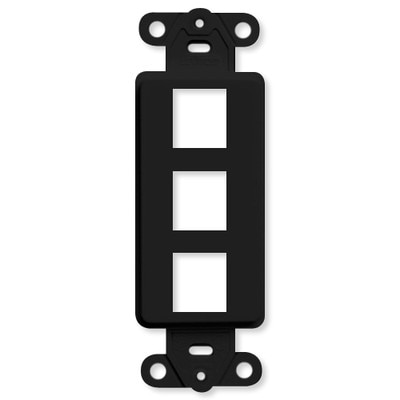

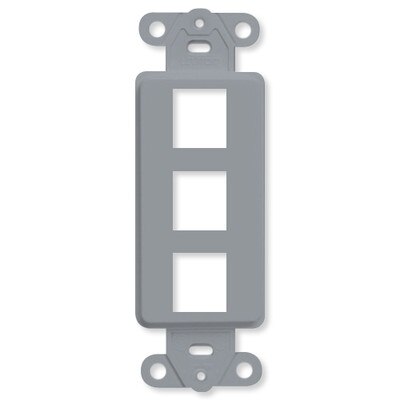

Leviton QuickPort 3-Port Decora Wallplate Insert
LV41643x
Price: $4.85
|
|
|
|
|
 Product Description
|
LEVITON QUICKPORT 3 PORT DECORA INSERT
ADD VOICE, DATA, AUDIO OR VIDEO
Field-configurable Decora style housing that accepts all QuickPort snap-in modules. Use to support voice, data, audio and video applications in NEMA openings where a Decora look is desired.
|
|
DESIGN CONSIDERATIONS
- Use where a Decora look and flush-mounting are important.
- Fits locations where a Decora-style opening exists.
- Single gang.
- If ganged with electrical devices, use the 47610 series of mounting brackets or a barrier box.
- Put blanks (41084-BXB) in unused ports to allow for future expansion.
- To ID ports, use different colored jacks for each application.
UNIQUE Features:
- Mounts completely flush
- True Decora design matches Leviton Decora rocker switches and electrical products
- Fits within minimum NEMA openings
- Compatible with all individual QuickPort modules
- High port density
PHYSICAL SPECIFICATIONS - Dimensions: 4.145"H x 1.405"W x .45"D
- Capacity: 2 to 6 snap-in modules
- Materials: High-impact, fire-retardant plastic rated UL 94V-0
|
|
|
|
|
|
|
|
