Ezlo 10" Touchscreen

Add a Touchscreen Controller to Your Ezlo System

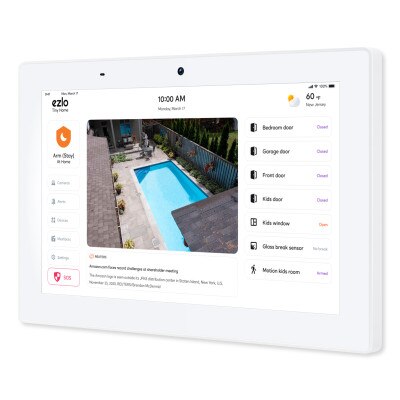

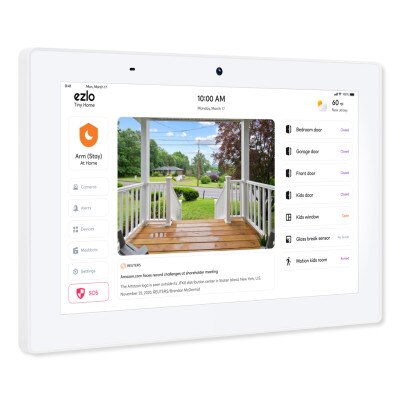

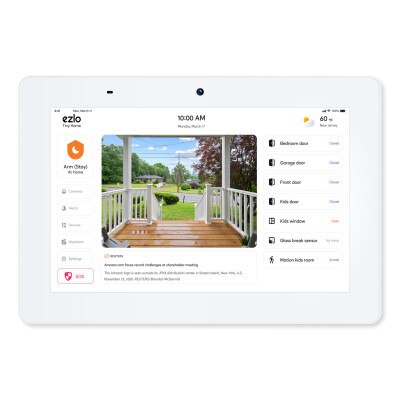

Add a convenient location to control your Ezlo security and automation system with the Ezlo 10" Touchscreen! This Android powered 10" touchscreen tablet controller is equipped with the Ezlo Protect app pre-installed, giving you instant and complete access to your Ezlo security and automation network. 4GB of RAM enables the 10" Touchscreen to coordinate with hundreds of connected devices on your Ezlo network and dozens of automated routines, along with other Android apps available on the Google Play store. The 10" Touchscreen includes a built-in camera and 3.5mm jack with microphone support to enable video communication with connected video doorbells, see footage from networked security cameras, and communicate with other 10" Touchscreens on the same Internet network. Use the 10" Touchscreen to configure automation or security scenes, see live or recorded footage, review the status of devices within your system, manage notifications, and more.

• 10" Android-powered touchscreen controller with Ezlo Protect app pre-installed
• Build custom automation scenes with MeshBots based on your preferences, schedule, and needs for individual or grouped devices
• 3.5mm jack input supports headphone and microphone connection for audio communication with a video doorbell or additional 10" Touchscreens
• Check on live feed from connected cameras or video doorbell or review saved footage
• Mounts onto single-gang wall box or can be placed onto freestanding tablet mount

Powerful & Intuitive User Interface

Control the Ezlo 10" Touchscreen with the Ezlo Protect app for iOS and Android mobile devices (also accessible via PC). The EzloProtect app works with the web browser MiOS Dashboard to bring all of your connected devices into a single user-friendly interface, making initial setup, device inclusion, and scene configuration easy to accomplish.

• Individually configure and control any connected device
• Use pre-set modes to quickly assign commands to all connected devices in your network
• View the status and energy consumption of all connected devices
• Customize your dashboard to access favorite or recently used devices or settings
• Enable Local Mode to keep your automation or security network running without connecting to cloud servers
• Voice Control compatible with Amazon Alexa and Google Home

Dealers and Installers benefit from Ezlo Protect through an exclusive Ezlo Protect Installer app that streamlines the installation process, helps customers start up their automated scenes, manages installation queue appointments, and gives the option to send out surveys to end users when installation is complete.

Ezlo Protect Security Platform Provides Additional Support and Features for Installers and Customers

The Ezlo 10" Touchscreen is compatible with the Ezlo Protect Security Platform, an open, secure, and hardware-agnostic platform that takes full advantage of the capabilities of Ezlo's hubs to enable users to integrate and control thousands of devices from hundreds of partnered companies. Powered by MiOS software, Ezlo Protect provides benefits for installers and end users alike to ensure that your Ezlo network is properly installed and capable of fulfilling any automation or security tasks that you envision. Ezlo Protect is a monthly subscription service available in three tiered packages outlined below:

• EZ Smart Home: The EZ Smart Home package provides additional remote and automation features to your Ezlo Security network including remote notifications, IP Connectivity for all compatible devices, as well as cloud video storage that saves footage from a compatible video camera or doorbell for up to 60 days.
• EZ Smart Security: The EZ Smart Security package includes everything provided by EZ Smart Home, as well as the added benefits of remote monitoring and support from Ezlo's Central Station Monitoring Service and forwarded alarm signals to the Monitoring Service so someone is guaranteed to know when an alert is triggered.
• EZ Smart Security Plus: The EZ Smart Security Plus package includes everything provided by EZ Smart Home and EZ Smart Security, plus 4G LTE connectivity for the Ezlo Secure Security Controller to keep your network connected in the event of your local internet failing.

For more information, visit https://www.ezlo.com/business/ezlo-protect/.

Installation Details

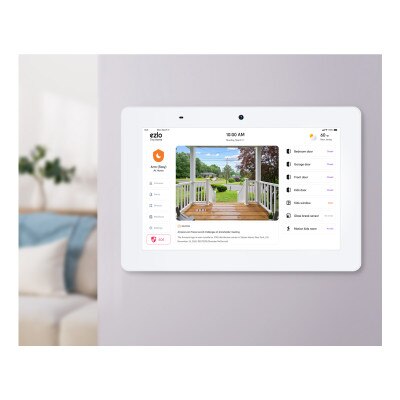

The Ezlo 10" Touchscreen can be mounted onto a wall or placed on a tablet stand with the included wall or tablet brackets. If wall mounted, the 10" Touchscreen's included wall mounting bracket fits over a single-gang box. The 10" Touchscreen is powered by a 12V power adapter or by a Power over Ethernet (PoE) connection and connects to your Internet network via Ethernet or Wi-Fi. If the 10" Touchscreen is powered by the adapter, do not connect the 10" Touchscreen to a PoE compatible device or port.

Contents

• Ezlo 10" Touchscreen
• Power Adapter
• Ethernet Cable
• Wall Mount Bracket
• Tablet Bracket

Notes

• Requires an Internet connection in order to operate.
• Do not use the POE and the DC ports for charging the Ezlo 10" Touchscreen simultaneously.

Ezlo Aims To Connect Everything

Ezlo's goal is to provide automated solutions to everyday tasks by delivering innovative smart devices into your home. With products that promote wide compatibility and connectivity with a multitude of technologies and manufacturers, including FortrezZ and Vera Control, Ezlo aims to make home automation more accessible and easier to improve upon.

• Manufacturer Part #: EZLTS-US
• UPC: 850010800714
• Display: 10 Inch LCD, 1280 x 800 resolution
• Touch Panel: Capacitive 10 points touchscreen
• CPU: RK3566 Quad core cortex A55
• RAM: 4GB
• ROM: 16 GB
• Operating System: Android 11 OS
• Camera: 5MP Front Camera
• Wi-Fi: 802.11b/g/n/ac
• Ethernet: 100M/1000M Ethernet RJ45
• Bluetooth: 5.0
• I/O Port:
• 1 Micro USB OTG
• 1 USB 2.0 host
• 1 USB 3.0 host
• 1 USB Serial port
• 1 HDMI output
• Card Slot: SD card
• Earphone: 3.5mm with microphone support
• Power Supply: 12V/1.5A Adapter
• Battery: 5000mah/3.7V (approximately 12 hours before recharge)
• Dimensions: 10.03 W x 6.77 H x 1.14 D inches (255 W x 172 H x 29 D mm)
• Weight: 1.96 lbs (0.89kg)

»Ezlo EZLTS-US 10 In. Touchscreen Spec Sheet (.pdf)
