ELK M1KP3 M1 LCD Keypad
ELKM1KP3
The ELKM1KP3 is an addressable, surface mount LCD Keypad for the M1 family of Cross Platform Controls. It features a 32...
Price: $149.95
|
|
 Product Description
|
ELK M1 LCD KEYPAD
ELK-M1KP3

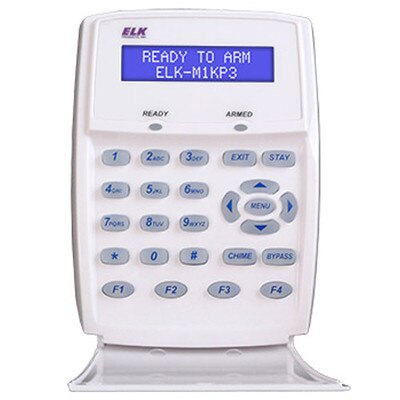

The ELKM1KP3 is an addressable, surface mount LCD Keypad for the M1 family of Cross Platform Controls. It features a 32 character blue/white backlit display, blue lighted keys, 4 programmable function keys, along with the ELK menu navigation keys. The M1KP3 is compatible with "external" 26 bit Wiegand compatible proximity readers, allowing cards or fobs to be used for arming, disarming, or limited door strike controls, etc. It features a hinged door over the keys.
M1 CROSS PLATFORM CONTROL
ELK Products, Inc. designs and manufactures premium quality electronic equipment for the professional security and automation installer. ELK's M1 Cross Platform Control Family integrates rock solid security and full featured automation providing convenient user interfaces and remote control options. M1 can be integrated with other manufacturers systems for complete control of home or business.
|
Specifications
|
|
Elk M1 KP3 LCD Keypad Installation Guide (.pdf)
FEATURES:
- Blue/white Backlighted Hi-Contrast LCD Display
- Four (4) Programmable Function Keys
- Unique Menu Navigation/Direction Keys
- Operates from the M1/EZ8 'RS-485' Data Bus
- Built-in Piezo Sounder with adjustable pitch
- Accepts "External" 26 bit Weigand Prox Reader (Optional)
- Input for 1 Supervised Zone
- One Programmable "Switched Positive" Voltage Output
- Exit, Stay, Chime, and Bypass Keys
- Hinged Door over Keys
SPECIFICATIONS:
- Connection: 6 Pin Plug-in "Flying Lead" Connector (Included)
- Color: White
- Operating Voltage: 13.8 VDC
- Current Draw: ~30 mA Idle (low back light level, sounder silent) ~85 mA Fully Active (max. back light)
- M1KP3 Size: 3.97" W x 5.425" H x 1.19" D
|
|
|
|
|
|
|
|
