ELK M1KP M1 LCD Keypad
ELKM1KP
ELK Products, Inc. designs and manufactures premium quality electronic equipment for the...
Price: $165.95
|
|
 Product Description
|
ELK PRODUCTS KEYPAD FOR M1 SERIES CONTROLLER
M1 SERIES MULTI-FUNCTION KEYPAD

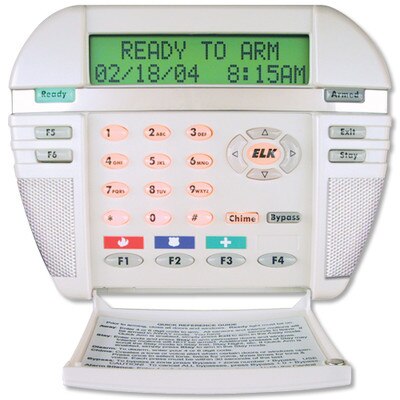

The ELK Products M1 Series Controller Keypad is an addressable LCD Keypad for the M1 Cross Platform Controls. It features a 32 character back lighted display with adjustable intensity and extra large character fonts for ease of readability. The Multi-Function Keypad includes a plug-in connector on the back for adding an internal proximity reader (ELKM1PR) or for interfacing to virtually any external 26 bit Wiegand compatible proximity reader. Proximity cards/fobs can be used for touchless arming, disarming, door strike control, etc.
M1 CROSS PLATFORM CONTROL
ELK Products, Inc. designs and manufactures premium quality electronic equipment for the professional security and automation installer. ELK's M1 Cross Platform Control Family integrates rock solid security and full featured automation providing convenient user interfaces and remote control options. M1 can be integrated with other manufacturers systems for complete control of home or business.
|
Specifications
|
|
Elk LCD Keypad for M1 Series Controller Installation Guide (.pdf)
FEATURES:
- Large, Easy to Read Characters
- Back lighted with Adjustable Intensity
- Removable Hinged Door
- Programmable Function Keys (6)
- Unique Menu Navigation/Direction Keys
- Operates on 4-Wires (M1 Data Bus)
- Built-in Speaker with Adjustable Beep Tone and Volume
- Accepts Plug-in Proximity Card Reader (Optional)
- Input for 1 Supervised Zone
- One Programmable Voltage Output
- Exit, Stay, Chime, and Bypass Keys
SPECIFICATIONS:
- Input Connection: 6 Pin Plug-in "Flying Lead" Connector Included
- Proximity Connection: 5 Pin Plug-in "Flying Lead" Connector (optional ELK-WO35A required for external proximity reader)
- Color: Glacier White
- Operating Voltage: 13.8 VDC
- Current Draw: 40 - 50 mA Idle (low back light level, sounder silent)
- 160 mA Fully Active (max. back light & sounder active)
- Size: 6.875" W x 5.25" H x 1.375 D
|
|
