Cat6 Cable, Plenum Rated, 1,000'

Strong, Flexible Cat6 Plenum-Rated Cable

Ideal for carrying signals in high-speed applications for structured wiring, computers, and networks, this Cat6 Cable (Plenum Rated, 1,000') is a UTP (unshielded twisted pair) cable (550 MHz 23 AWG) with insulated solid bare copper conductors in a PVC jacket. Plenum rated for use in air circulation spaces, the cable's jacket meets low smoke and low flame requirements to reduce the spread of flames in the event of fire. The round, flexible cable includes a ripcord and the SCP Cable Labeling System with sequential markings for easy identification, and comes in boxes of 1,000 feet.

• Cat6 cable in a PVC jacket for high-speed applications
• Plenum rated jacket meets low smoke and low flame requirements
• Ideal for use in structured wiring, computers, and networks
• Meets TIA/EIA 568-C.2 Category 6 standards
• Solid bare copper center conductor (23 AWG, 550 MHz)
• Fluorinated ethylene propylene (FEP) insulation surrounds conductor

NOTICE: This part is a heavy/dimensional product; it is not eligible for free shipping. Wire products are not returnable.

Quality Installations Deserve Quality Products

Structured Cable Products (SCP) is a manufacturer of high quality structured wiring products, security, fire alarm, speaker as well as LAN cable and accessories. With over 15 years of manufacturing and distribution experience of quality cable and accessories SCP can provide all of your cable and accessory solutions.

• Manufacturer Part #:

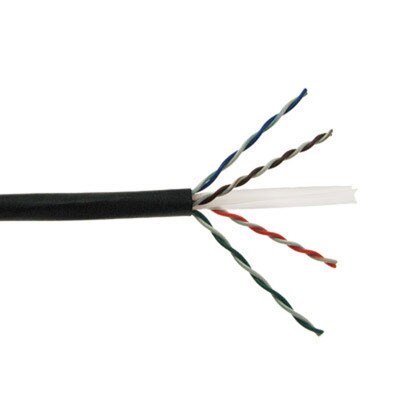

• Black: CAT6-P-BK

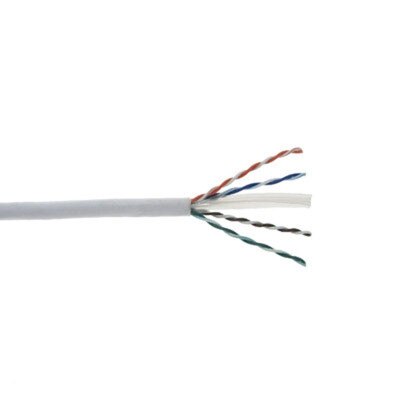

• White: CAT6-P-WH
• Sheath Printing: STRUCTURED CABLE PRODUCTS P/N CAT6-P – CAT6 ENHANCED 550 MHz UTP VERIFIED TO ANSI/TIA-568-C.2 E198134 -Z (UL) CMP 4PR 23AWG 75C– – –EU RoHS EC **** FEET MM/YY
• Category: U/UTP CAT6-4P-CMP PVC
• Test Standard: ISO/IEC11801, TIA-568-C.2 YD/T1019
• Conductor:
• Material: SOLID-Bare Copper
• Nom. O.D.: 0.565 mm, ±0.005 mm
• Insulation:
• Material: FEP
• Diameter: 1.00 mm ± 0.04 mm
• Sheath:
• Thickness: 0.45 ±0.05 mm
• External O.D.: 5.8 mm ± 0.4 mm
• Surface: Clean, Frap, Satiation
• Material: CMP PVC (complies RoHS)
• Surface Printing:
• Letter Height: 3.0 mm ±0.3mm
• Print Error / Space: <= ±0.5 percent, 1m
• Core Color:
• Blue: White-Blue
• Orange: White-Orange
• Green: White-Green
• Brown: White-Brown
• Packing: Box
• Weight: NW: 13.3kg; GW: 16.6kg
• Packing Length: 305m ±1.5m
• Rip-Cord: Yes
• Drain Wire: No

Sheath Physical Properties

• Before Aging:
• Tensile Strength: >=13.5 Mpa
• Elongation: >=150 percent
• Aging Period: 100°C x 24hrs x 7d
• After Aging:
• Tensile Strength: >=12.5 Mpa
• Elongation: >=125 percent
• Cold Bend Test: -20°C 4 hours; No Cracking; 8x Cable O.D.

Electrical Characteristics (20°C)

• 1.0-250.0MHz, Characteristic Impedance: 100 ohms ±15 ohms
• 1.0-250.0MHz, Delay Skew:<=45 ns/100m
• Velocity Of Propagation: 72 percent (NVP)
• DC Resistance Max: 9.5 ohms/100m
• DC Conductor Resistance Unbalance Max: 5.0 percent

»SCP CAT6-P-XX AWG Plenum Cat6 Cable Spec Sheet (.pdf)
