ABB-Welcome IP Keypad Module

Keypad Module For ABB-Welcome IP Door Entry Systems

Ideal for a building that incorporates numerous residences or offices, the ABB-Welcome IP Keypad Module installs in a custom ABB-Welcome IP outdoor station to let you attach a calling code and/or a calling name to each indoor station or each entire residence/office in the system. This allows a visitor to easily call the precise location desired. They can either enter a known calling code, or search through your directory of names (Display Module required, sold separately) to find the person/location they need to call.

• Initiates calls to indoor stations in the ABB-Welcome IP System
• Optionally works with Display Module to support names
• Enter calling code or choose name in menu to initiate call
• Backlight ensures clear visibility at night
• Allows customized passwords
• Easily snaps into place with other ABB-Welcome IP modules

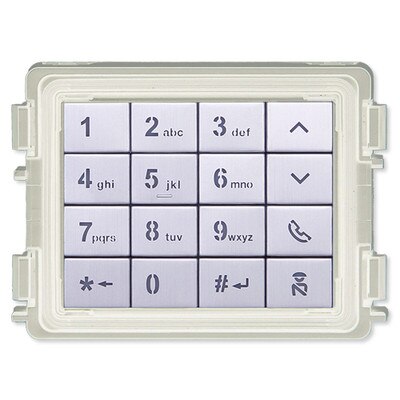

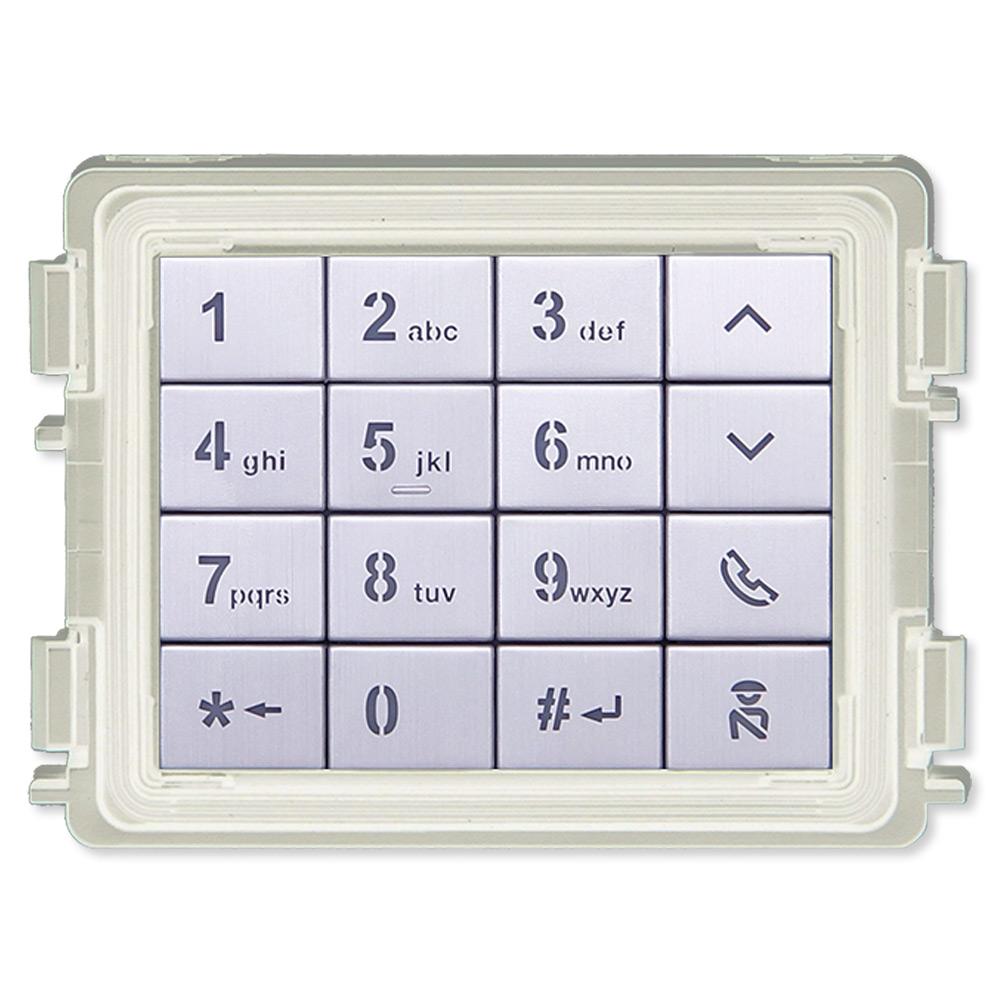

The keypad has 16 buttons total, including:

• (10) Numbered/Lettered Buttons (0-9, A-Z)
• (2) Arrow Buttons (Up, Down)
• (1) Pound Sign (#) with Enter Arrow
• (1) Star Sign (*) with Backspace Arrow
• (1) Telephone Button
• (1) Attendant Button

Installation Details

As an outdoor station module, the ABB-Welcome IP Keypad Module is designed as a modular device that easily snaps into place with other modules, either above or below, depending on your custom outdoor station configuration. It's then installed into an ABB Flush Mounted Box (sold separately) at the size of your choosing. The module should be combined with at least a video/audio module (sold separately) in a multi-gang box. Once your box size is chosen, a same-size ABB Faceplate is also required to finish the custom-built outdoor station.

After the module is connected, it simply snaps into the box and the faceplate snaps over it onto the box. The box can be flush- or surface-mounted with accessories.

Contents

• ABB-Welcome IP Keypad Module
• Manual

NOTES: Only compatible with ABB-Welcome IP outdoor stations.

ABB-Welcome IP: Power and Connectivity

Bringing innovative features and design to a new door communication system, ABB-Welcome IP unfolds the true potential of IP technology. It uses the power of LAN connectivity and PoE connections to integrate ABB-Welcome IP devices with other devices, such as IP surveillance cameras, creating one system for all needs. PoE connection makes additional wires needless, making installation easier and quicker.

Depending on available equipment and construction of the building, ABB-Welcome IP devices share the LAN network cables with other systems for exchanging information and providing power to connected ABB-Welcome IP devices. IP gateways can be used when interlacing seperate networks, which is practical when connecting a door system with a home network.

ABB: Power & Productivity For A Better World

ABB (ASEA Brown Boveri), officially branded the ABB Group, is one of the most expansive engineering corporations in the world. From its hometown in Zurich, Switzerland, this Swedish-Swiss power and automation manufacturer spans across ~100 countries, bringing its technology to every corner of the globe. With history harking back to the 1880's, ABB is a renowned behemoth of cutting-edge development. Create a better world in your own corner of the world with products by ABB.

• Manufacturer Part #:

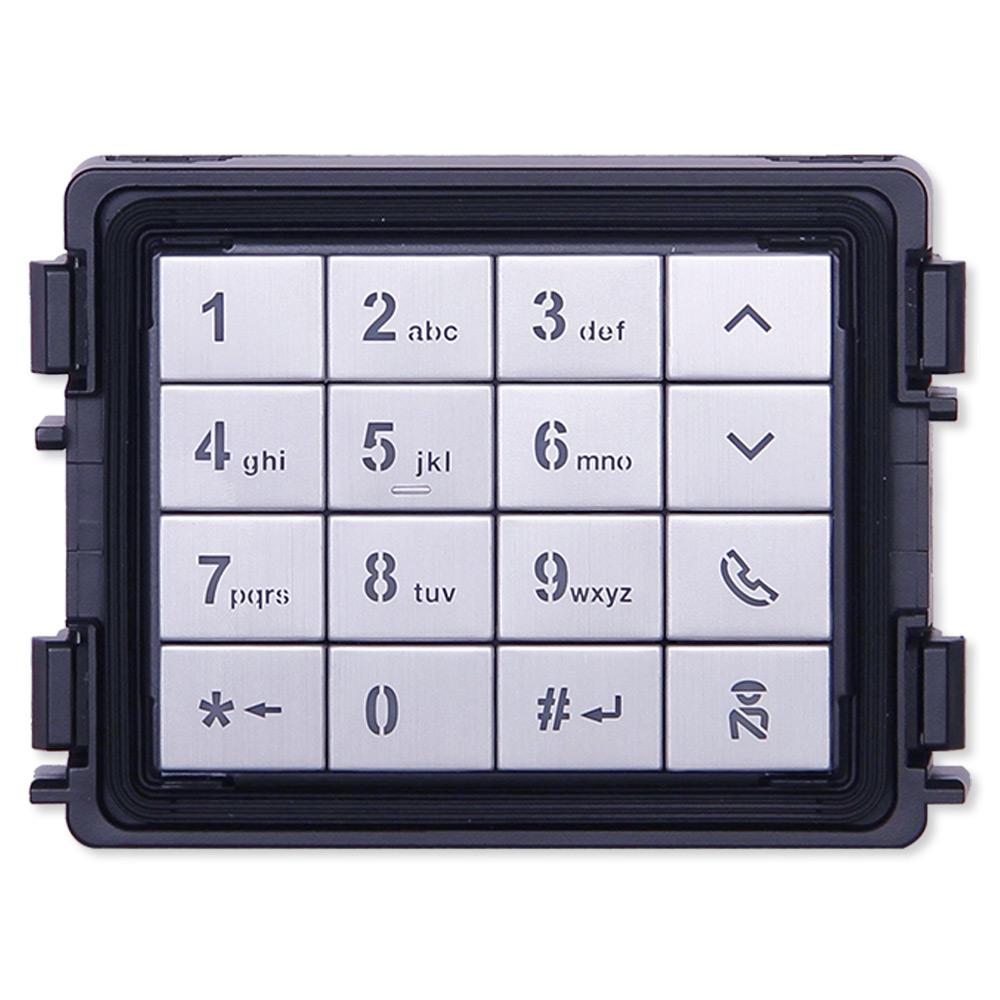

• 51381K-S (Black)
• 51381K-W (White)
• Rating Voltage: 24 V DC
• Operating Voltage Range: 20-27 V DC
• Rating Current:
• 27 V DC, 20 mA
• 24 V DC, 20 mA
• Operating Temperature: -40°F to 131°F ( -40 °C to 55 °C)
• Dimensions: 3.81 x 2.83 x 0.91 inches (97 x 72 x 23 mm)
