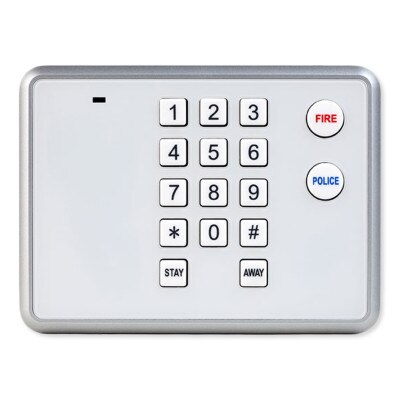

2GIG Wireless Keypad

SKU: LN2GIGPAD1345

Usually ships in 3-5 days.

$54.95

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Extra Control Panel for GoControl

Perfect for a back door or garage, the 2GIG Wireless Keypad provides a simple, secondary point of control for your GoControl security system. You can arm your system in Stay or Away mode, disarm, and activate fire/panic modes. The wireless, battery-powered keypad easily mounts to a wall up to 350 feet away from the main control panel.

  • Security keypad with hard buttons
  • Works with the GoControl panel
  • Panel supports up to 4 keypads
  • Wireless range up to 350 feet

Contents

  • Wireless Keypad
  • (2) CR2032 Batteries
  • (4) Phillip's Head Screws
  • (4) Plastic Wall Anchors
  • Installation Instructions

Note: Requires a 2GIG GoControl Panel.

Innovation Drives 2GIG Technology

Now under Nortek's family of Linear products, 2GIG offers intuitive and creative home technology with its premier self-contained, all-in-one security and home automation system. 2GIG's GoControl system has become a leading control hub for Z-Wave wireless systems, has and won numerous industry awards, including TechHome's 2011 Security Product of the Year and the 2012 Overall Maximum Impact Award at Electronic Security Expo (ESX). With 2GIG in control, users experience technology they never thought possible.

Specifications

  • Manufacturer Part #: 2GIG-PAD1-345
  • Wireless Signal Range: 350 feet, open air, with 2GIG Wireless Control Panel
  • Code Outputs: Key press 0-9; *; #; STAY; AWAY; FIRE; POLICE; Supervisory; Low Battery
  • Transmitter Frequency: 345.000 MHz (crystal controlled)
  • Transmitter Frequency Tolerance: ±15kHz
  • Transmitter Bandwidth: 24kHz
  • Modulation Type: Amplitude Shift Keying-On/Off Keying (ASK-OOK)
  • Unique ID Codes: Over one million different code combinations
  • Supervisory Interval: 70 minutes
  • Peak Field Strength: Typical 50,000 uV/m at 3m
  • Dimensions: 5.73(W) x 4.25(h) x 1.00(D) inches (14.6 x 0.8 x 2.5 cm)
  • Weight: 7.75 ounces (219.7 g)
  • Housing Material: ABS plastic
  • Color: White with gray trim
  • Operating Temperature: 32° to 104° F (0° to 40° C)
  • Relative Humidity: 5 to 95 percent Non-Condensing
  • Battery: Two (2) Panasonic CR2032 or equivalent Lithium batteries (installed)
  • Regulatory Listings: ETL, FCC Part 15, Industry Canada
  • Included Accessories: Four (4) Phillip’s head screws, four (4) plastic wall anchors
  • Warranty: 2-Year Limited

Downloads

»2GIG 2GIG-KEY2-345 Wireless Keypad User Manual (.pdf)
