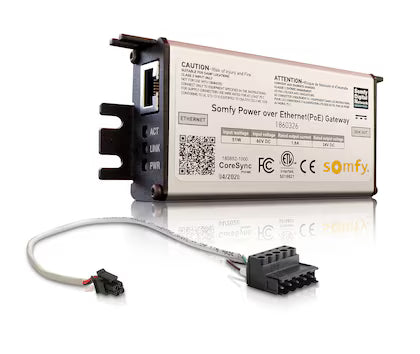

Somfy SDN Power over Ethernet (PoE) Kit (Gateway and 9025010 Adaptor)

DELIVERS POWER AND ETHERNET-BASED CONNECTIVITY

The Somfy SDN PoE Gateway provides up to 51W of power and Ethernet connectivity for Somfy Digital Network (SDN) shade and drapery motors. It connects using standard Cat 5e/6 UTP cable and supports the Somfy Synergy™ API and CoAP Digital Building API for integration with compatible control systems, including the Molex Transcend Network Connected System. The kit includes Gateway 180326 and adapter 9025010.

• Provides up to 51W of power for SDN motors
• Supports Ethernet-based connectivity using Cat 5e/6 UTP cable
• Compatible with Molex Transcend Control System
• Supports Somfy Synergy™ API and CoAP Digital Building API
• Supports IEEE 802.3bt and Cisco UPoE
• Can power single or multiple motors
• Programs up to 16 intermediate positions per motor
• Provides group control with stop and align commands
• Includes adapter cable with RJ45 and 4-pin connections
• Supports ANSI/TIA/EIA 568A and 568B wiring standards
• Listed for safe operation under UL 2108 and UL 1310
• Must not be installed on the same subnet as Molex Gateways
• Kit includes: Gateway 180326 and adapter 9025010

Somfy Digital Network™ (SDN): Intelligent Wired Shading

Install robust, cost-efficient, and powerful shade controls with Somfy Digital Network (SDN) devices. Designed specifically to provide intelligent motors and controls for large scale shading projects, the SDN system offers a professional-grade solution to creating an interconnected home of intelligent devices.

SDN technology is based on standard network architecture that transmits digital signals over a twisted pair bus line. It uses the RS-485 standard with Category 5 UTP cable, Ethernet patch cables, RJ45 connectors and splitters for communication between devices.

SDN System Benefits

• Differential signaling, low data speed communication and high impedance devices
• Single bus segment can be up to 4,000 feet with 255 devices
• Free wiring topology with no termination resistors
• Noise and interference is minimized by using capacitance controlled, unshielded twisted pair cable
• System scalability is virtually unlimited
• No need for special wire or connectors
• Bus-connected control devices are powered directly from the bus line using a 24VDC class 2 power supply
