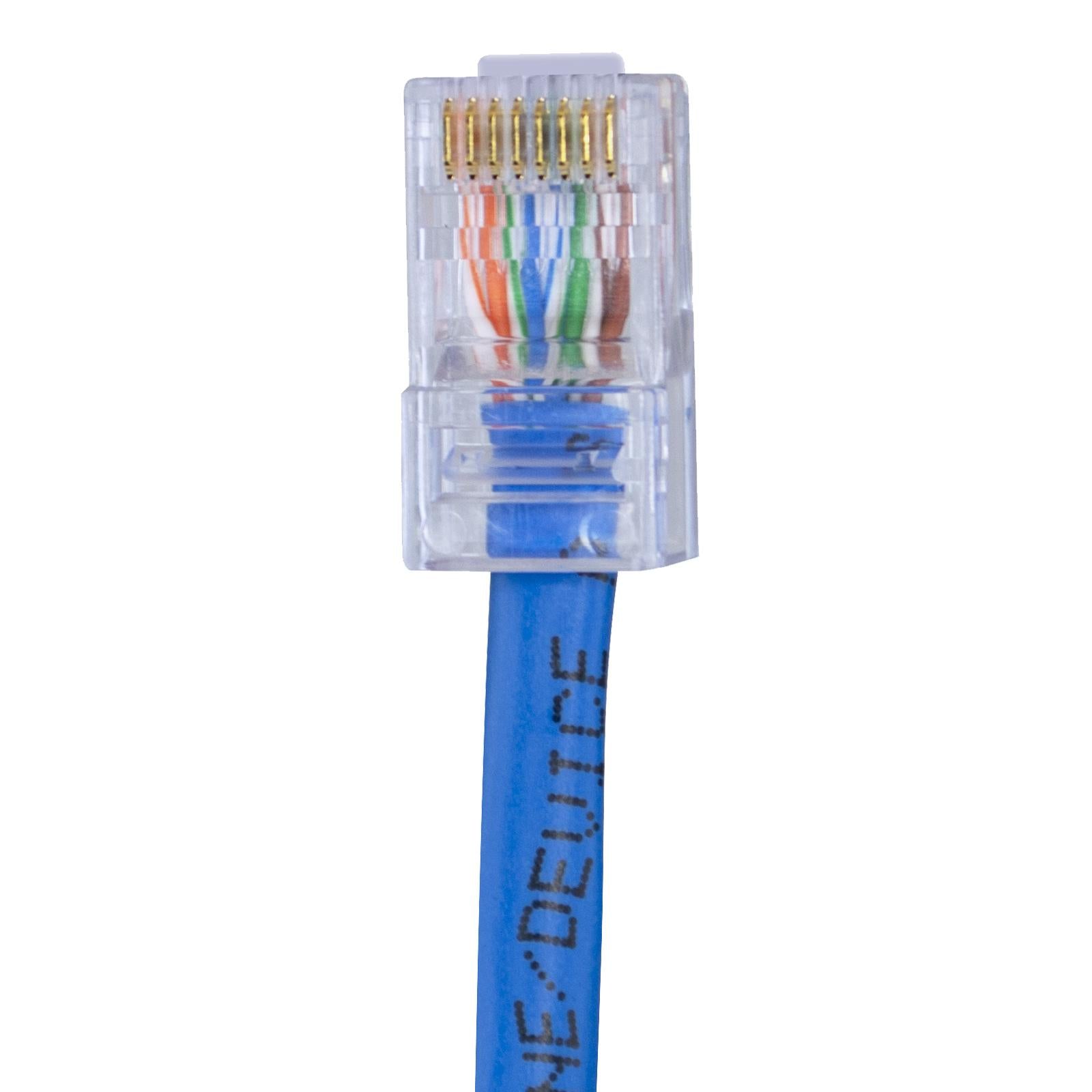

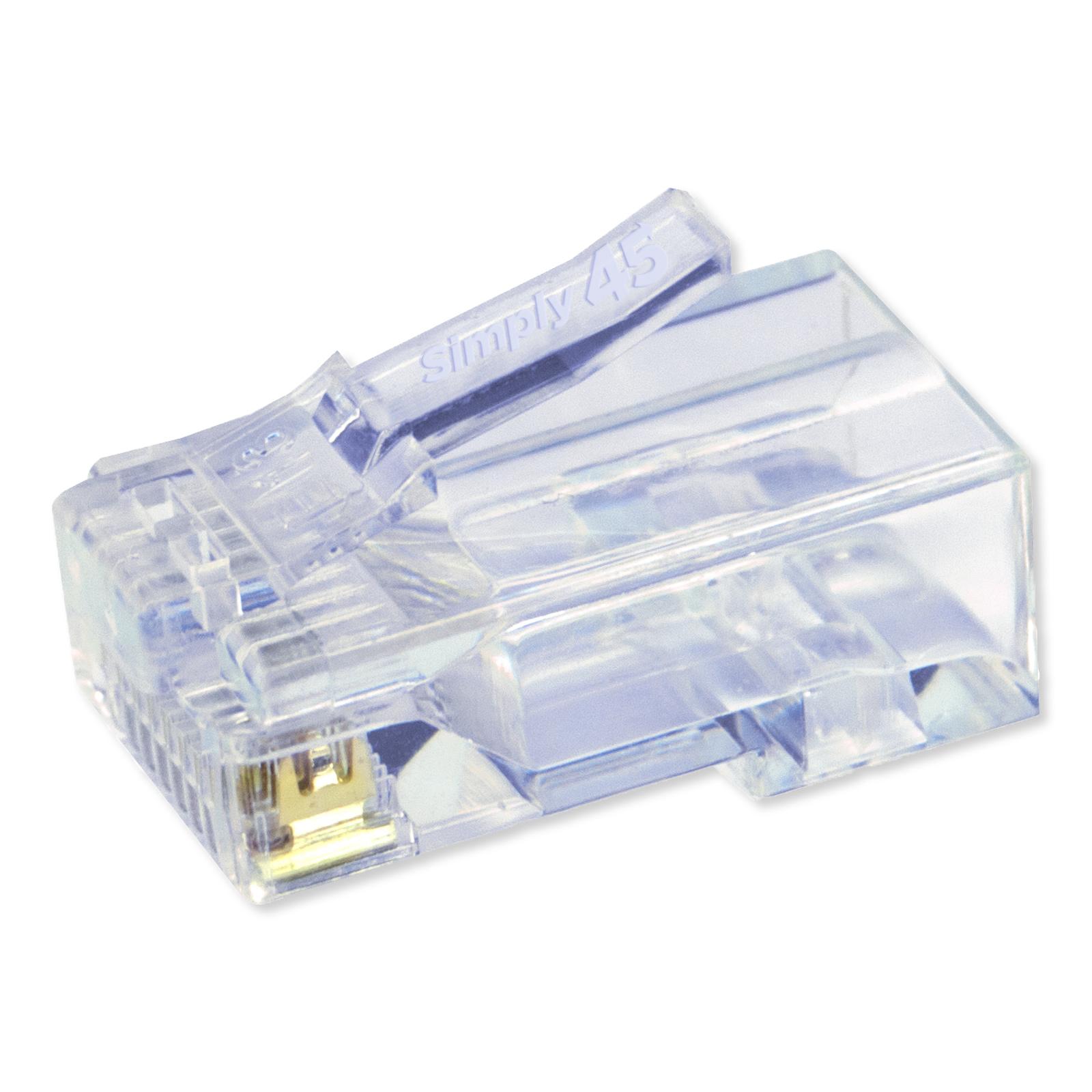

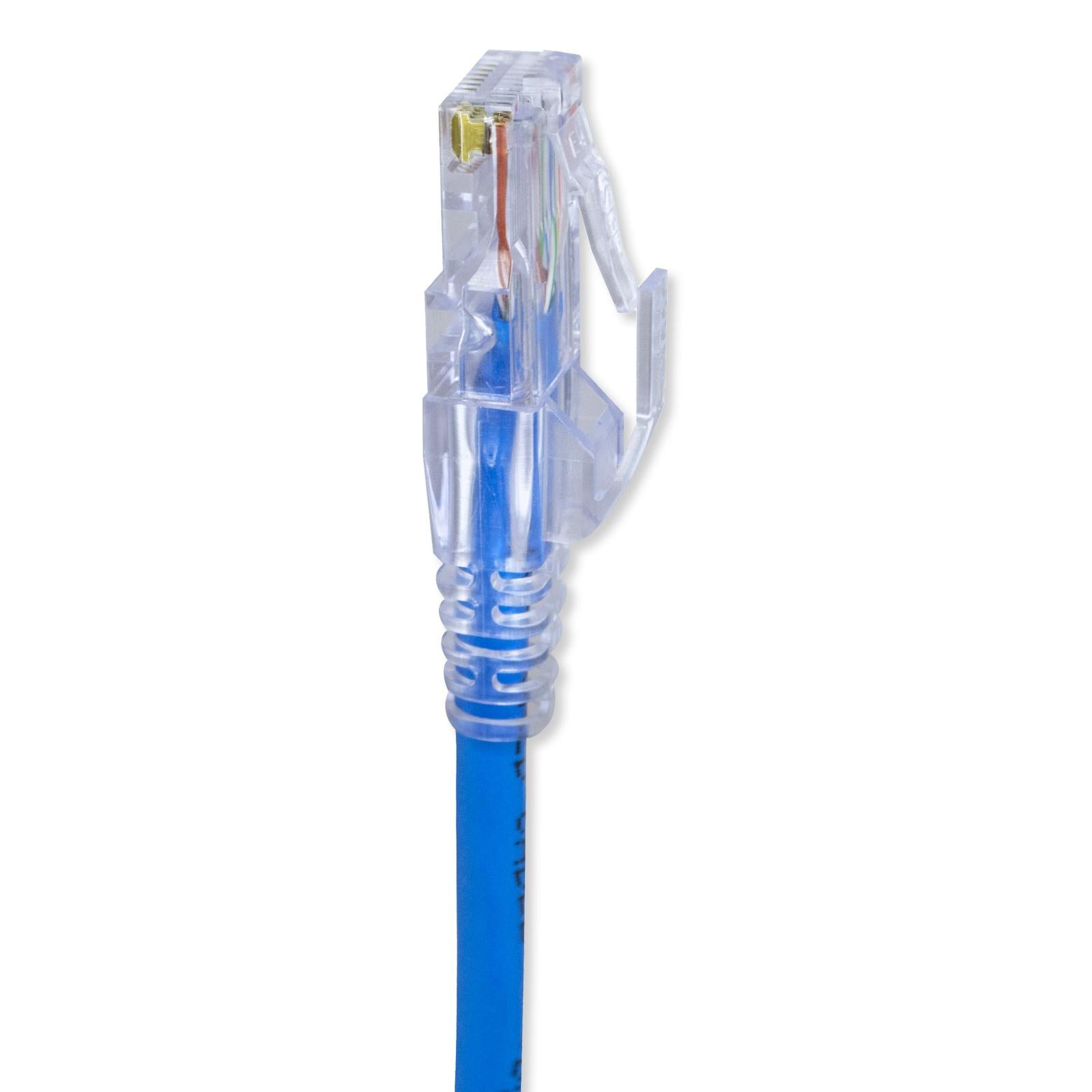

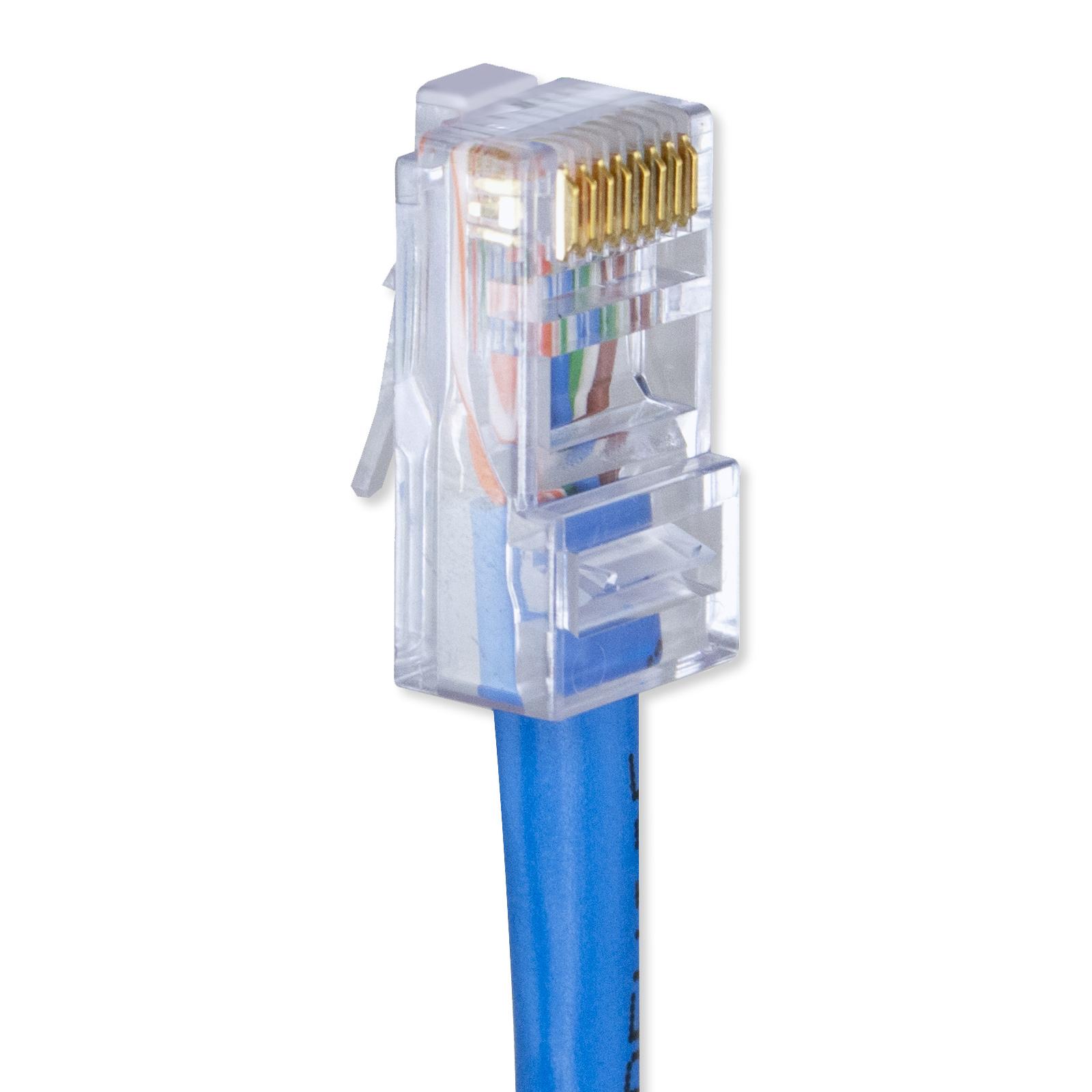

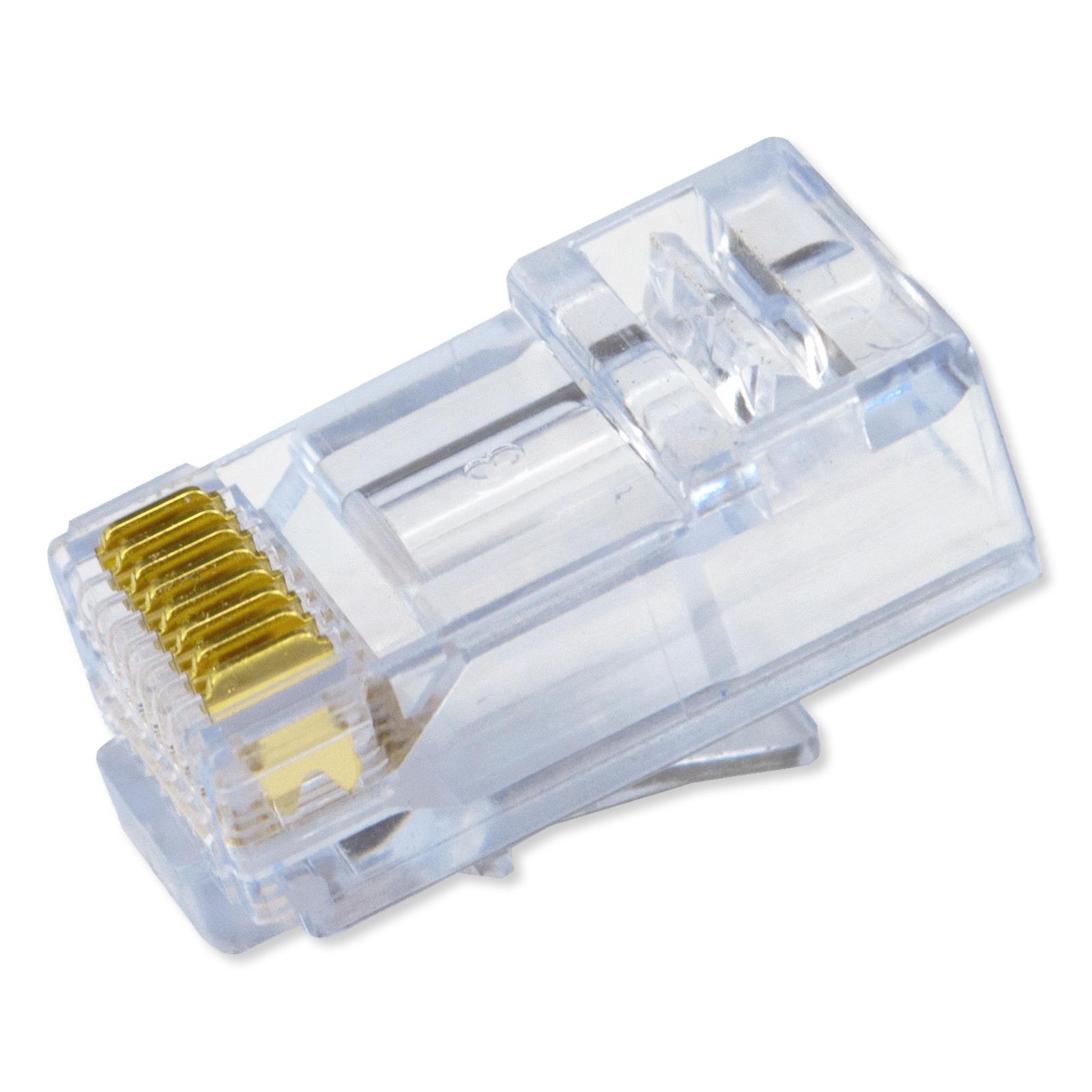

  • Simply45 Standard 8P8C RJ45 Modular Plug for Cat5E UTP Unshielded (100 Pack)

    GSS451000

    For Use With Unshielded Twisted Pair Cat5e LAN Cables

    Simply45 Logo

    Improve the performance and stability of your wiring projects with the Simply45 Standard 8P8C RJ45 Modular Plug for Cat5E UTP Unshielded (100 Pack). This pack of modular plugs is specifically designed for use with unshielded LAN cables (load bars not required). Unlike most pass-through RJ45 modular plugs that use a 2-prong design, the Standard 8P8C RJ45 Modular Plug uses a 3-prong pin design that provides 3 points of contact with the copper wire and not 2. This enhances electrical performance and signal integrity. It also has a unique internal design, allowing the LAN cable to be inserted further in the RJ45 plug to minimize the length of untwisted wires, which improves performance. It's light bl

    • Manufacturer Part #: S45-1000
    • UPC: 817777017755
    • Performance: Meets or Exceeds ANSI/TIA 568-D.2; ISO/IEC 11801 Class D; ANSI/TIA 1096-A; IEC 60603-7
    • Wire Cond(s) OD: 24 AWG Solid/ 28-26 AWG Stranded: 0.037 – 0.041 inches (0.95mm – 1.05mm)
    • Max LAN Cable OD: 6.4mm (0.252")
    • Supports PoE/PoH: Yes
    • Cable Fire Resistance Ratings: Commercial Rated, CMP, CMR, CM, CMX, LSZH up to B2ca EuroClass
    • Flame Auto Extinguish: UL 94V-0, IEC 60695-11-10
    • Contact Material: Phosphor Bronze – .012" thick
    • Contact Plating: Min 50 Micro-Inch Pure Gold – 24 Carat Hard Gold Plate in contact area over 100 Micro-Inch Min
    • Nickel Plating: Exceeds ANSI/TIA-1096-A specifications (formerly FCC Part 68)
    • P
