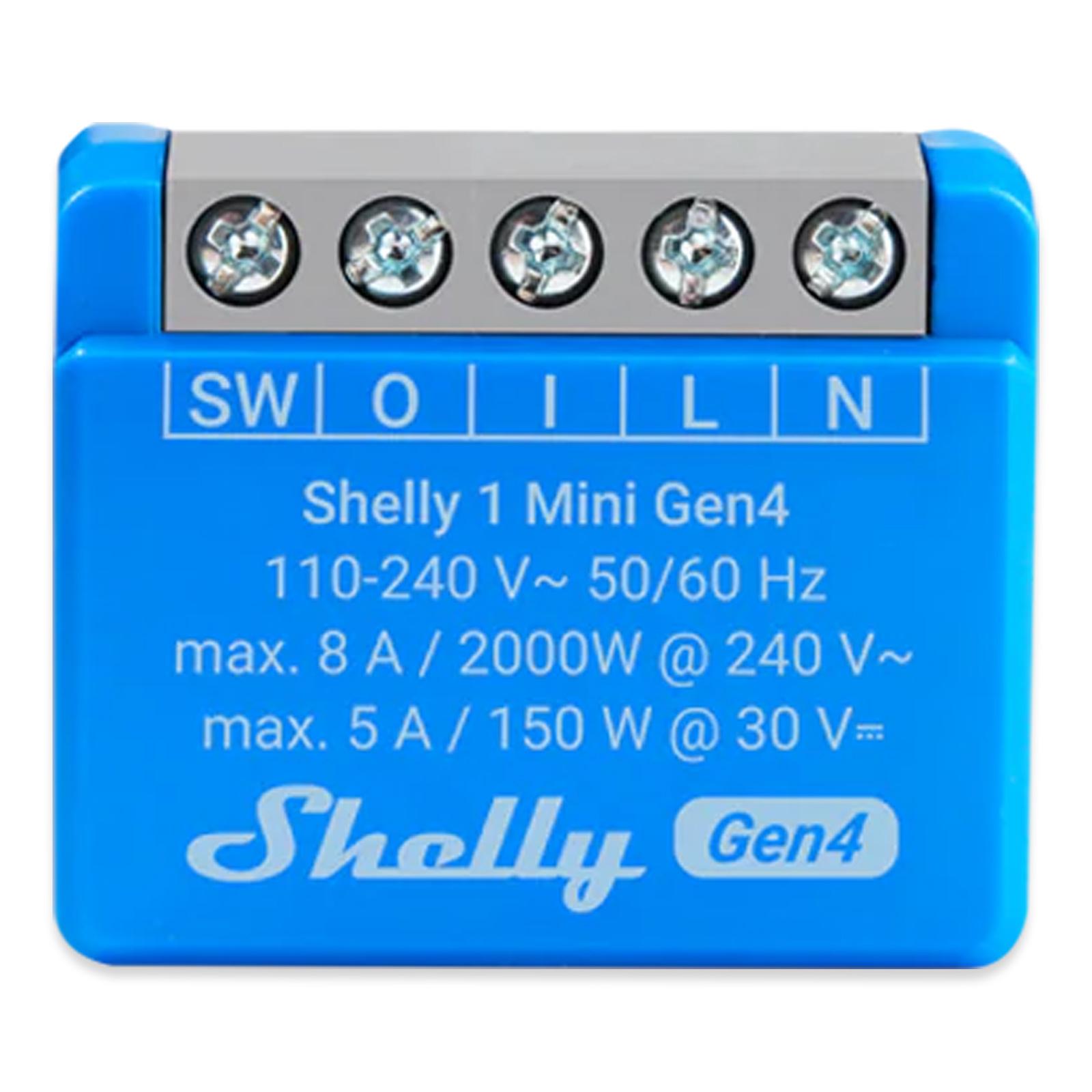

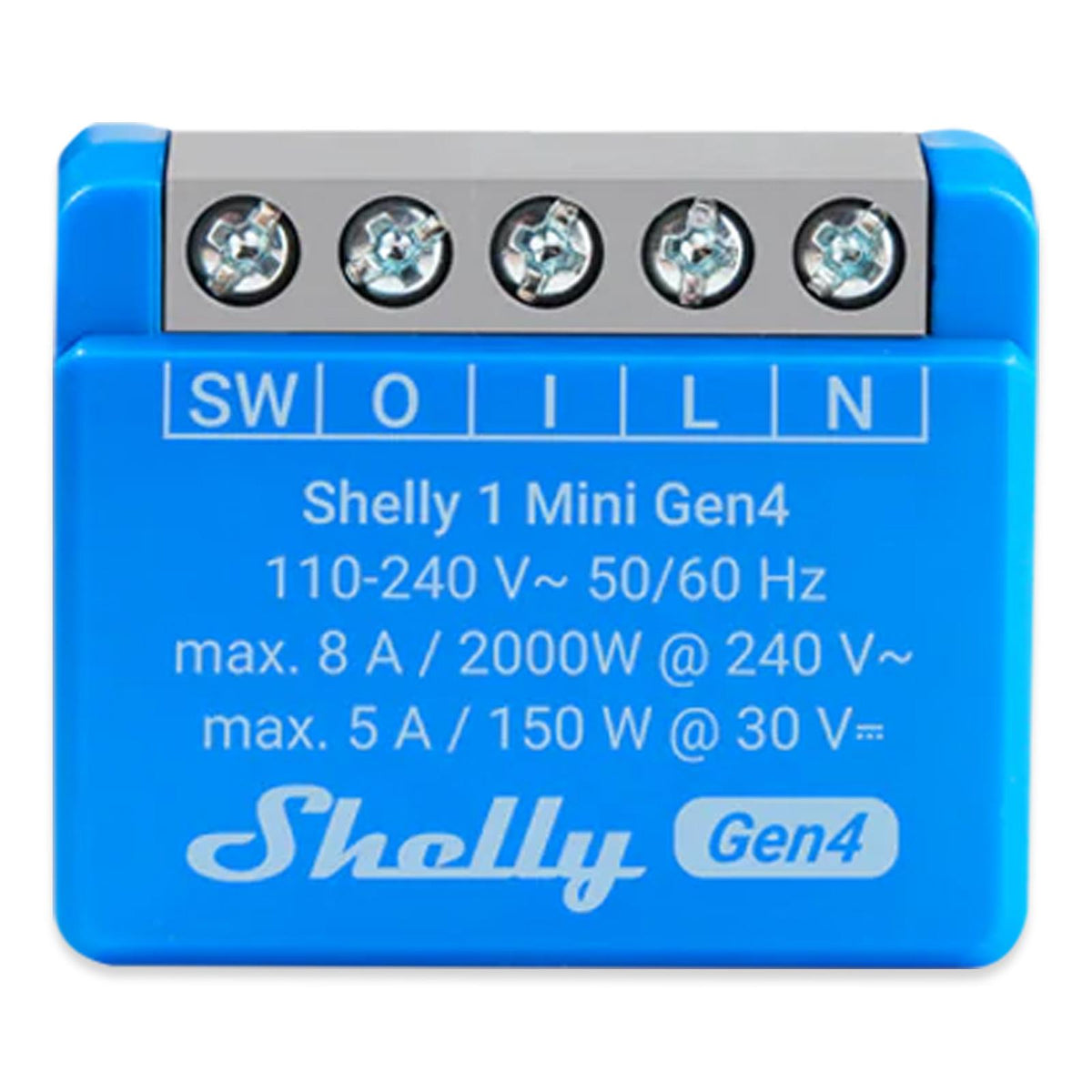

Shelly 1 Mini Gen4 Compact Smart Switch

Add Multiprotocol Connectivity To Lights And Appliances

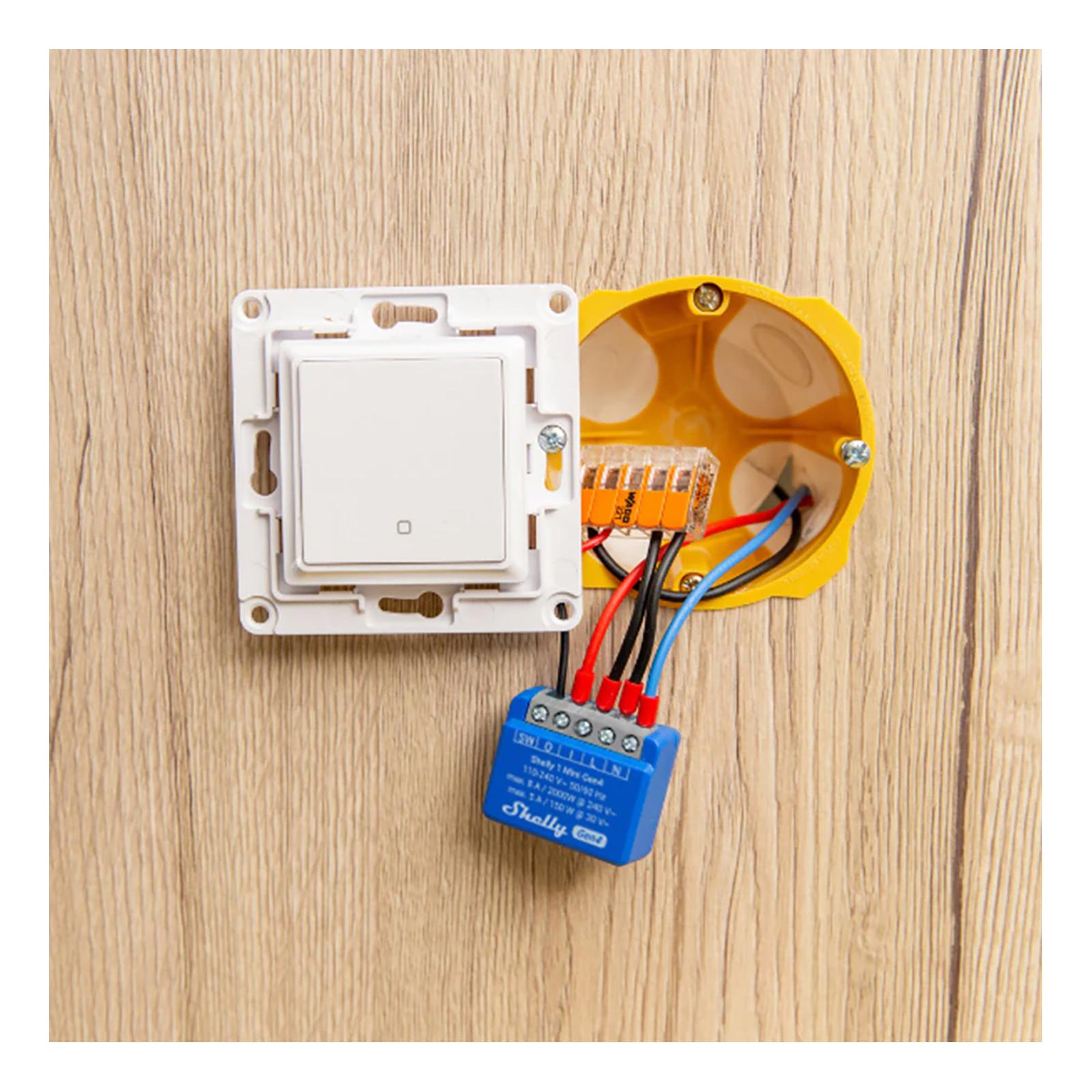

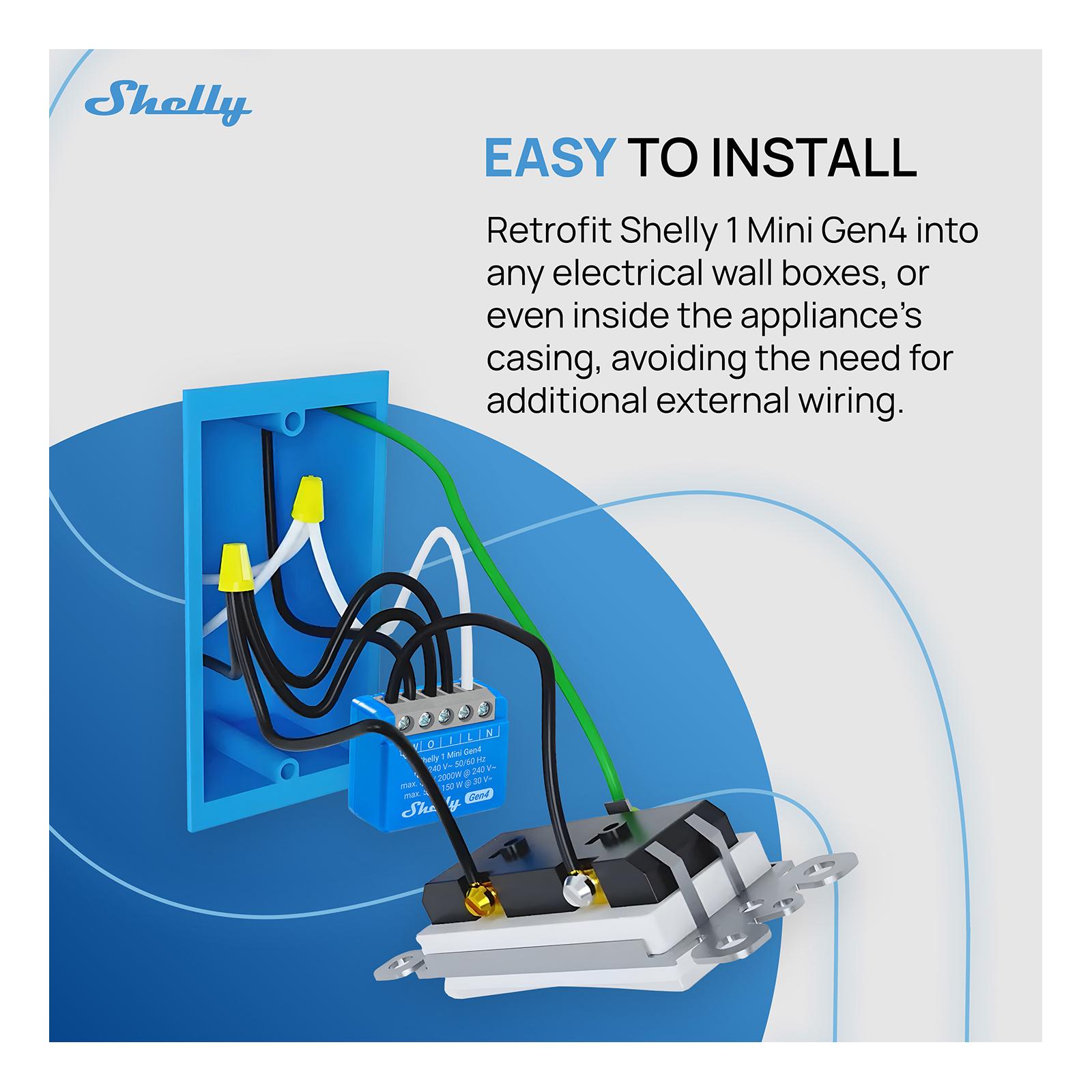

Upgrade an existing light switch, wall outlet, or electrical appliance to include wireless control and connectivity with the Shelly 1 Mini Gen4 Compact Smart Switch. This compact smart switch installs behind a wall switch, outlet, or in a tight space to add Wi-Fi, Zigbee, Matter, or Bluetooth remote control of lights and connected devices. It features 1 switch/button input, 2 power supply inputs, and 1 potential-free contacts relay input. It's compatible with various load types, such as resistive loads (incandescent bulbs and heating devices), capacitive loads (capacitor banks, electronic equipment, and motor start capacitors), and inductive loads (LED light drivers, transformers, fans, refrigerators, and air conditioners).

The Shelly 1 Mini Gen4 does not need a smart hub to operate and can be easily controlled via the Shelly Smart Control app (for iOS and Android). It also works with voice assistants like Amazon Alexa, Google Assistant, and Siri. Once integrated into your home network, you can create automation scenes, set schedules, and trigger local actions. For example, install a Shelly 1 Mini Gen4 behind your bedroom light switch and another with your thermostat. This lets you create an automation scene that turns on the bedroom light and heater together so you can wake up more easily in a warm, comfortable room.

• Adds Wi-Fi, Zigbee, Matter, or Bluetooth functionality by installing behind wall outlets or light switches – no smart hub required
• Ideal for lights, garage doors, fan or ventilation control, door locks, irrigation pumps, heaters, and other small appliances
• Supports up to 8 A at 240 VAC and 5 A at 30 VDC and offers overheating protection
• Works as a Wi-Fi and Zigbee range extender and Bluetooth gateway
• Compatible with SmartThings and voice assistants, including Amazon Alexa and Google Assistant, as well as Siri through Matter integration
• Supports scripting, HTTPS, MQTTS, Inbound and Outbound Web Sockets

Shelly Smart Control App – Everything at Home Connected

Enjoy enhanced home automation control and precise monitoring of your Shelly devices no matter where you are with the Shelly Smart Control app. The app connects to Shelly's cloud service to help you control your connected devices remotely and send notifications for all automated events in your home directly to your smart device. You can easily configure devices and manage their settings individually, or you can create personalized scenes by combining Shelly devices to trigger certain actions in your home automation. The Shelly Smart Control App supports real-time power metering with power management (PM) devices, smart plugs, and smart bulbs in order to allow you to build complex automation solutions for improved energy efficiency and lower electricity bills.

• Easy Inclusion and Control: Include and name new devices in the Shelly Smart Control app, assign them to the rooms they are located in, and group them into scheduled or automated scenes.
• Custom Dashboard: Create multiple dashboards for quick access to your preferred devices, rooms, and scenes. Issue commands using your dashboards or your preferred voice assistant towards individual devices or a group of devices.
• Smart Scenes: Combine multiple devices into one smart scene with pre-set triggered actions. Lower the lights when the TV is turned on for a "Movie night". Cut off the power and send a notification when a space heater has been left on past 9am while you are "Away at Work".
• Custom Schedules and Timers: Teach your home how to make you more comfortable by setting custom schedules based on your agenda. You can set a Shelly controlled switch to turn on the outdoor lights at 7:00 PM on workdays, or turn on your heater an hour before you return from work.
• Energy Monitoring: An energy consumption panel gives you a detailed view of your live and recorded energy usage from devices controlled by Shelly products. The information is stored in a free cloud and fully accessible to you for further analysis of your energy consumption habits.
• Works with Alexa: The Shelly Smart Control app is natively compatible with Amazon Alexa.

Contents

• Shelly 1 Mini Gen4 Compact Smart Switch
• Manual

NOTE: Requires connection to a Wi-Fi network.

Shelly Provides A 100% Wireless Smart Home

Shelly creates innovative and affordable smart home devices for residential and business applications. Shelly, formerly Qubino, now focuses on providing Wi-Fi and Z-Wave compatible smart home solutions. Shelly devices are among the smallest automation control devices in the world, allowing them to find their place in nearly any sized smart home installation. Shelly utilizes the latest technologies to deliver superior automation, safety, and energy efficiency to their customers without breaking down their walls or bank accounts.
