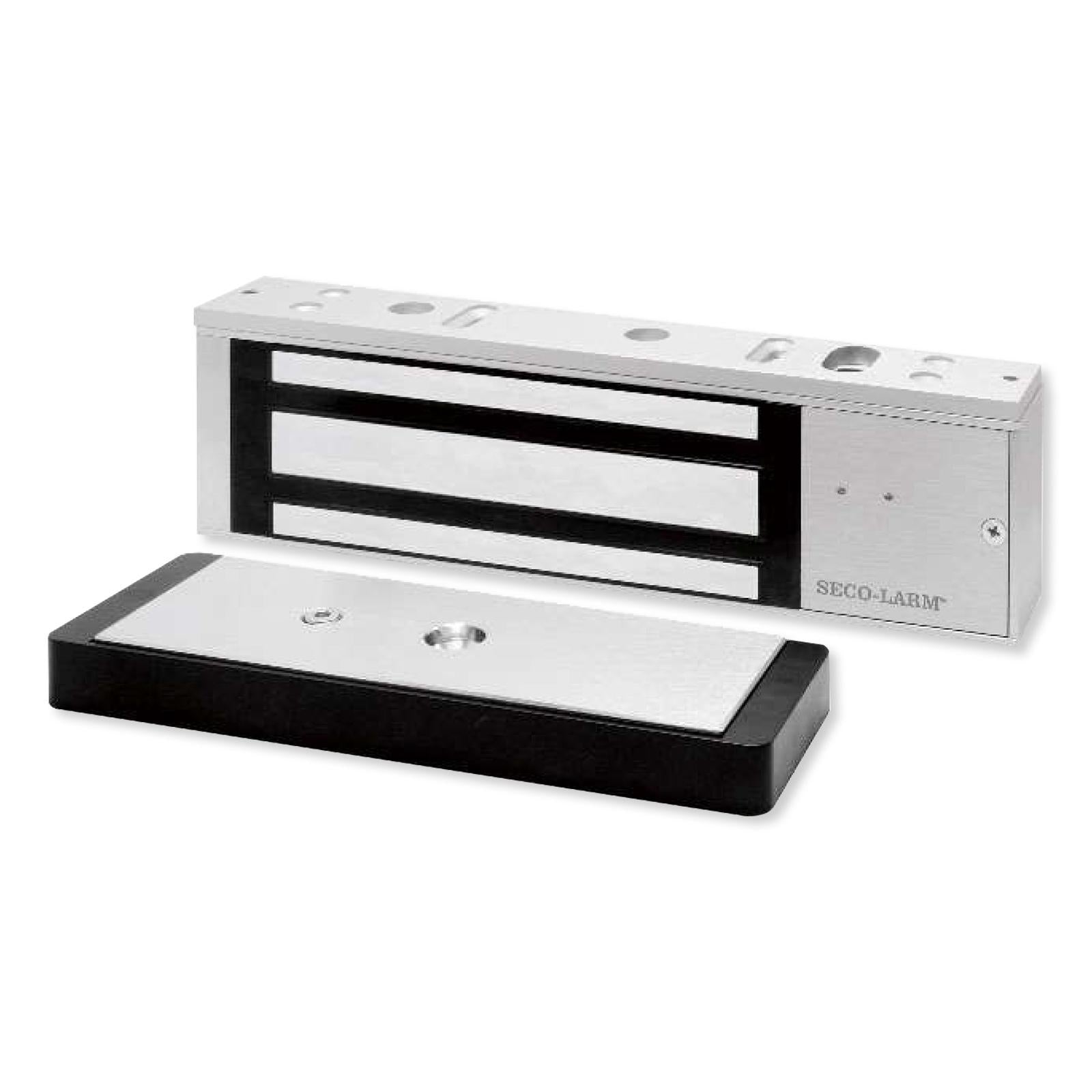

Seco-Larm Enforcer Electromagnetic Lock with LED, Bond & Door Position Sensor, 1,200 Lbs.

Secure Your Door with 1,200 Pounds Of Resistance

Secure your door using 1,200 pounds (544kg) of electromagnetic holding force with the Seco-Larm Enforcer Electromagnetic Lock (1,200 Lb.) with LED, Bond, and Door Position Sensor. This electromagnetic door lock is the perfect solution for securing a door in a standard indoor application because it comes with various features to monitor the status of the door including a built-in bond sensor with 3A dry relay output, built-in dual color status LEDs, and a door position sensor for showing the open/closed status (1/2") of the door. This electromagnetic lock is housed in anodized aluminum (US28) for added durability, and features MOV surge protection to ensure long-term reliability. It also includes a detachable faceplate, an adjustable mounting bracket, and all the mounting hardware needed to make installation quick and easy.

• Secures a door with 1,200 pounds (544kg) of holding force
• Built-in bond sensor with 3A dry relay output
• Built-in dual color LEDs (lock status) and door position sensor (open/closed status)
• Reliable security with MOV surge protection
• All mounting hardware included and powered by 12 or 24 VDC

Seco-Larm's E-941SA series of electromagnetic locks provide an ideal solution for securing a door, cabinet or drawer against unauthorized entry. When the 1,200 Lb. magnetic door lock is powered, a strong magnetic field is created to attract the lock to a steel armature plate that is mounted to the door. The secured door can only be opened once the electromagnet is deactivated.

Contents

• Electromagnet
• Armature plate (2) Short self-tapping screws
• Armature screw
• (2) Steel washers
• Rubber washer
• (4) Long self-tapping screws
• Sexnut bolt
• (2) Guide pins
• Door spacer
• (2) Hex-head mounting screws
• Mounting plate
• (2) Tamper caps
• (2) Hex wrenches
• Armature plate holder
• Manual

Seco-Larm Security Products

So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Under the Enforcer trademark, Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether for physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers such an extensive range of dependable, cost-effective security products with a full program of service and support.
