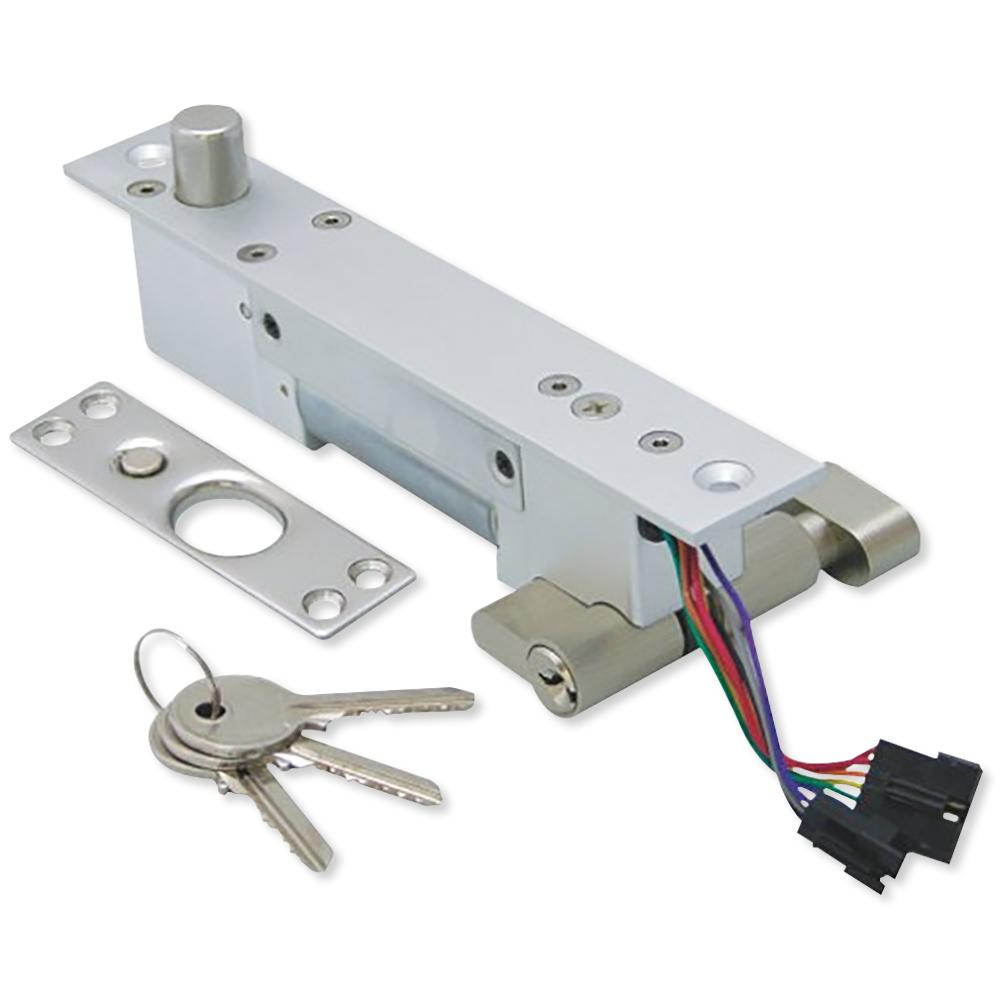

Seco-Larm Enforcer Electric Deadbolt, Fail-Secure, 12/24 VDC

Install An Electric Lock In A Metal Door Jamb<

Designed for hollow metal door frames, the Seco-Larm Enforcer Electric Deadbolt (Fail-Secure, 12/24 VDC) adds electric deadbolt control to a wooden or hollow metal door. Because the deadbolt features fail-secure operation (locks if power is lost), it also incorporates a manual lock/unlock cylinder that works with the included turnkeys (turn lock knob from inside protected premises and/or use key from outside protected premises). The deadbolt works with Seco-Larm keypads and features shallow design for installation in most metal door jambs.

• Fail-secure operation (locks if power is lost)
• Manual lock/unlock cylinder allows operation in power outage
• Stainless steel for strength and long life
• Adjustable door lock delay timer (0, 3, 5, or 9 seconds)
• Magnetic switch determines door position for positive locking

The Electric Deadbolt is powered by a solenoid. If the door is not closed properly, the solenoid will attempt to lock, but then shuts off to avoid burning out. Once the door is closed properly, it will automatically lock.

Additional Features:

• Stainless steel bolt, 5/8" diameter, 5/8" throw
• Includes control wire which allows for releasing without cutting unit's power
• Over-current protection 1.5A
• Door open/close monitor (NO/C/NC)
• Easily connects to Seco-Larm Digital Keypads
• Suitable for office-type applications
• Multi-directional horizontal or vertical mounting
• Special conic cavity stainless steel plug (thickness 1.5mm~1.8mm)

Contents

• Lock Body
• Manual Lock/Unlock Cylinder
• (2) Oval Cylinder Plates
• (3) Keys
• Strike Plate
• Faceplate
• 3-pin Connector
• 6-pin Connector
• (2) Large Mounting Tabs
• (2) Small Mounting Tabs
• Mounting Screws
• (4) Templates

NOTE: Designed for hollow metal door frames only; not recommended for wooden door frames. However, the door itself can be wood or metal.
