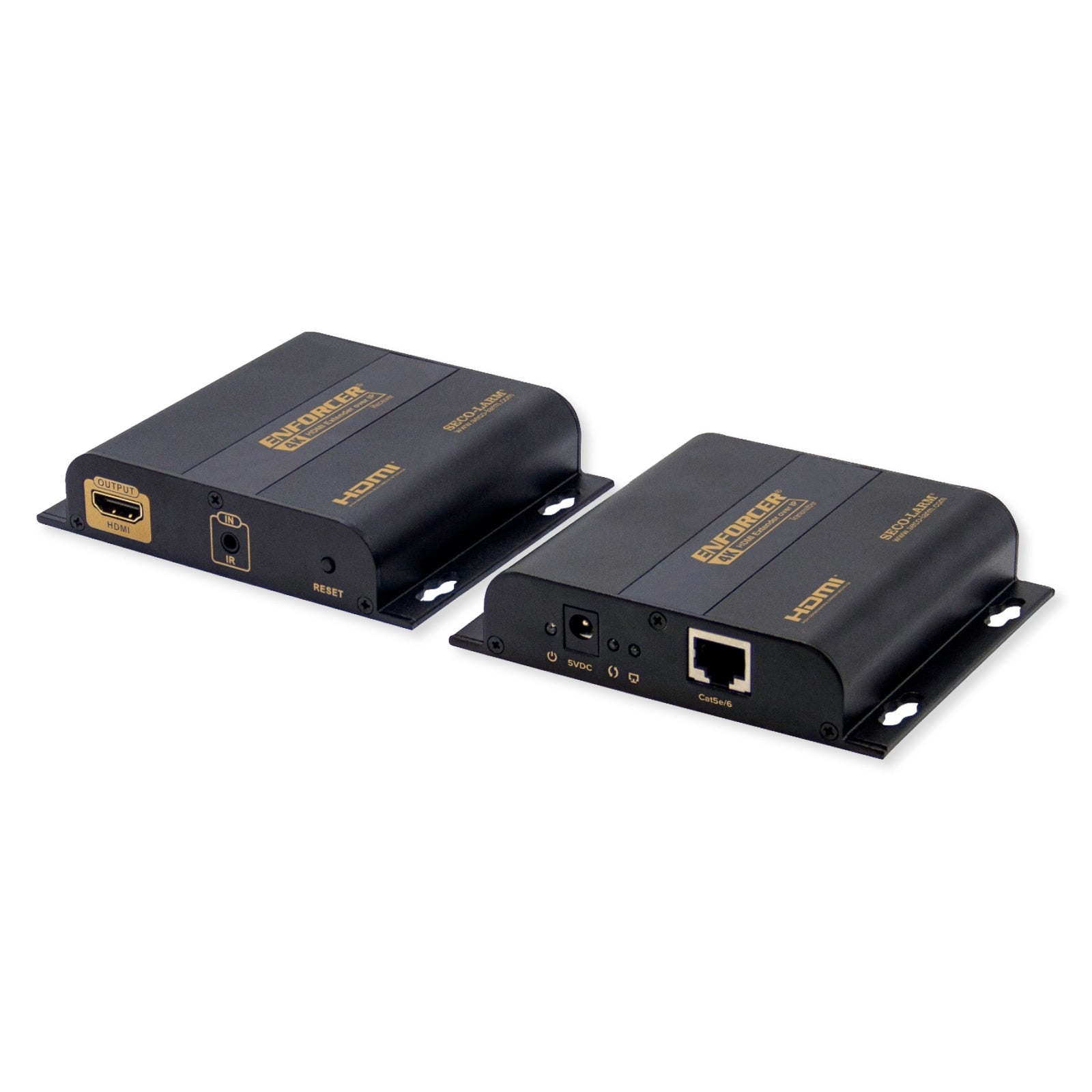

Seco-Larm 4K HDMI Extender Over IP Kit

Use Cat5e/6 Cable To Extend Your 4K HDMI Signal

Extend the range of HDMI signals by sending video and audio over a single Cat5e/6 cable with the Seco-Larm 4K HDMI Extender over IP Kit. This device supports IR signals with the included transmitter and receiver, which will allow you to remote control a device, such as a media player or DVD player, from one end of an installation to the opposite end. It also allows a connection of multiple units for an extended range due to it supporting One-to-One and One-to-Many applications. It features an IR frequency of 20kHz-60kHz and supports video formats DTV/HDTV: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 4K@30Hz.

• Extends 4K HDMI signals up to 393ft (with Cat6, 328ft with Cat5e)
• Supports resolutions from 480i to 4K@30Hz with zero signal loss
• Transmits over a single Cat5e/6 cable
• Includes Power Adapter and IR hardware

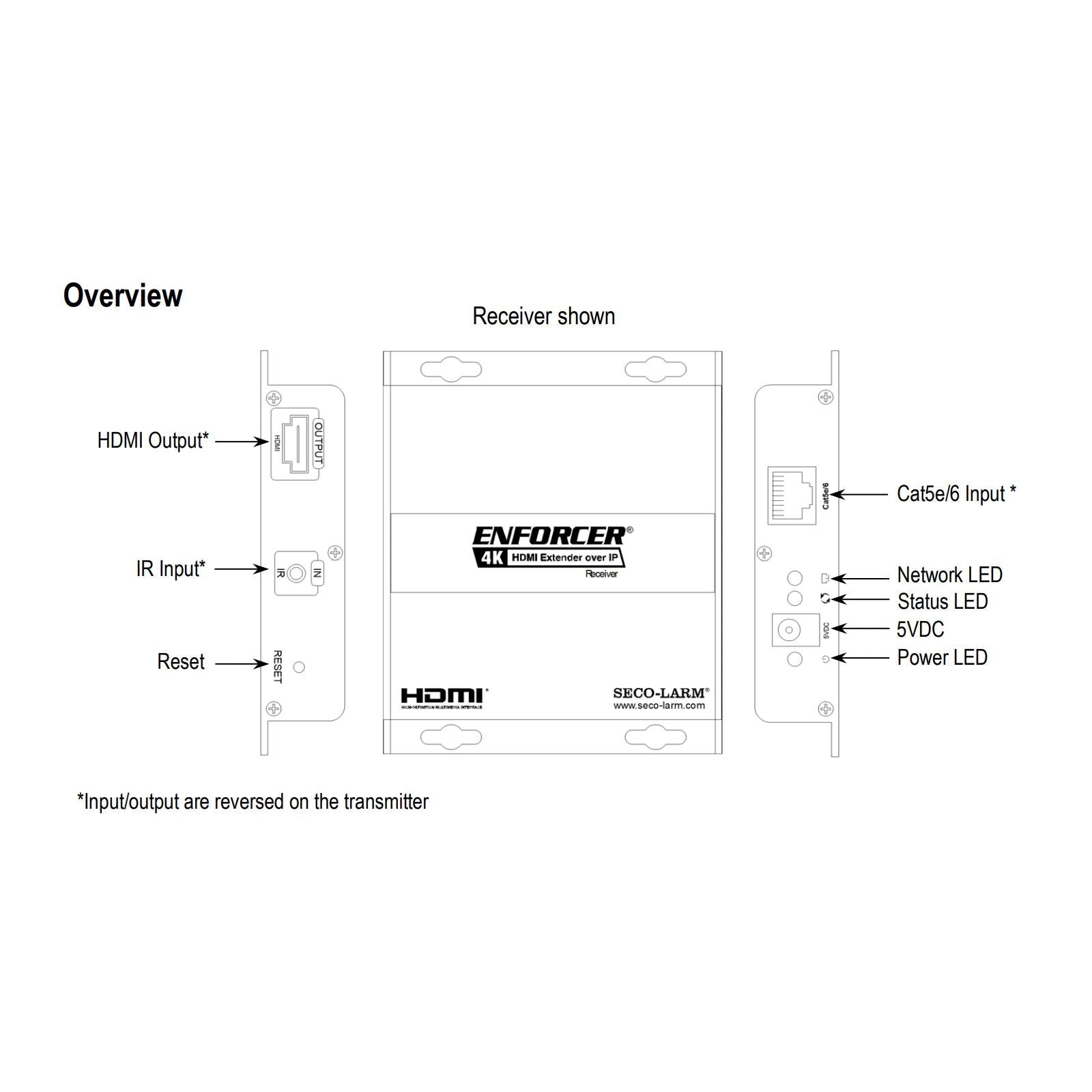

• Status LEDs indicate power and link status

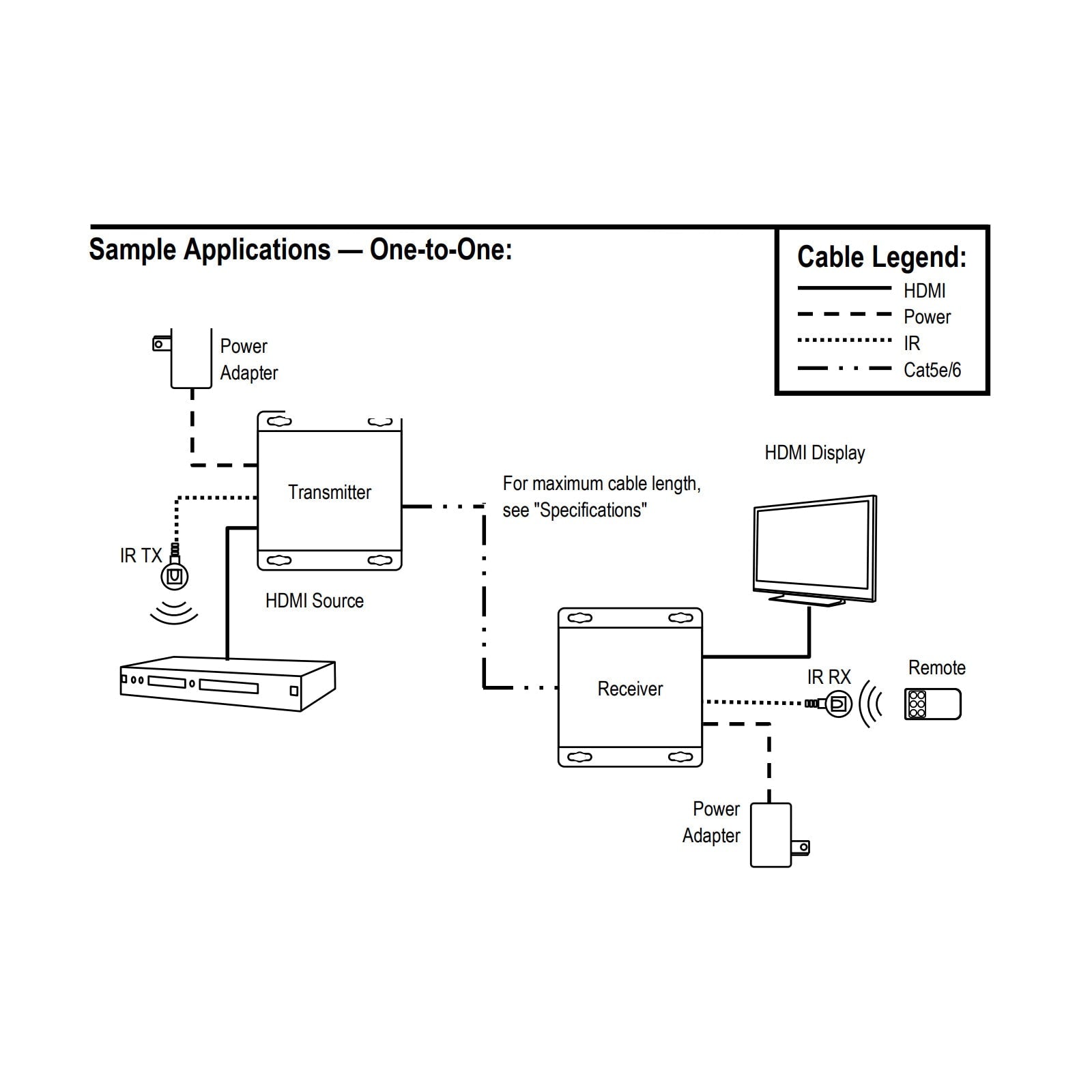

• One-to-One Sample Application

Contents

• HDMI Transmitter
• HDMI Receiver
• IR Transmitter
• IR Receiver
• (2) Power Adapters
• Manual
