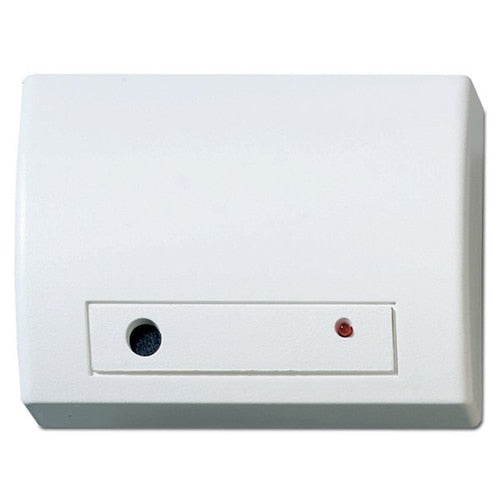

  • Linear DXS Supervised Glass Break Detector Transmitter

    LNDXS91

    Features DXS Technology

    When breaking glass is detected, the Linear DXS-91 Supervised Glass Break Detector Transmitter sends a digitally coded signal to a security receiver or security control panel, alerting you of a possible intruder.

    The glass break detector includes a built-in transmitter designed for use with Linear’s DXS and DX format receivers. The DXS can send three different signals: alarm, low battery and status. The DX code format features more than one million possible codes. Each transmitter is precoded at the factory to a unique code so no field coding is required.

    The unit is powered by two 3-volt lithium batteries. These batteries last approximately 2-1/2 years under normal climatic conditions. If the battery voltage drops below a preset level, a low battery signal is sent with every alarm or test transmission.

    • Alarm, supervisory, and low battery transmissions
    • Lithium battery powered
    • Power: Two 3V 2450 lithium batteries (supplied)
    • Battery Life: 18 months
    • Measured Range: 1,000 feet, open air, with DVS-2400 control panel
    • Code Outputs: Alarm, supervisory, and low battery
    • Detection Method: Pattern recognition
    • Temperature Range: 32° to 120° F (0° to 49° C)
    • Dimensions: 4.25" W x 3.13" H x 1.7" D (108 x 80 x 43 mm)

    Linear models compatible with the DXS-91

    • DUAL-824: 24-Channel, 8-Loop Supervised Wireless/Hardwire Security Panel
    • DVS-1200: 12-Channel Supervised Wireless Security Console
    • DVS-2400: 24-Channel Supervised Wireless Security Console
    • DXSR-1504: Supervised 4-Channel Receiver
    • DXSR-1508: Supervised 8-Channel Receiver
