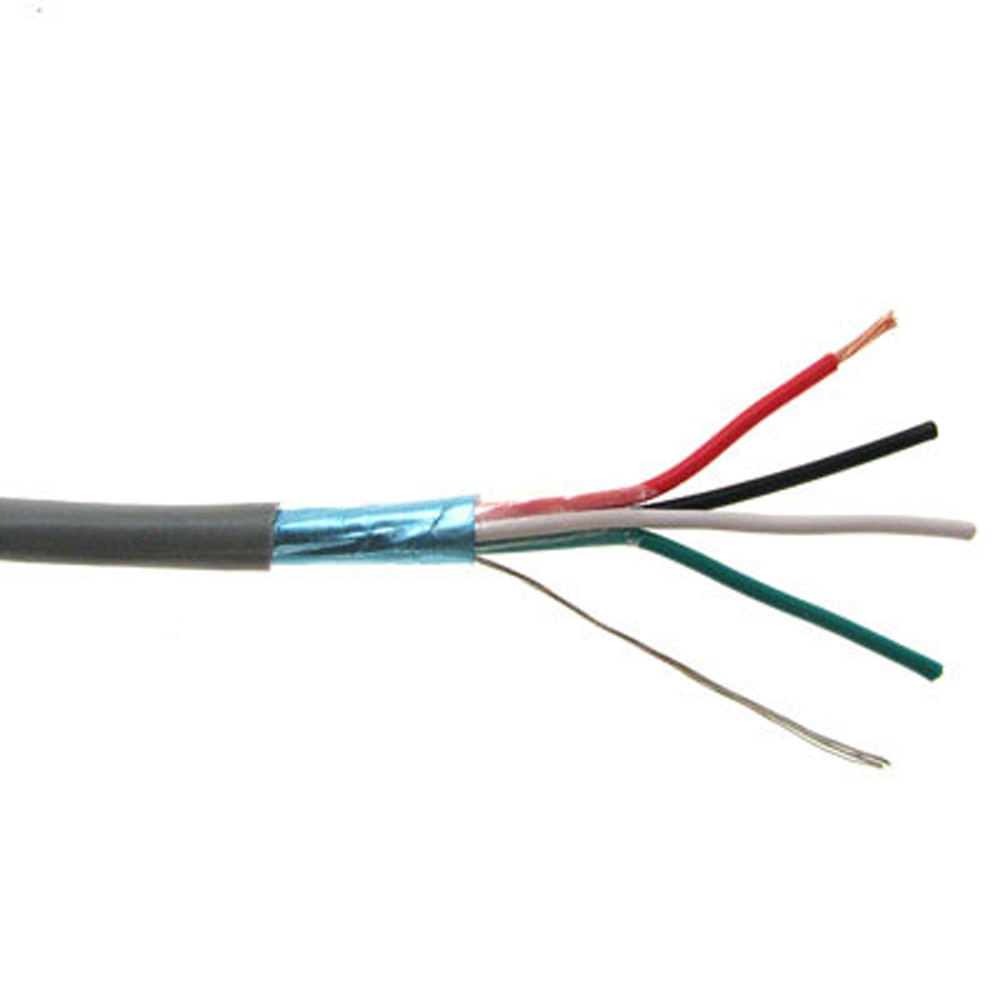

  • Communication Security Wire, 18AWG, 4C, Shielded with Drain, 1,000 Ft.

    Notify me when this product is available:

    Wire for Security & Audio Applications

    Ideal for various security applications, this indoor/outdoor Communication Security Wire (18AWG, 4C, Shielded with Drain, 1,000') can be used for alarms, intercoms, audio, signaling, and other power-limited control requirements. The wire's four stranded bare copper conductors and drain wire are twisted, shielded with overall AL mylar, and insulated within a sunlight-resistant PVC jacket. The cable includes a ripcord and the SCP Cable Labeling System with sequential markings for easy identification, and comes in spools of 1,000 feet.

    • AWG (American Wire Gauge): 18
    • Conductors: 4 (Red, Black, White and Green = Left+, Left-, Right+ and Right-)
    • Jacket Color: Gray
    • Package: Spool
    • Applications: Security systems, Intercom systems, Sound/Audio systems, Power-Limited controls.
    • Manufacturer Part #: 18/4SH-GY
    • Conductor: 18 AWG 7 Strand SBC Cond.
    • Total Cable Weight: 52 kg/km
    • Final Diameter: 0.190 inches
    • Insulation: PVC
    • Jacket: PVC
    • Shield: Foil Shield 0.75
    • Drain: 24 AWG 7 Strand STC Cond.
    • DC Resistance 25°C: 6.7 Ohms / 1000 ft
    • Mutual Capacitance: 53.2 pF/ft
    • Impedance: 40.7 Ohms
    • Cond to Shield Cap.: 94.3 pF/ft
    • Velocity Of Propagation: 57 percent
    • Inductance: 1.4 mH/km
    • Print Notes: Sequentially marked per 2FT (0 – infinity)
    • Standard Print: STRUCTURED CABLE PRODUCTS – – – P/N 18/4SHP – – – (UL) CL2P/CL3P E132885 OR FPLP 75°C
