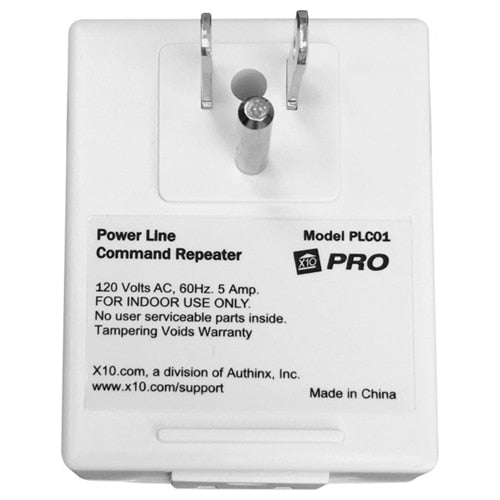

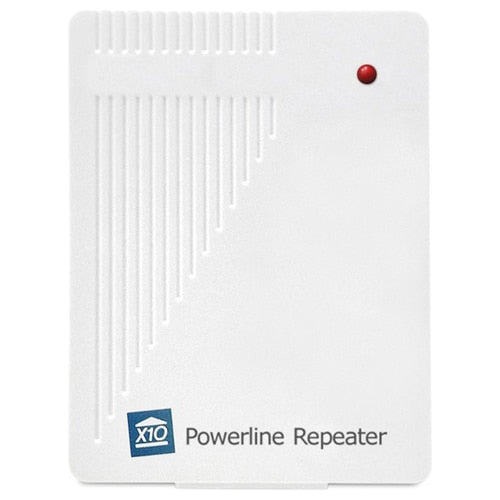

  • X10 Powerline Command Repeater

    XPPLC01

    Extend X10 Powerline Signal Range

    Make sure your X10 powerline signals get to their destinations reliably by adding the X10 Powerline Command Repeater to your system. The module simply plugs into an outlet and immediately begins repeating any X10 signals that pass through it over the powerline, extending signal range.

    • Repeats X10 powerline signals to extend range
    • Plugs into any standard power outlet
    • Built-in outlet on bottom for other plug-ins

    Because the X10 Powerline Command Repeater plugs into an outlet, it features a built-in pass-through outlet at the bottom (not X10 controlled), so you don't lose a power outlet. The repeater should be installed in the approximate center between your X10 RF transmitters and receivers.

    X10 Powerline Command Repeater Diagram | X10 S

    • Manufacturer Part #: PLC01
    • Color: White
    • Control: Active repeating of X10 powerline commands
    • Power Requirements: 120 VAC, 60Hz, 5A
    • Environmental Conditions: Indoor use only
    • Dimensions: 2.94(L) x 2.06(W) x 1.3(D) inches
    • Warranty: 2 Years
