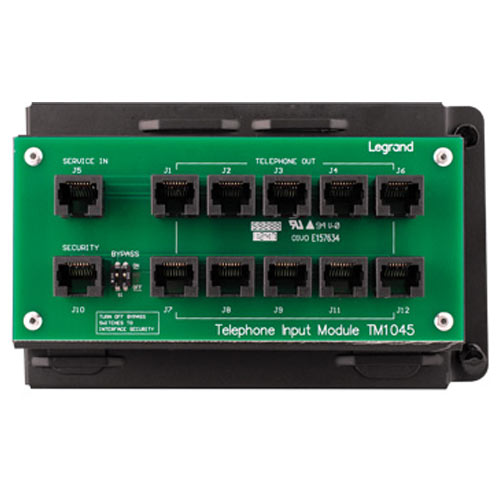

  • On-Q/Legrand 10-Way RJ45 Phone Module with RJ31X

    OQTM1045

    Notify me when this product is available:

    Distributes 4 Telephone Lines To 10 Locations

    Designed to provide basic telephone distribution, the On-Q/Legrand 10-Way RJ45 Telephone Module with RJ31X distributes up to four incoming telephone lines (RJ45) to 10 locations. An integrated RJ31X line seizure port supports security applications. The module mounts in a structured wiring enclosure with the included mounting bracket.

    • Supports up to 10 locations
    • RJ31X line seizure port for security
    • Mounts in a structured wiring enclosure

    Contents

    • Telephone Module
    • Mounting Bracket

    Start With A Strong Foundation

    From innovative enclosures to high-performance connection outlets, On-Q products guarantee a smooth installation. Your home is a refuge from the world, a sanctuary from the elements, a place you can relax in comfort. Maximize your home living experienc

    • Manufacturer Part #: TM1045
    • Color: Black
    • Connection Type: Phosphor Bronze contacts, plated Gold over Nickel
    • Type: Telecom Module
    • Input Plug Type: RJ45 Male
    • Connection Method: RJ45, RJ31X
    • Material: 18 Gauge Cold Rolled Steel
    • Mounting: Enclosure
    • Receptacle Type: RJ45, RJ31X
    • Number of Receptacles: 12
    • Dimensions: 5.78(W) x 3.1(H) x 1.6(L) inches (14.7 x 7.9 x 4.1 cm)
    • Weight: 1.01 pounds
    • UL Standard: Yes
    • UN SPS C: 43222819
    • Warranty: 15 Year
