    Home / Structured Wiring Media Systems / On-Q/Legrand 1-Port Digital Cable Amplifier with Coax Network Support

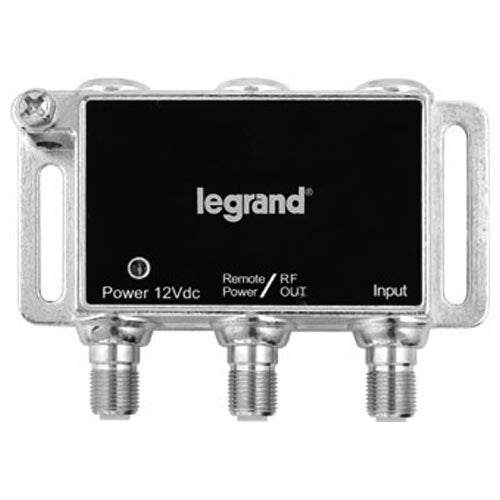

    On-Q/Legrand 1-Port Digital Cable Amplifier with Coax Network Support

    On-Q/Legrand 1-Port Digital Cable Amplifier with Coax Network Support

    OQVM2201V1

    $56.20

    Notify me when this product is available:

    Boosts Video Signals By 15dB

    Improve the strength of video signals throughout your home with the On-Q/Legrand 1-Port Digital Cable Amplifier with Coax Network Support. Compatible with MoCA, VoIP, and DOCSIS 3.0 networks, this high-definition video RF amplifier boosts signals by 15dB and features ultra-low noise for a strong video signal solution.

    • Improves video signal strength throughout the home
    • For use with MoCA, VoIP, and DOCSIS 3.0 networks
    • Amplifies RF signal strength by up to 15dB

    Start With A Strong Foundation

    From innovative enclosures to high-performance connection outlets, On-Q products guarantee a smooth installation. Your home is a refuge from the world, a sanctuary from the elements, a place you can relax in comfort. Maximize your home living experience with innovative solutions from On-Q/Legrand. Let your family enjoy the convenience they want with t

    • Cable Type: Coaxial
    • Color: Black
    • Connection Type: ANSI/SCTE 01 Compliant Brass Sealed CamPort F-Connector
    • Type: Signal Amplifier
    • Housing Material: Nickel Plated
    • Surge Protected: 6kV Combination Wave: IEEE C62.41-1991 Cat. B3 on all RF ports, including power adapter
    • Compatible Power Supplies: 120V 60Hz Adapter, Part # 104157-01 (included)
    • Frequency: 5 to 1002MHz
    • mA: 200mA
    • Ohm Value: 75 Ohm Nominal impedance
    • Operating Temperature: -40 to 140 degrees F (-40 to 60 degrees C)
    • Power Requirements: 12VDC, 200mA
    • Typical Insertion Loss: less than 1.2 dB
    • Typical Return Loss: more than 20 dB
    • Volts: 12VDC
    • Diameter:

    »On-Q/Legrand VM2201-V1 1-Port Digital Cable Amplifier with Coax Network Support Installation Manual (.pdf)
