Shelly Plus Add-On Module

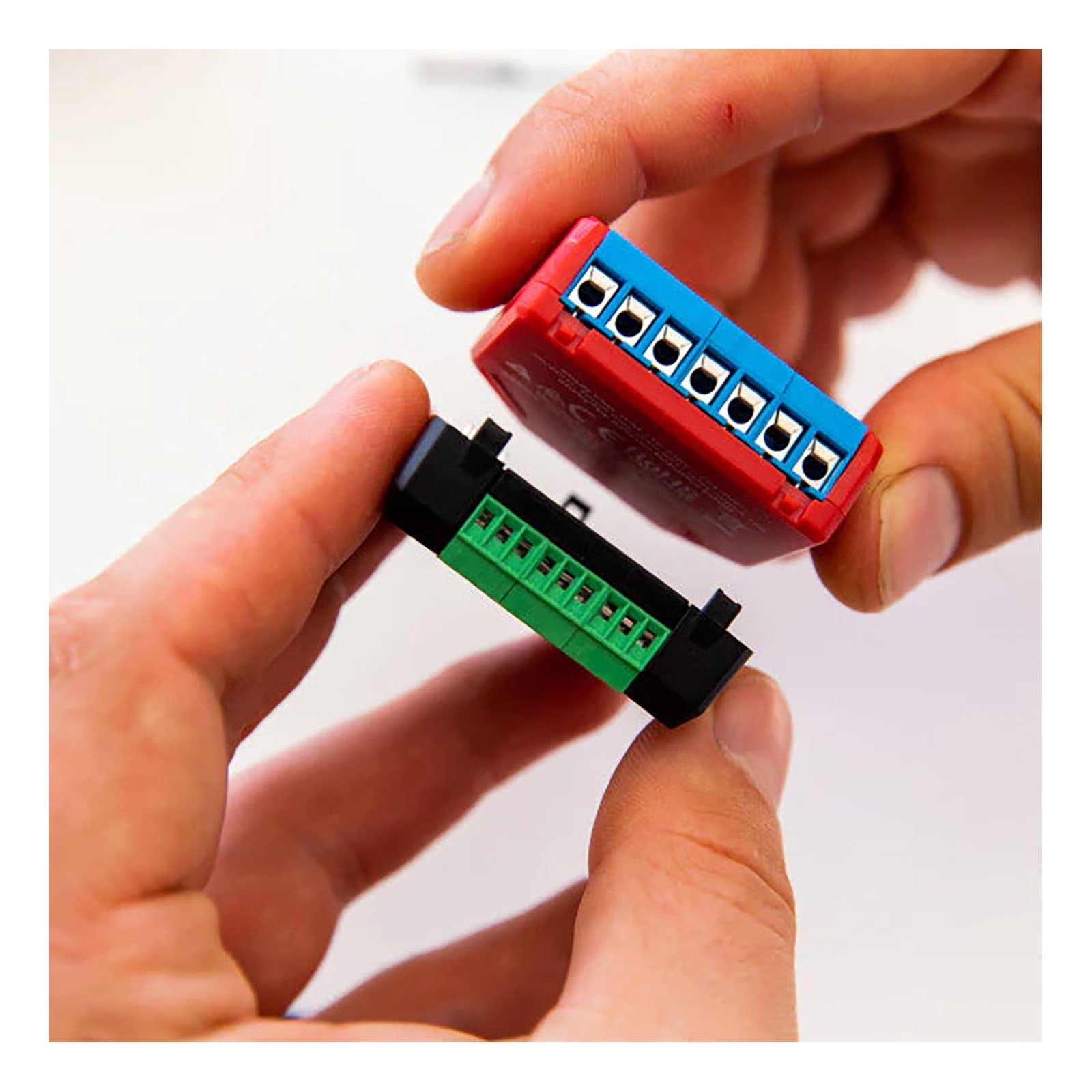

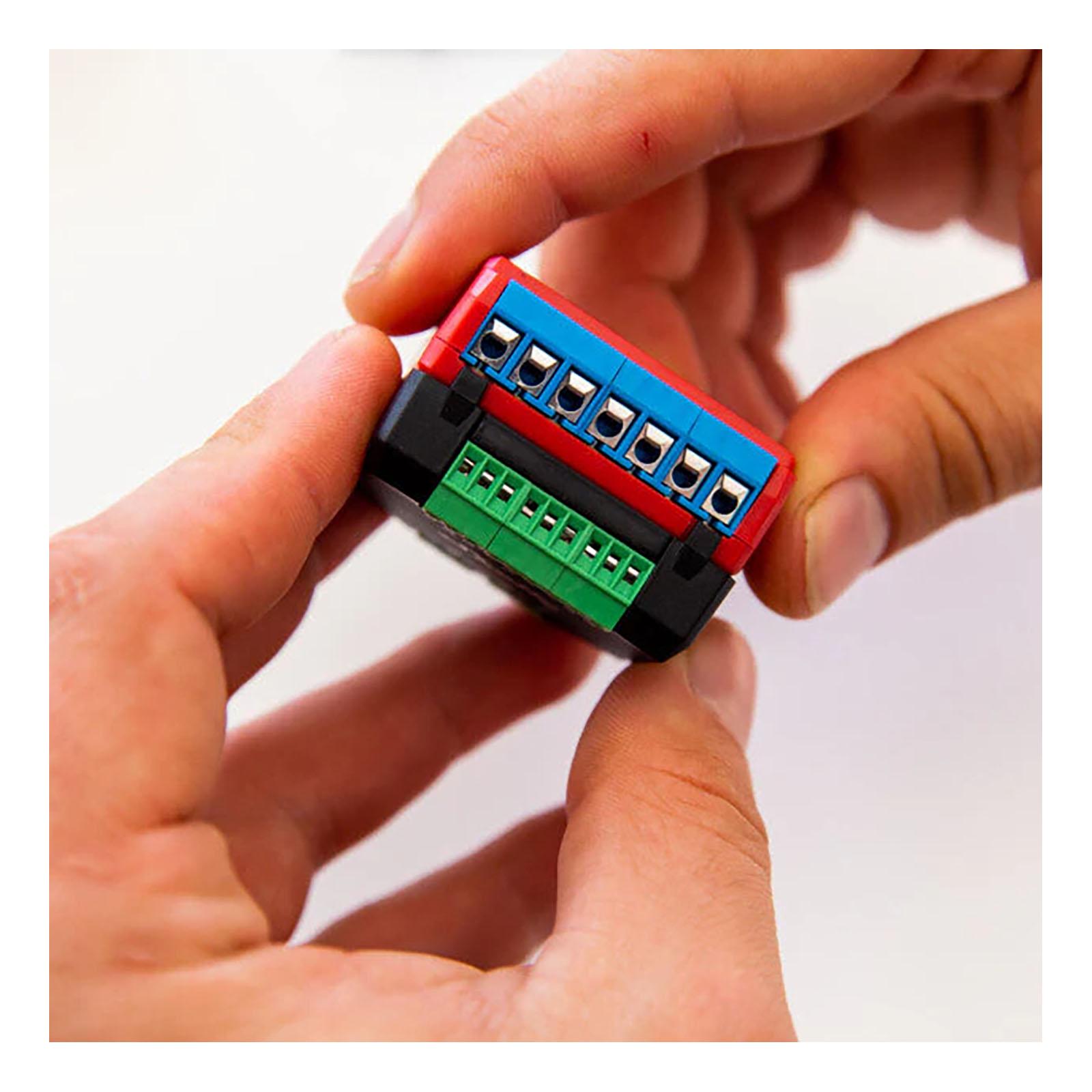

Attach To Shelly Plus and Gen3/4 Devices For Expanded Functionality

Expand the functionality of Shelly Plus and Shelly Gen3/4 devices with the Shelly Plus Add-On module. This module is designed with a galvanically isolated sensor interface, which allows no direct electrical connection between the power side of the attached Shelly device and sensor. This ensures signal integrity when connecting to external sensors and provides protection if the sensor fails or shorts out, preventing damage to the attached Shelly device or wiring in your household. The Plus Add-On module is built with an analog input, a digital input, one reference voltage input, one reference voltage through a pull-up resistor output, and two ground terminals. You can use it to measure temperature and humidity and automate actions based on connected sensors (analog or digital). The Shelly Plus Add-On module receives power directly from the attached Shelly device and supports multiple Shelly Plus modules such as the 1 Gen3, 1PM Gen3, 2PM Gen3, Shutter, i4 Gen3, DALI Dimmer Gen3, Dimmer 0/1-10V PM Gen3, EM Gen3, 1 Gen4, 1pm Gen4, and the 2PM Gen4.

• Attaches to Shelly Wave and Gen3/4 devices to add functionality, connectivity for digital/analog sensors, and temperature/humidity sensor support
• Galvanically isolated sensor interface provides reliable, safer connections and protection against possible sensor shortages

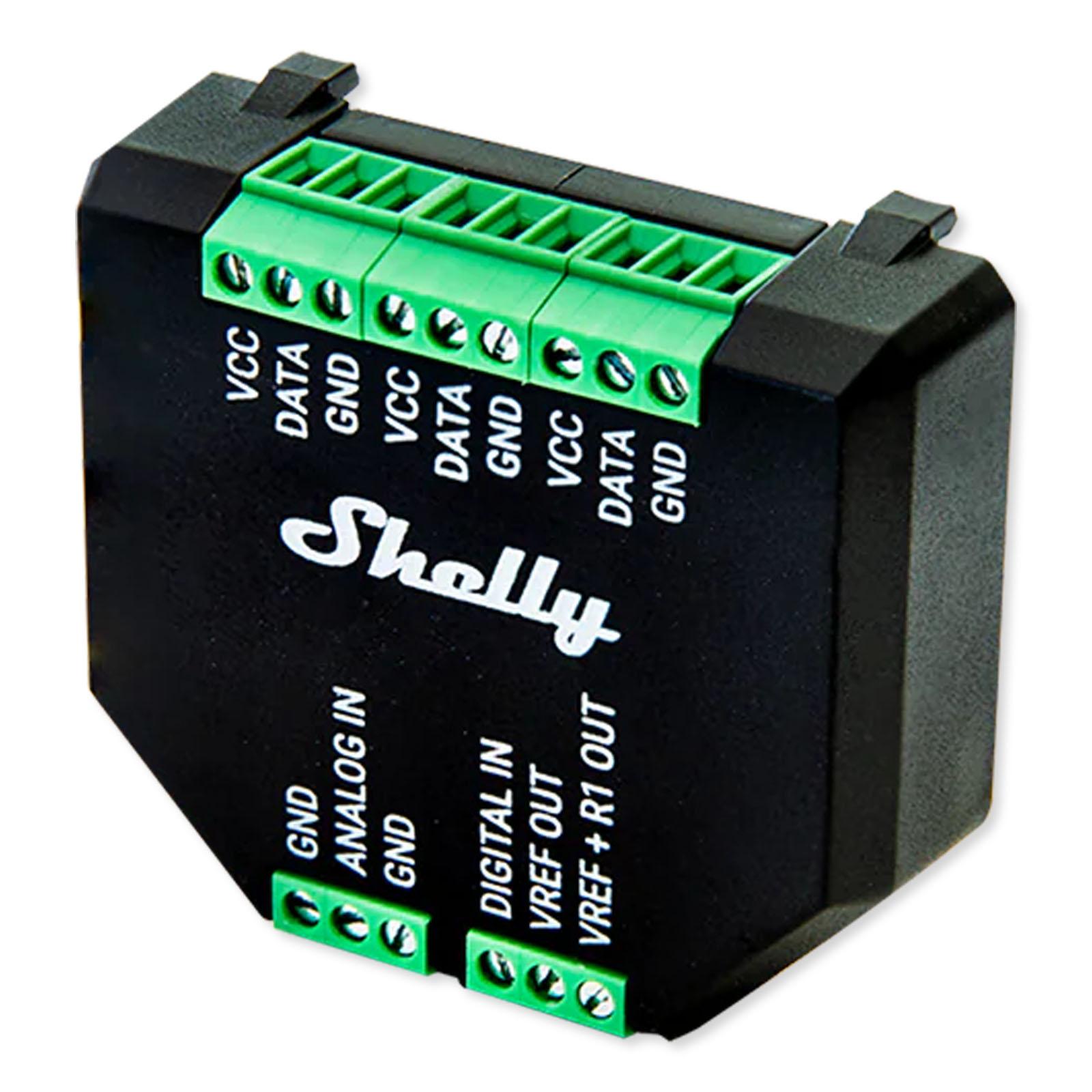

• Features analog and digital inputs, a reference voltage output and reference voltage through a pull-up resistor output, and two ground terminals

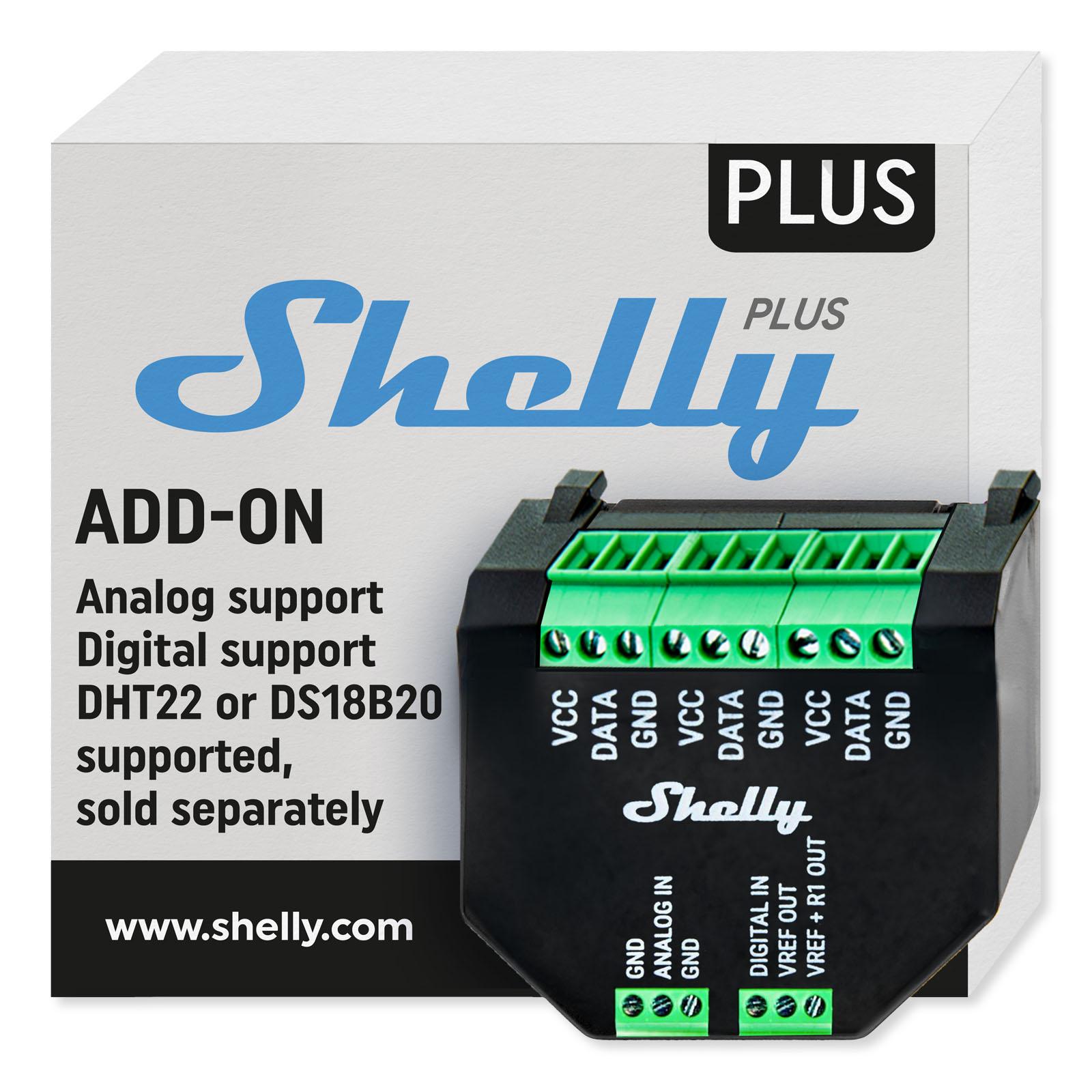

• Supports sensors such as NTC resistors, PIR, soil moisture, capacitive liquid level, up to 5 DS18B20 sensors, a single DHT22 sensor, and most Arduino sensors
• Powered directly by attached Shelly device, is Wi-Fi operated, support Bluetooth connectivity, and requires no smart hub

Shelly Smart Control App – Everything at Home Connected

Enjoy enhanced home automation control and precise monitoring of your Shelly devices no matter where you are with the Shelly Smart Control app. The app connects to Shelly's cloud service to help you control your connected devices remotely and send notifications for all automated events in your home directly to your smart device. You can easily configure devices and manage their settings individually, or you can create personalized scenes by combining Shelly devices to trigger certain actions in your smart home network. The Shelly Smart Control App supports real-time power metering with power management (PM) devices, smart plugs, and smart bulbs in order to allow you to build complex automation solutions for improved energy efficiency and lower electricity bills. Shelly devices are compatible with other most widely accepted both local and cloud based home automation platforms. A Shelly Smart Control App user account is required to access, include, and control Shelly devices through the Shelly Smart Control application and include your Shelly devices to 3rd party home automation or voice assistant platforms like SmartThings, Amazon Alexa or Google Home.

• Easy Inclusion and Control: Include and name new devices in the Shelly Smart Control app, assign them to the rooms they are located in, and group them into scheduled or automated scenes.
• Custom Dashboard: Create multiple dashboards for quick access to your preferred devices, rooms, and scenes. Issue commands using your dashboards or your preferred voice assistant towards individual devices or a group of devices.
• Smart Scenes: Combine multiple devices into one smart scene with pre-set triggered actions. Lower the lights when the TV is turned on for a "Movie night". Cut off the power and send a notification when a space heater has been left on past 9am while you are "Away at Work".
• Custom Schedules and Timers: Teach your home how to make you more comfortable by setting custom schedules based on your agenda. You can set a Shelly controlled switch to turn on the outdoor lights at 7:00 PM on workdays, or turn on your heater an hour before you return from work.
• Energy Monitoring: An energy consumption panel gives you a detailed view of your live and recorded energy usage from devices controlled by Shelly Qubino products. The information is stored in a free cloud and fully accessible to you for further analysis of your energy consumption habits.
• Works with Alexa: The Shelly Smart Control app is natively compatible with Amazon Alexa.

Contents

• Shelly Plus Add-On
• Manual

NOTE: Requires connection to a Wi-Fi network.

Shelly Provides A 100% Wireless Smart Home

Shelly creates innovative and affordable smart home devices for residential and business applications. Shelly, formerly Qubino, now focuses on providing Wi-Fi and Z-Wave compatible smart home solutions. Shelly devices are among the smallest automation control devices in the world, allowing them to find their place in nearly any sized smart home installation. Shelly utilizes the latest technologies to deliver superior automation, safety, and energy efficiency to their customers without breaking down their walls or bank accounts.
