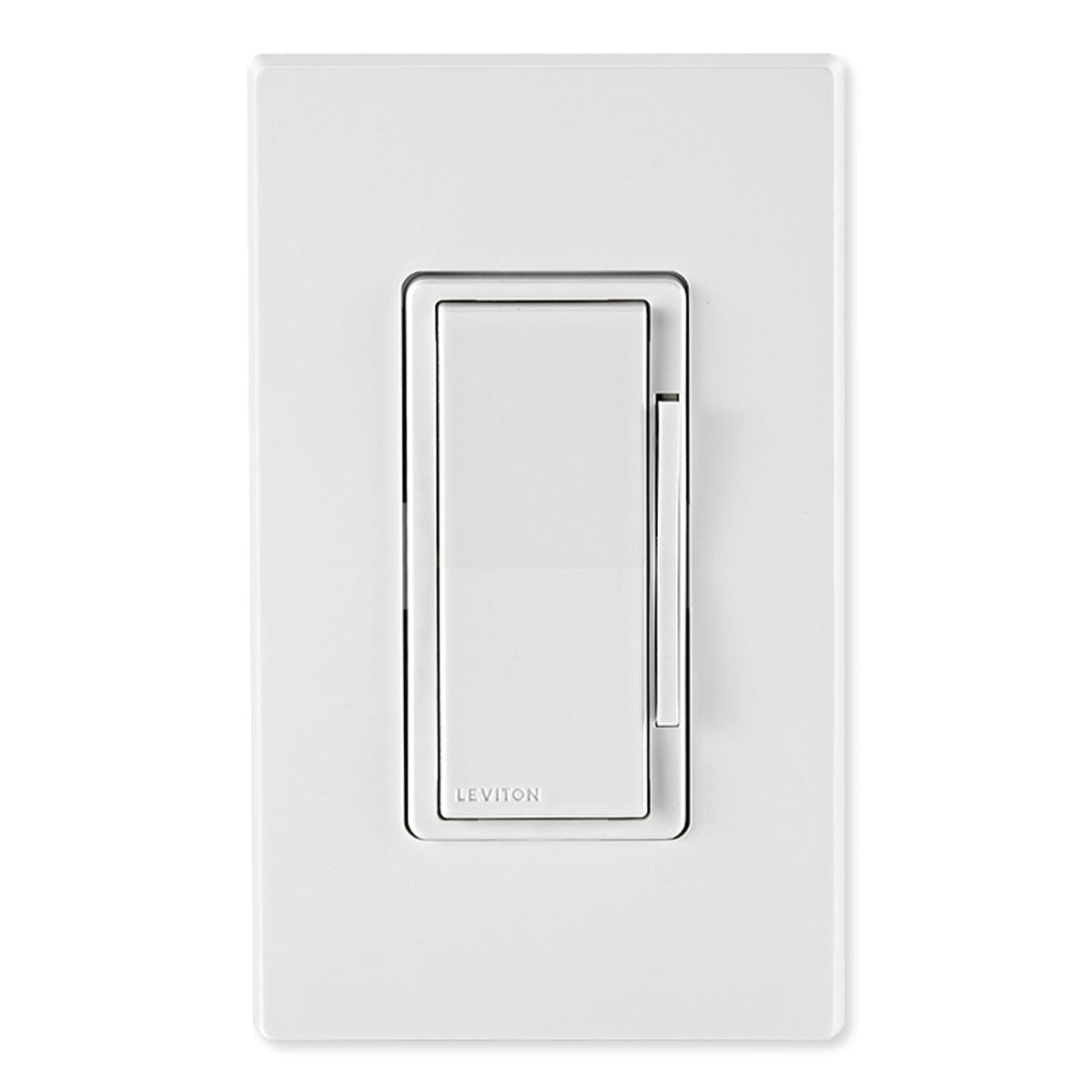

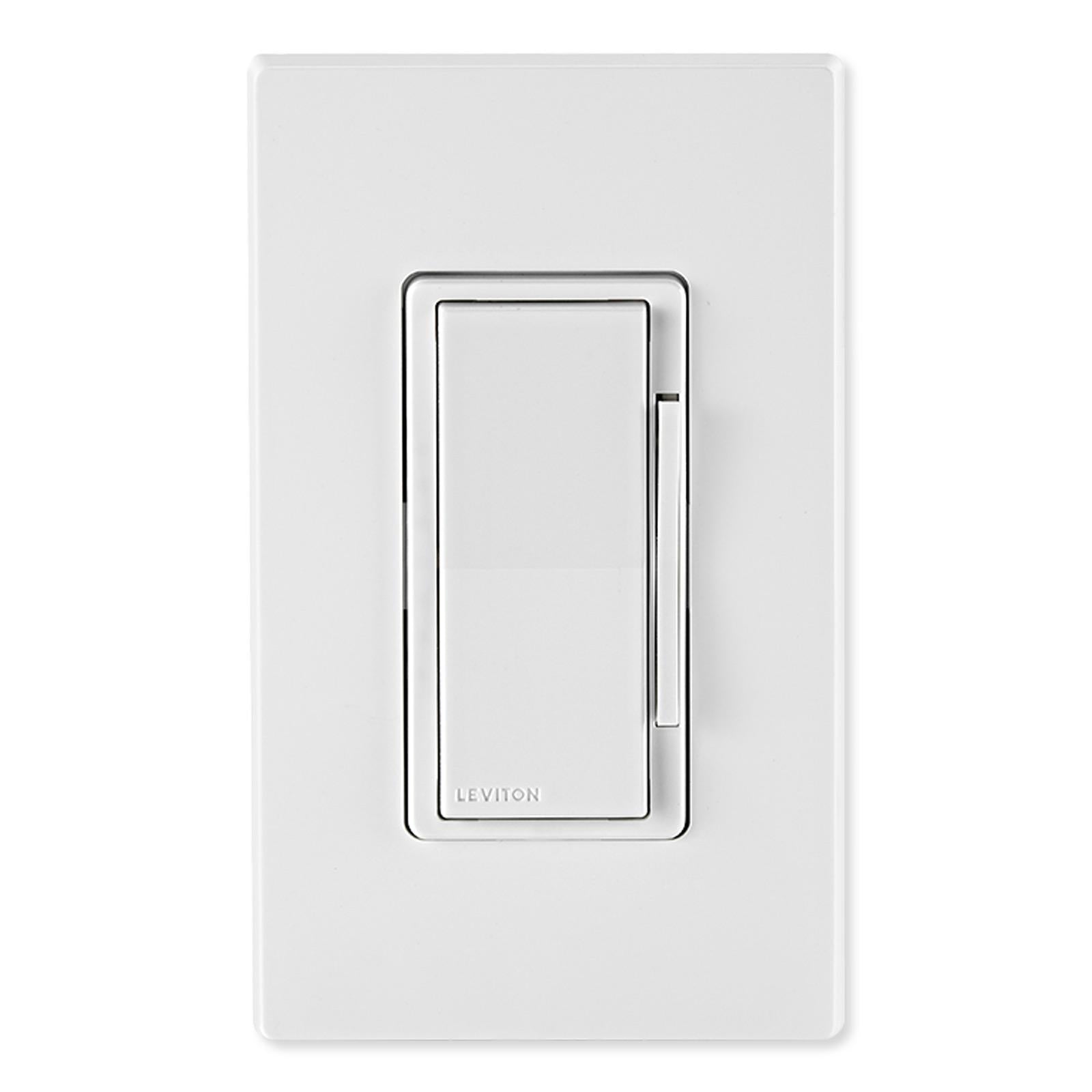

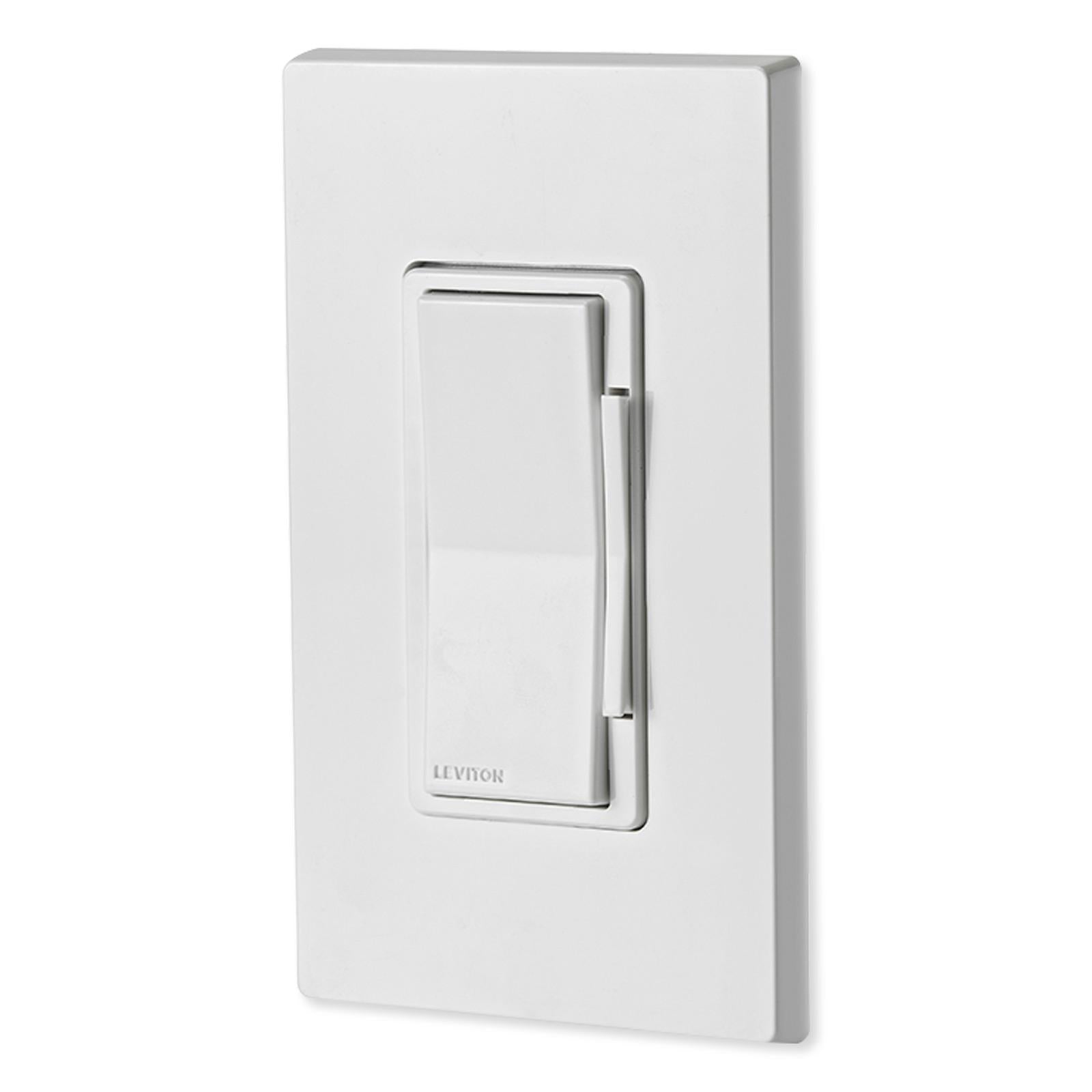

Leviton Decora Smart Fan Speed Controller (2nd Gen)
Usually ships in 7-10 days.
LVD24SF1BW
$45.95
Connect Your Ceiling Fan to Your Wi-Fi Network
Add your ceiling fan to your smart home network with the Leviton Decora Smart Fan Speed Controller (2nd Gen). This Wi-Fi connected 4-speed fan wall switch controls a wired 120VAC fan up to 1.5 Amps with On/Off and 4 speed settings. The paddle rocker switch controls On/Off functions while the side vertical bar to the right of the rocker controls the fan speed. Built-in scheduling and internal memory allows you to program the switch to operate according to your schedule, automatically turning On/Off the controlled fan at specific times of day and at pre-designated speeds. Additional customization options include Auto-Shutoff Timer, Pre-Set Speed or Return to Last Speed, Min/Max Speed setting, and LED configuration. The switch's internal memory saves custom settings and scheduling, even during Internet outages, so your presets are saved until connection is restored. Settings are selected through the My Leviton mobile app or the app of a Wi-Fi compatible smart home hub.
- Quiet rocker switch sets 4 speeds for a ceiling fan: Max, High, Medium, Low, and Off
- Compatible with pull chain ceiling fans without electronic control
- Vanishing LEDs on the left side of the switch indicate current and target fan speeds

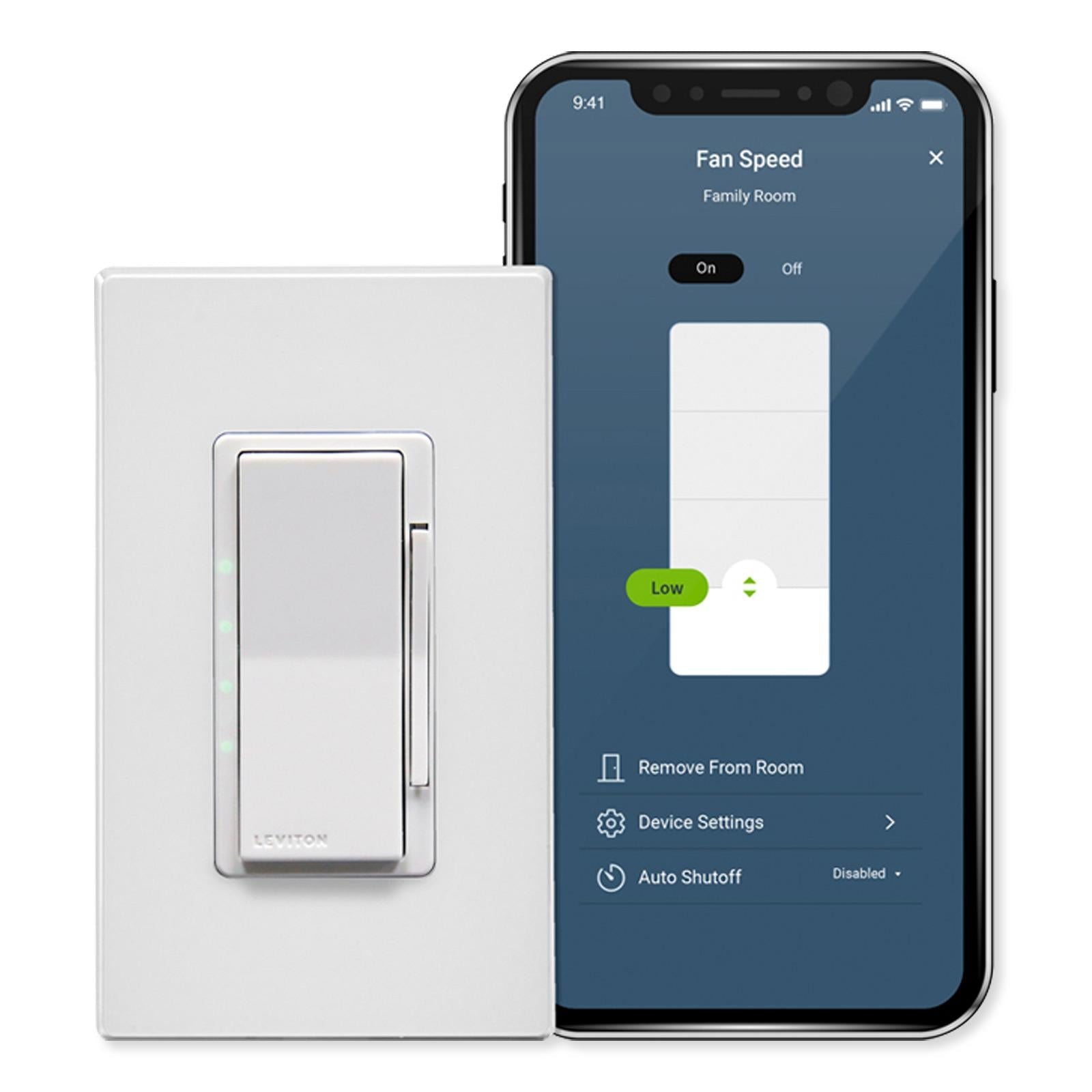

- Control fan speed locally with the switch or remotely from the My Leviton, Apple Homekit, or a connected smart hub's mobile app via Wi-Fi
- Works with IFTTT, SmartThings, and Schlage Encode compatible devices
- Voice-control compatible with Amazon Alexa, Google Assistant, and Apple Siri
- Multi-way control (3-way+) using up to 4 remote units (DAWDC and DAWSC Wire-Free Anywhere Companion Switches or DD00R and DD0SR Wired Companions
- Compatible with Decora Smart Outlet Color Change Kits (DSRKT, sold separately)
Decora Smart Wi-Fi 2nd Generation
The Decora Smart Wi-Fi 2nd Generation family of products build upon the features and capabilities of the original Decora Smart Wi-Fi devices, creating a streamlined and more robust smart home experience. 2nd Gen Decora Smart Wi-Fi products are compatible with existing 1st Gen Decora Smart Wi-Fi devices including in-wall dimmers/switches and plug-in modules for appliances and lamps.

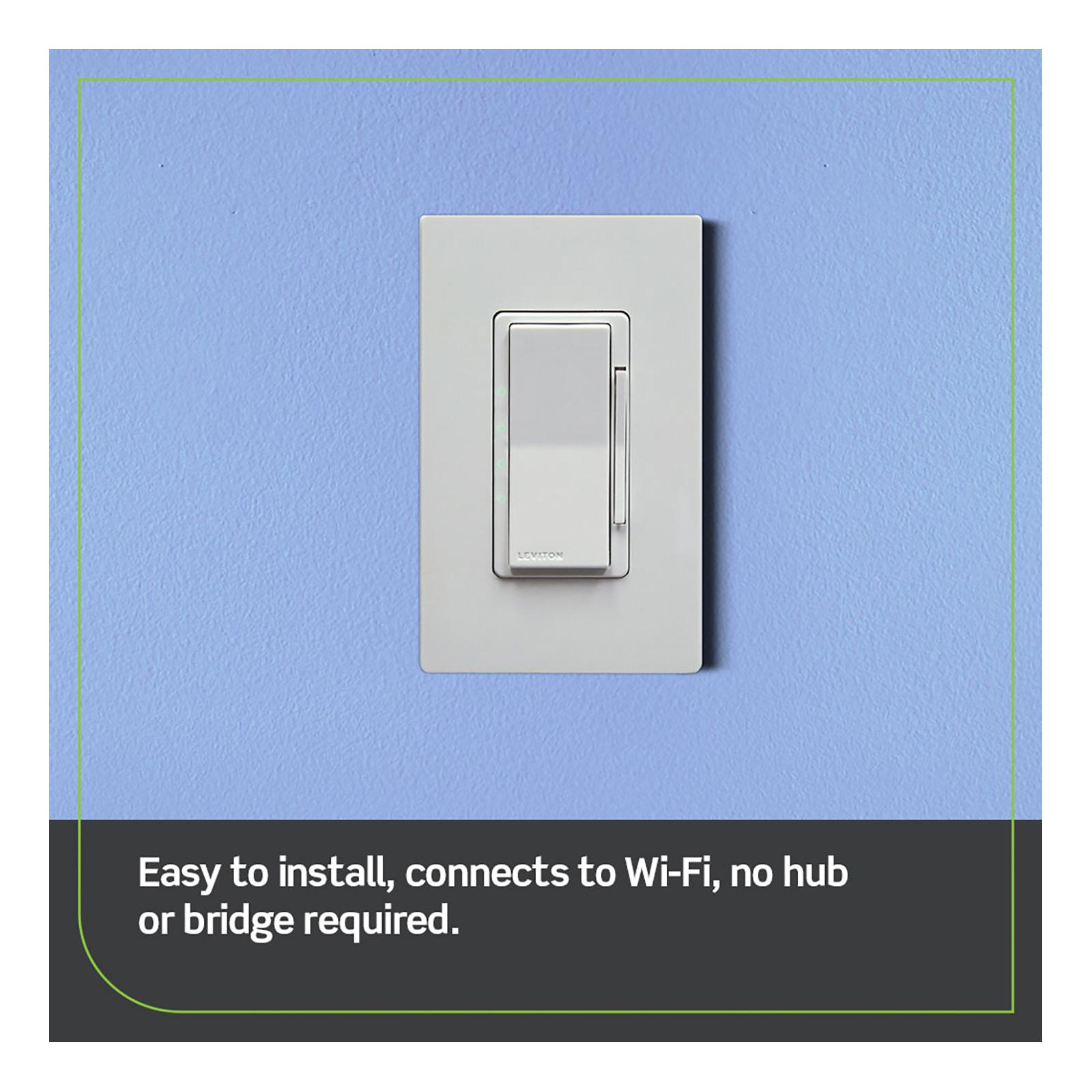

Control from Anywhere – No Hub Required
Control connected loads and lights using the free My Leviton app for iOS and Android, no hub required. Simplify control of the residence – schedule lights and connected loads to turn on/off at specific times or based on sunrise/sunset, easily group smart devices into rooms, and create activities (aka scenes) to command multiple lights at once.
My Lights. My Home. My Family. My Leviton.
Control up to 99 devices, 50 rooms, 50 activities (or scenes), and 5 schedules per residence and up to 20 residences per account.
Adaptable Voice and Remote Control
- Compatible with Apple HomeKit, IFTTT, SmartThings, and Schlage Encode wireless systems
- Compatible with both Amazon Alexa, Google Assistant, and Apple Siri voice control
- Streamlined device setup using Bluetooth
Installation Details

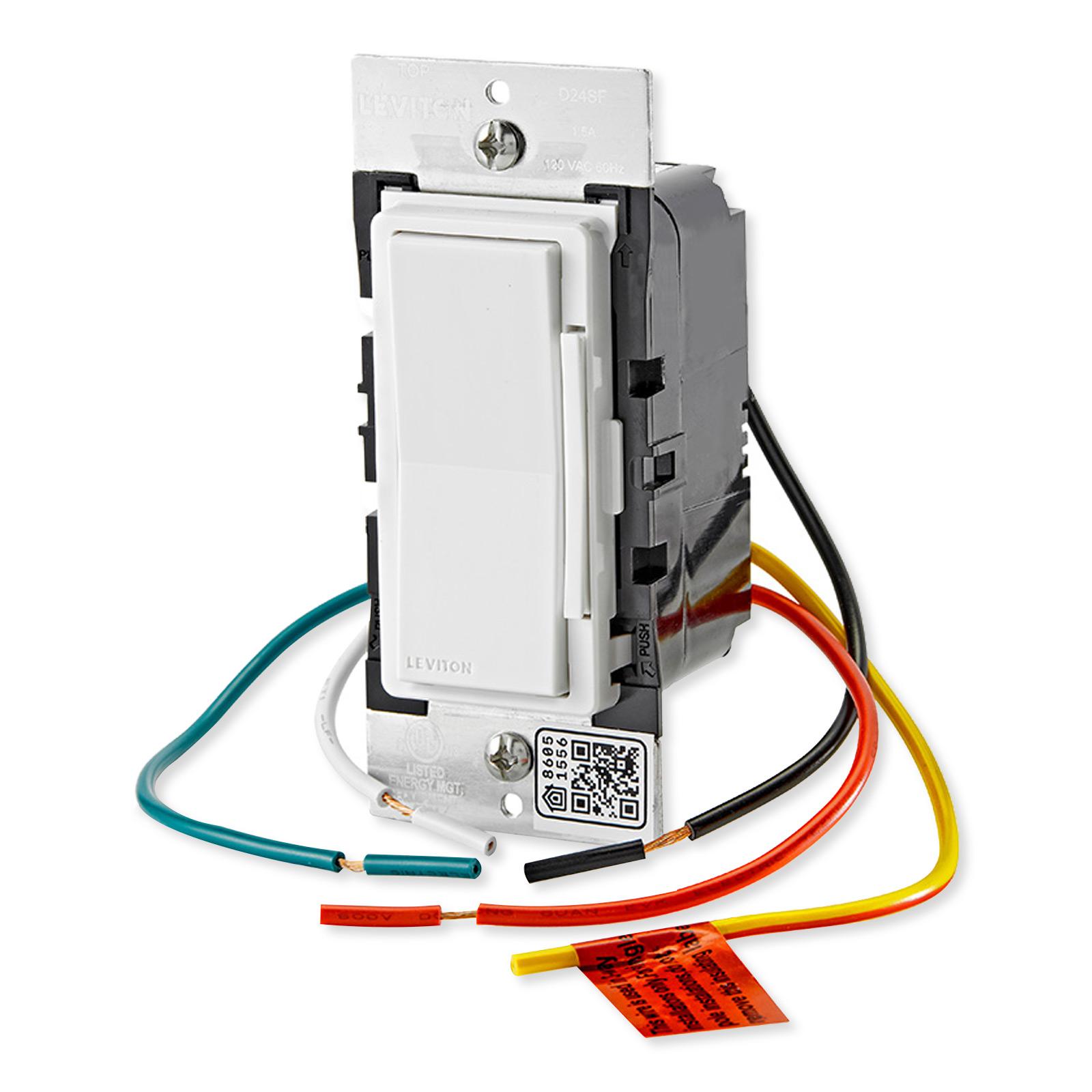

The Fan Speed Controller mounts into a standard 1-gang box and uses a 3-wire connection. A neutral wire is needed for installation. If the connected ceiling fan is a combination fan/light kit, the lights of the fan/light kit can be controlled separately by using the D26HD or DN6HD with MLWSB. Additionally, a traveler wire connection is available for 3-way+ applications.
Contents
- Decora Smart Fan Speed Controller
- Manual
Notes
- The D24SF is designed for use with overhead ceiling paddle fans not to exceed 1.5A maximum load. Not for use with exhaust type fans.
- The D24SF is not for use with lighting loads or combined ceiling fan light kits; if there are two load wires (one for the fan and one for the light); the D24SF can be used to control the fan load and a D26HD Dimmer can be used to control the lighting load separately in a dual gang box.
- Wallplate sold separately.
