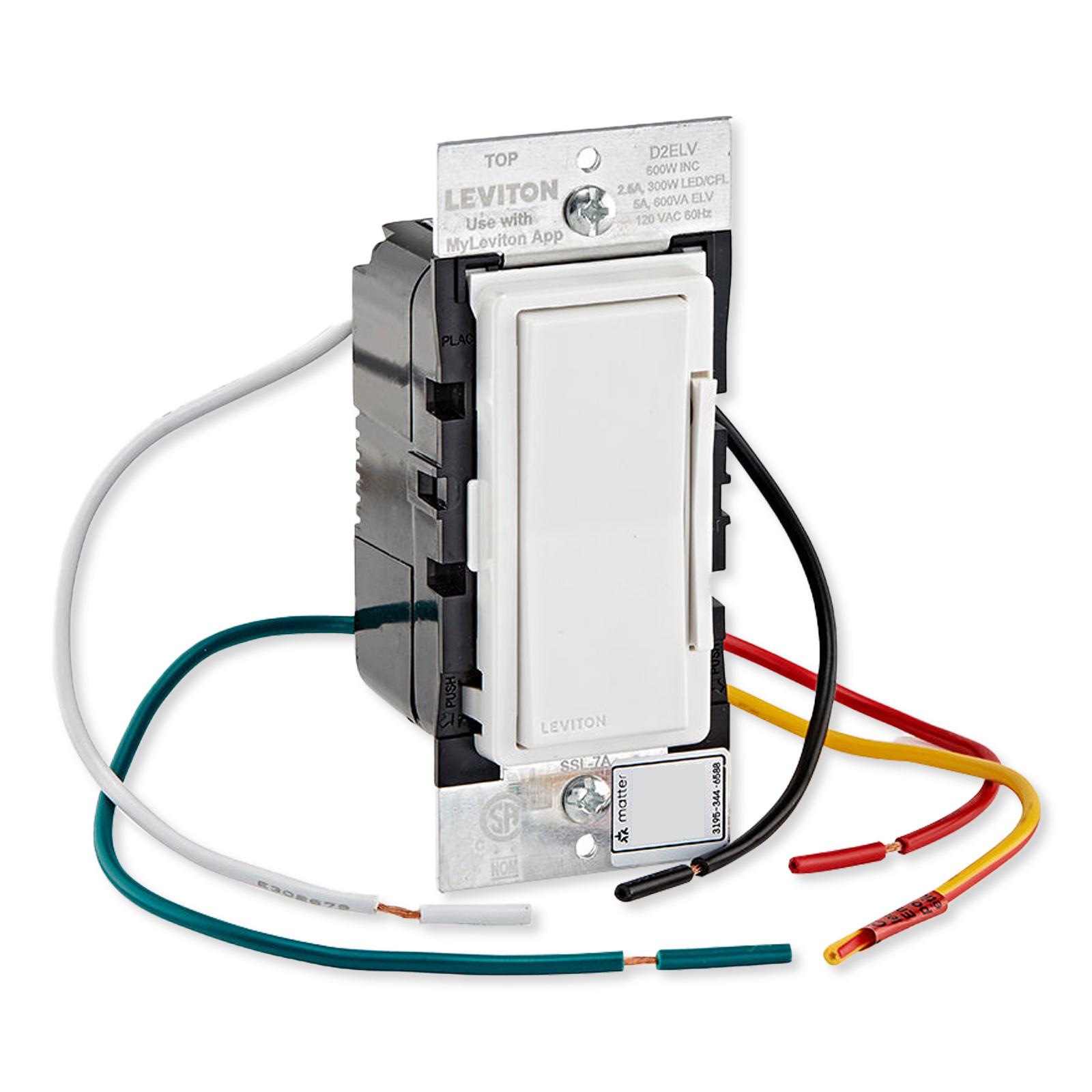

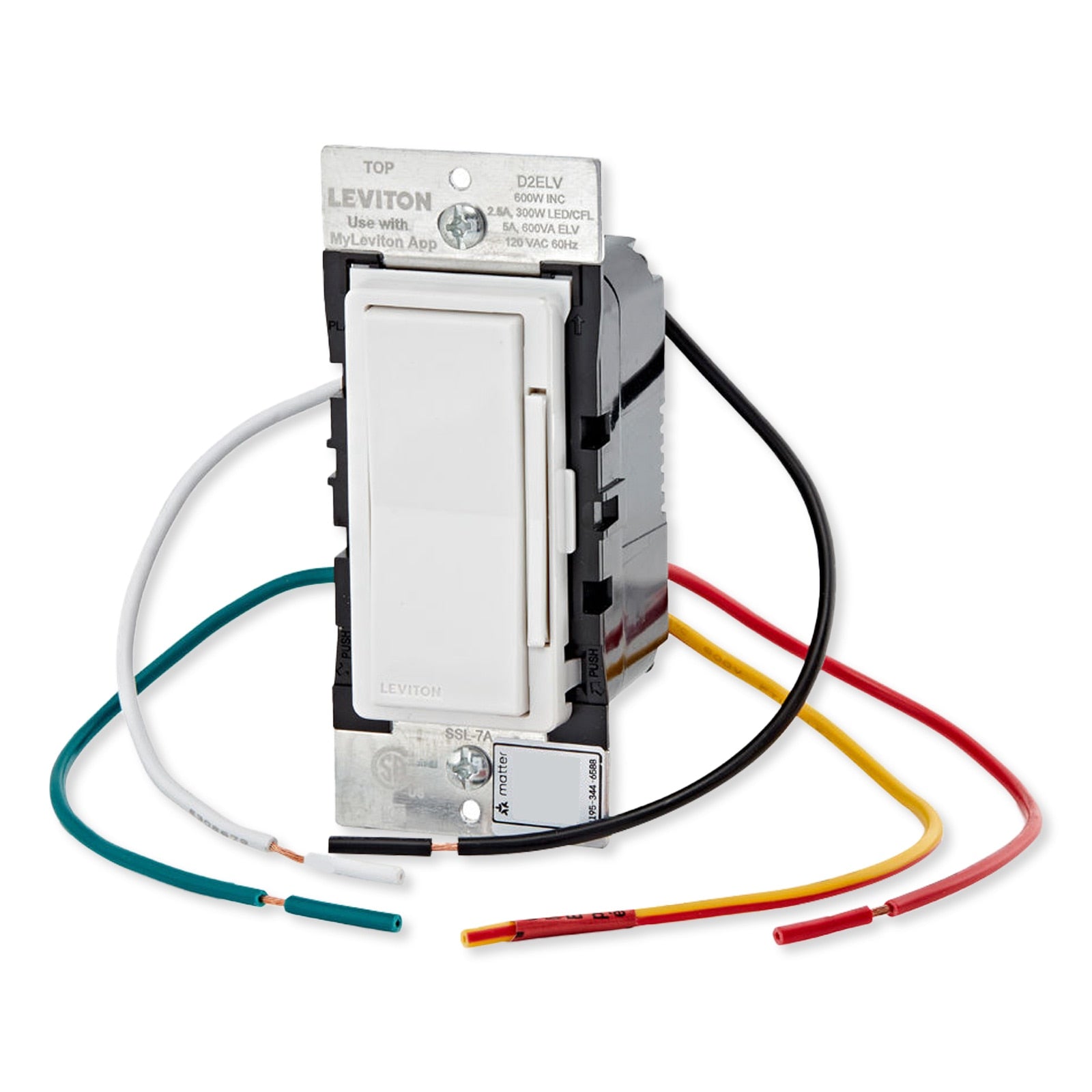

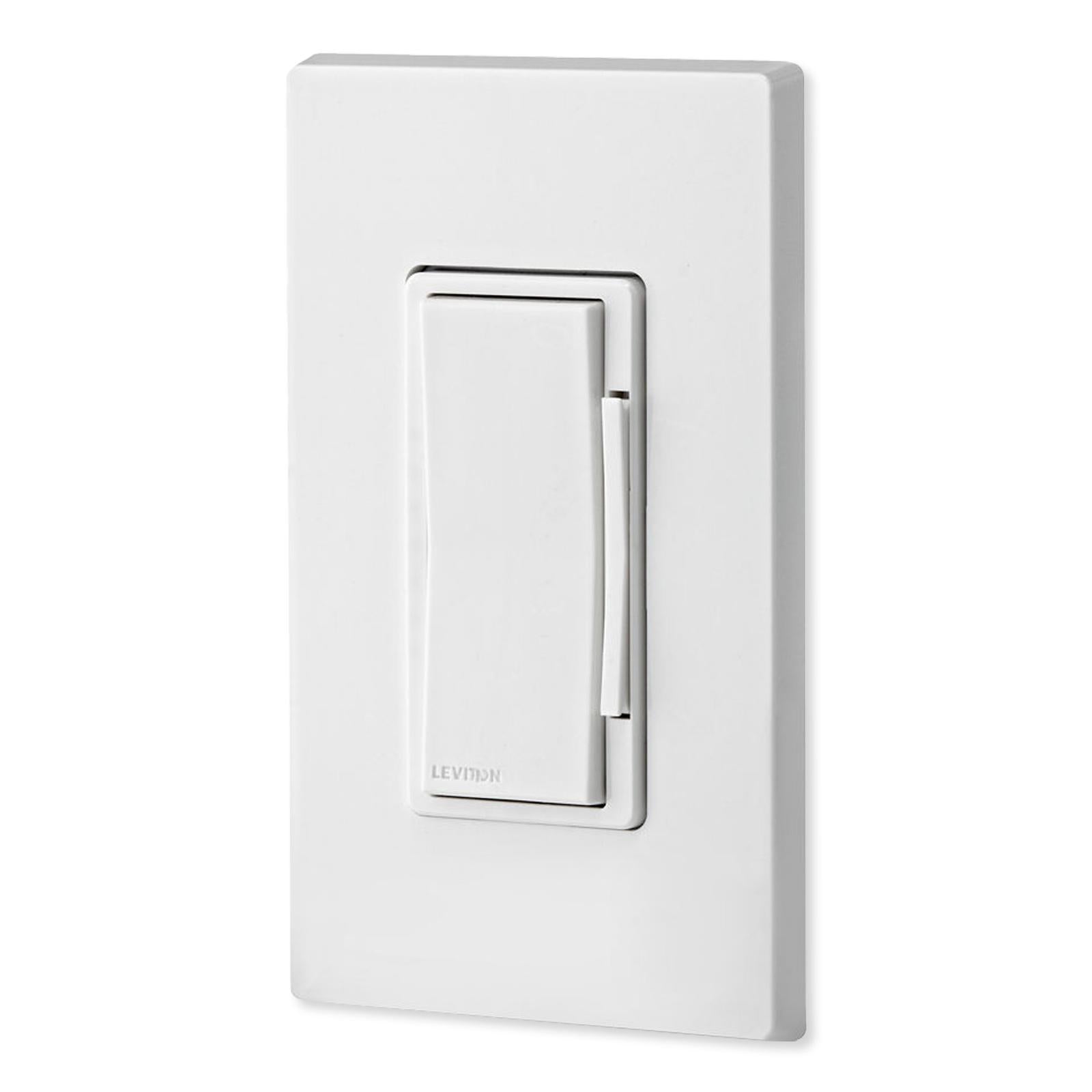

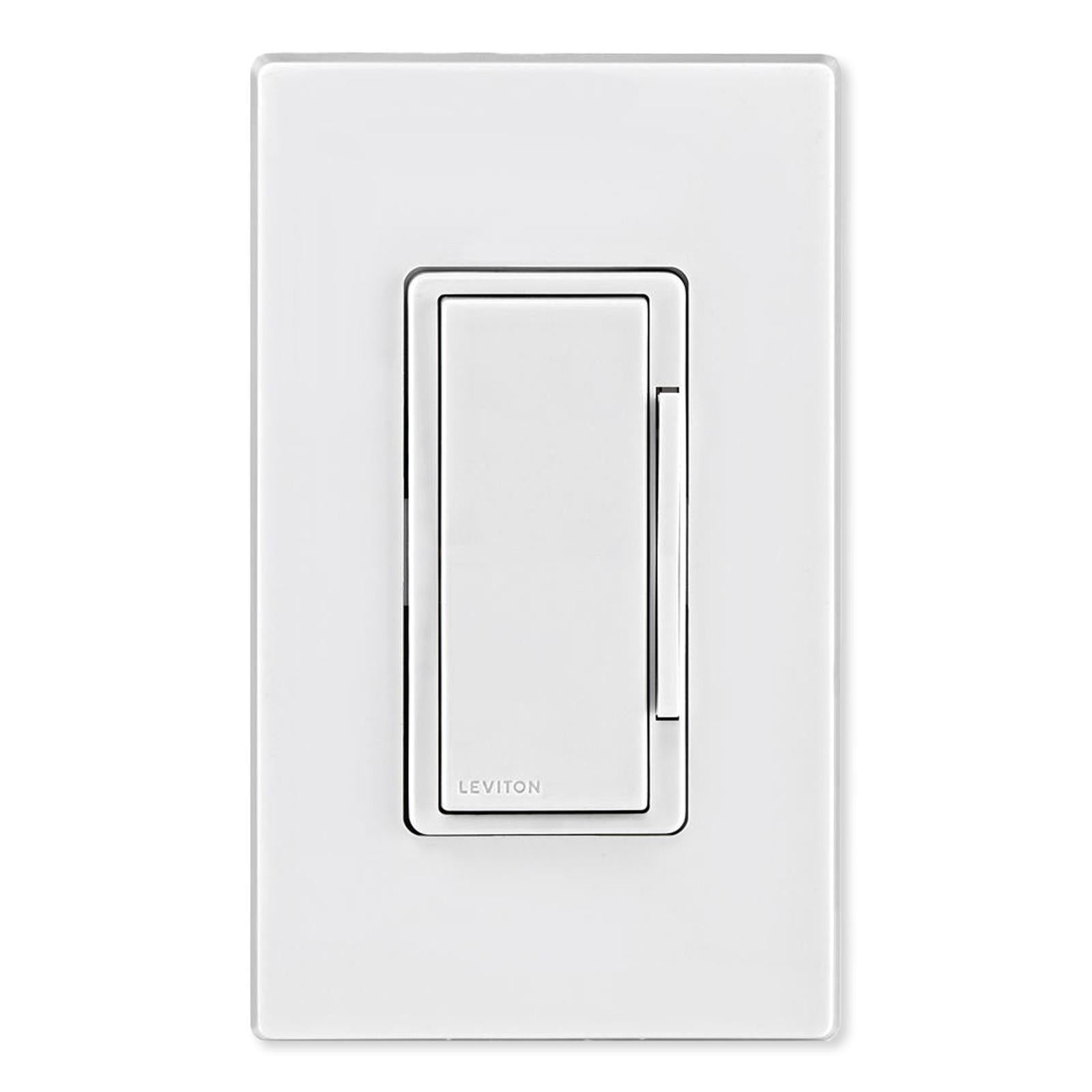

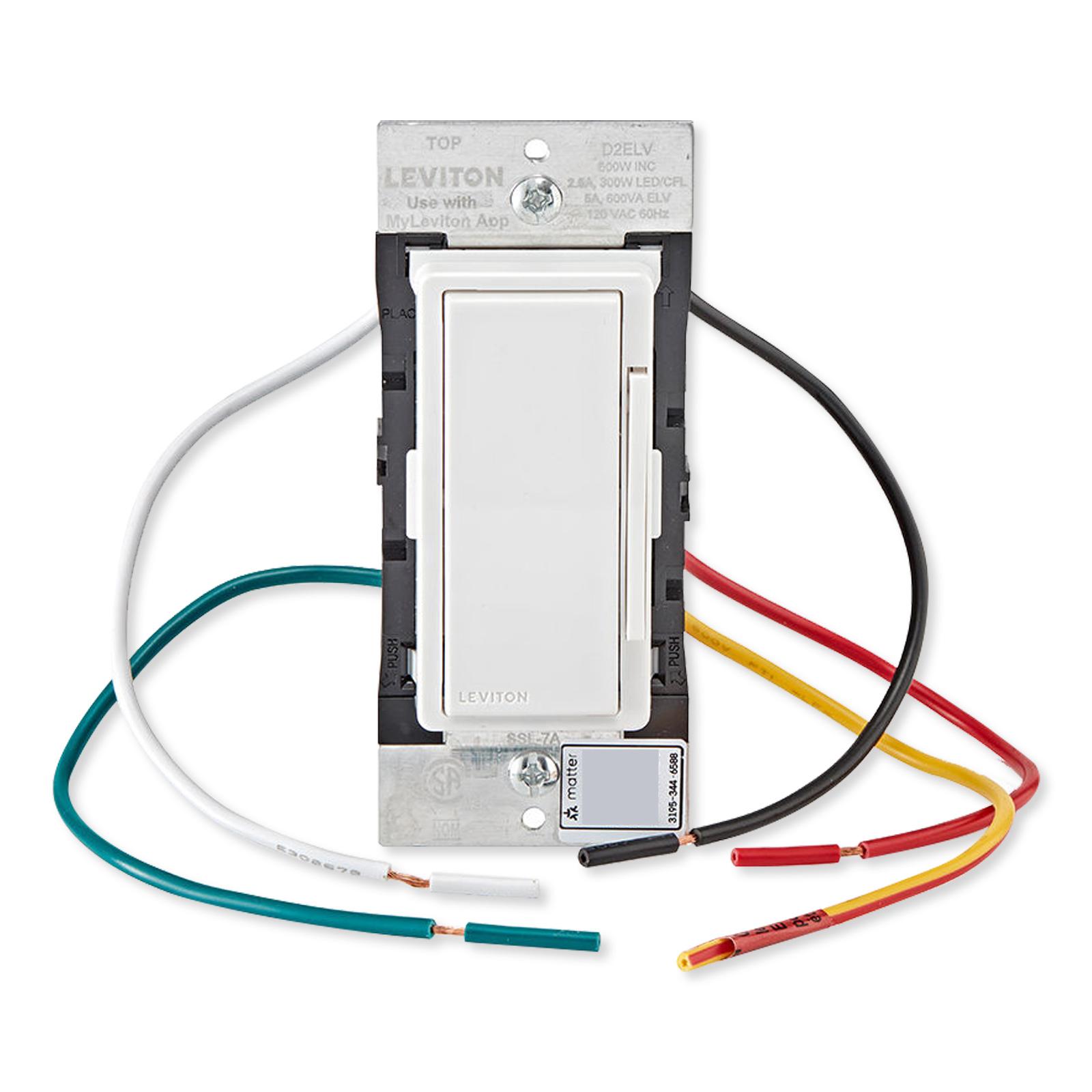

Leviton Decora Smart ELV/LED Phase Selectable Dimmer (2nd Gen)

Add Wi-Fi and Voice Control Over Your Lights

Control connected electrical loads locally or with a smartphone via Wi-Fi with the Leviton Decora Smart® ELV/LED Phase Selectable Dimmer (2nd Gen). This Wi-Fi connected dimmer switch commands and schedules lights controlled by the switch to turn On/Off and Dim/Brighten on demand or as a part of a programmed schedule or automated scenes. This Smart Dimmer is Phase Selectable, which enables it to safely control dimmable LED / CFL, Incandescent, and low voltage lighting. Phase Dimming can be optionally selected to tailor dimming performance for specific lighting fixtures and personalize indoor lighting scenes with customizable fade rates that gradually turn lighting on or off, or preset light level options to make sure lights always come on at the desired level. The Dimmer can have its Phase Dimming Mode changed at the device or through the My Leviton app and requires no automation hub or gateway to operate. An LED indicator light displays current and target light levels. The D2ELV supports single-pole and 3-way/multi-way applications when paired with a DAWDC wire-fee Anywhere Dimmer Companion or DD00R wired dimmer companion.

• Wi-Fi connected smart dimmer switch adds remote On/Off control to connected devices and On/Off/Dim/Brighten Control
• Commands general outlets and switches up to 120 VAC, LEDs and CFLs up to 300W, Incandescents and Halogens up to 600W, and Electronic Low Voltage (ELV) devices up to 600VA
• LED indicator light displays current and target light levels
• Turn On/Off and Dim/Brighten connected lights locally or over Wi-Fi via My Leviton app, no hub required
• Program individual or grouped lights to turn On/Off at scheduled times or as part of lighting or automated scenes via My Leviton app
• Performs in single-pole or 3-Way wiring applications with DD00R Wired Dimmer Companion, DD0SR Wired Switch Companion, DAWDC wire-free Anywhere Dimmer Companion, or DAWSC wire-free Anywhere Switch Companion switches
• Voice-control compatible with Amazon Alexa, Google Assistant, and Apple Siri

Decora Smart Wi-Fi 2nd Generation

The Decora Smart Wi-Fi 2nd Generation family of products build upon the features and capabilities of the original Decora Smart Wi-Fi devices, creating a streamlined and more robust smart home experience. 2nd Gen Decora Smart Wi-Fi products are compatible with existing 1st Gen Decora Smart Wi-Fi devices including in-wall dimmers/switches and plug-in modules for appliances and lamps.

Control from Anywhere – No Hub Required

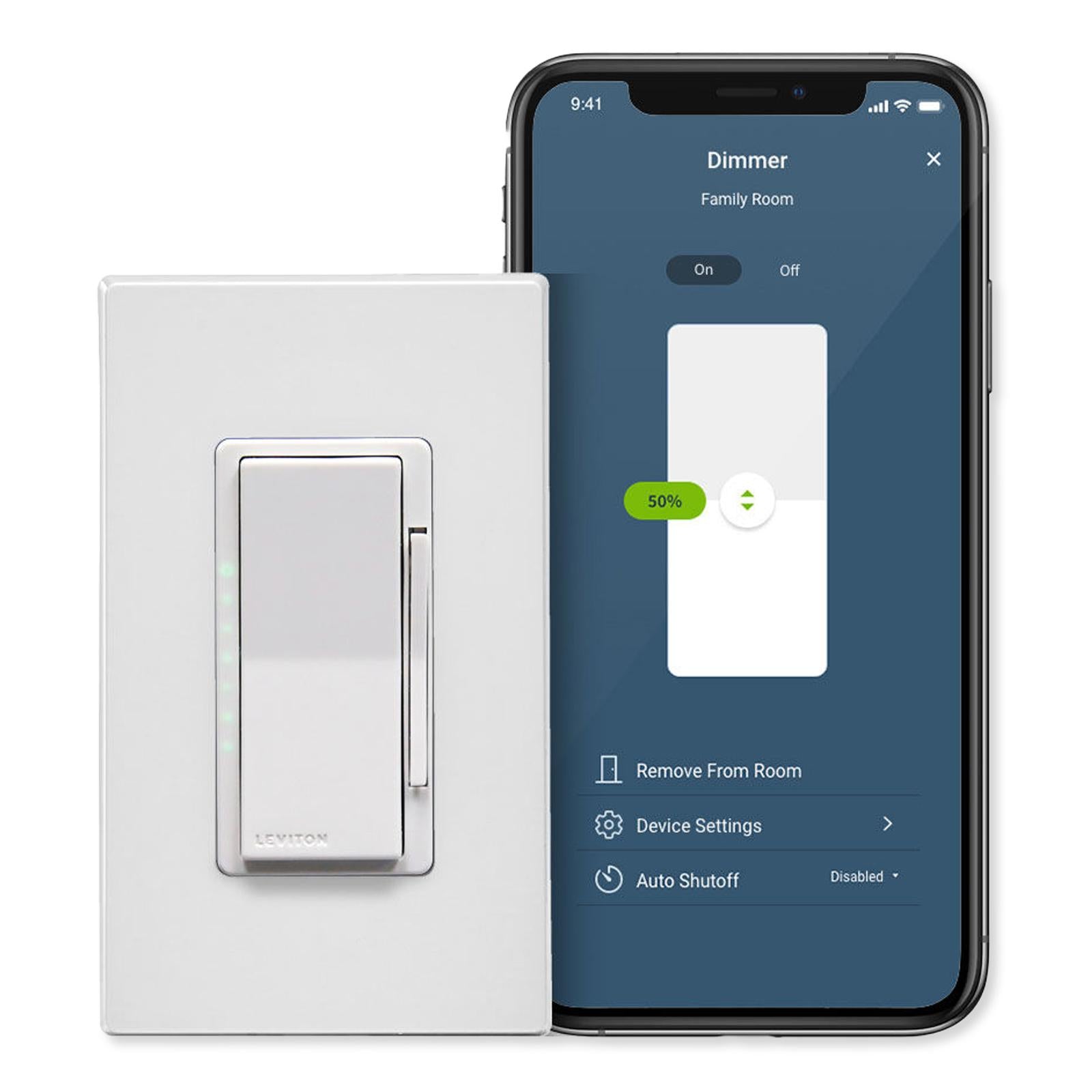

Control connected loads and lights using the free My Leviton app for iOS and Android, no hub required. Simplify control of the residence – schedule lights and connected loads to turn on/off at specific times or based on sunrise/sunset, easily group smart devices into rooms, and create activities (aka scenes) to command multiple lights at once.

My Lights. My Home. My Family. My Leviton.

Control up to 99 devices, 50 rooms, 50 activities (or scenes), and 5 schedules per residence and up to 20 residences per account.

Create schedules like "Good Morning" to activate appropriate lighting at preset times. For instance, at 6:30AM every Monday through Friday, turn the bedroom lights to 25% and master bath lights to 50%.

Adaptable Voice and Remote Control

• Compatible with Apple HomeKit, IFTTT, SmartThings, and Schlage Encode wireless systems
• Compatible with both Amazon Alexa, Google Assistant, and Apple Siri voice control
• Streamlined device setup using Bluetooth

Installation Details

The Leviton Decora Smart® ELV/LED Phase Selectable Dimmer (2nd Gen) replaces a single-pole wall switch and fits in a standard single-gang electrical box. A neutral wire is needed for installation. For remote control via the My Leviton app, or a compatible smart hub or controller, the Phase Selectable Dimmer must be included into your local Wi-Fi network.

Contents

• Leviton Phase Selectable Dimmer
• Manual

Notes

• A neutral wire is needed for installation.
• Wallplate sold separately.
• Inclusion into select smart home networks, ie Matter or SmartThings ecosystems, may require a smart hub, sold separately.
