    Home / Shelly / 1-phase, 2-channel relay with two integrated precise power meters that allow customers to control and monitor the consumption for each channel separately. Suitable for roller shutter automation.
    1-phase, 2-channel relay with two integrated precise power meters that allow customers to control and monitor the consumption for each channel separately. Suitable for roller shutter automation.
    1-phase, 2-channel relay with two integrated precise power meters that allow customers to control and monitor the consumption for each channel separately. Suitable for roller shutter automation.
    1-phase, 2-channel relay with two integrated precise power meters that allow customers to control and monitor the consumption for each channel separately. Suitable for roller shutter automation.
    1-phase, 2-channel relay with two integrated precise power meters that allow customers to control and monitor the consumption for each channel separately. Suitable for roller shutter automation.
    1-phase, 2-channel relay with two integrated precise power meters that allow customers to control and monitor the consumption for each channel separately. Suitable for roller shutter automation.
    1-phase, 2-channel relay with two integrated precise power meters that allow customers to control and monitor the consumption for each channel separately. Suitable for roller shutter automation.
    1-phase, 2-channel relay with two integrated precise power meters that allow customers to control and monitor the consumption for each channel separately. Suitable for roller shutter automation.
    1-phase, 2-channel relay with two integrated precise power meters that allow customers to control and monitor the consumption for each channel separately. Suitable for roller shutter automation.
    1-phase, 2-channel relay with two integrated precise power meters that allow customers to control and monitor the consumption for each channel separately. Suitable for roller shutter automation.
    1-phase, 2-channel relay with two integrated precise power meters that allow customers to control and monitor the consumption for each channel separately. Suitable for roller shutter automation.
    1-phase, 2-channel relay with two integrated precise power meters that allow customers to control and monitor the consumption for each channel separately. Suitable for roller shutter automation.
    1-phase, 2-channel relay with two integrated precise power meters that allow customers to control and monitor the consumption for each channel separately. Suitable for roller shutter automation.

    1-phase, 2-channel relay with two integrated precise power meters that allow customers to control and monitor the consumption for each channel separately. Suitable for roller shutter automation.

    SHPRO2PMULUS

    $119.99

    Notify me when this product is available:

    Add Wi-Fi and Bluetooth Connectivity to 2 Switches or Outlets

    Add Wi-Fi, LAN, & Bluetooth connectivity and live energy monitoring to 2 electrical loads with the Shelly Pro 2PM Wi-Fi & Bluetooth Relay Module with Power Monitoring! This 1-phase, 2-channel dry contact relay module mounts inside your breaker box to add Wi-Fi & Bluetooth remote control and energy monitoring for up to two electrical loads in your home or business. The Pro 2PM supports up to 25A for a single load or up to 16A from two connected loads to allow you to add automated control over appliances, computers, or overhead lighting from one or two switches or outlets. Once installed, the Pro 2PM can be connected to your existing smart home Wi-Fi network and enable your connected devices to respond to remote commands and automated scenes, as well as monitor energy consumption of devices connected to your selected switches or outlets.

    • Manufacturer Part #: SPSW-202PE16EU
    • Model Part: Pro 2PM
    • EAN: 3800235268032
    • Warranty: 5-Year

    Radio

    • RF Band: 2400 – 2495 MHz
    • Max. RF Power: <20 dBm
    • Wi-Fi Protocol: 802.11 b/g/n
    • Wi-Fi Range: Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
    • Bluetooth Protocol: 4.2
    • Bluetooth Range: Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)

    Physical

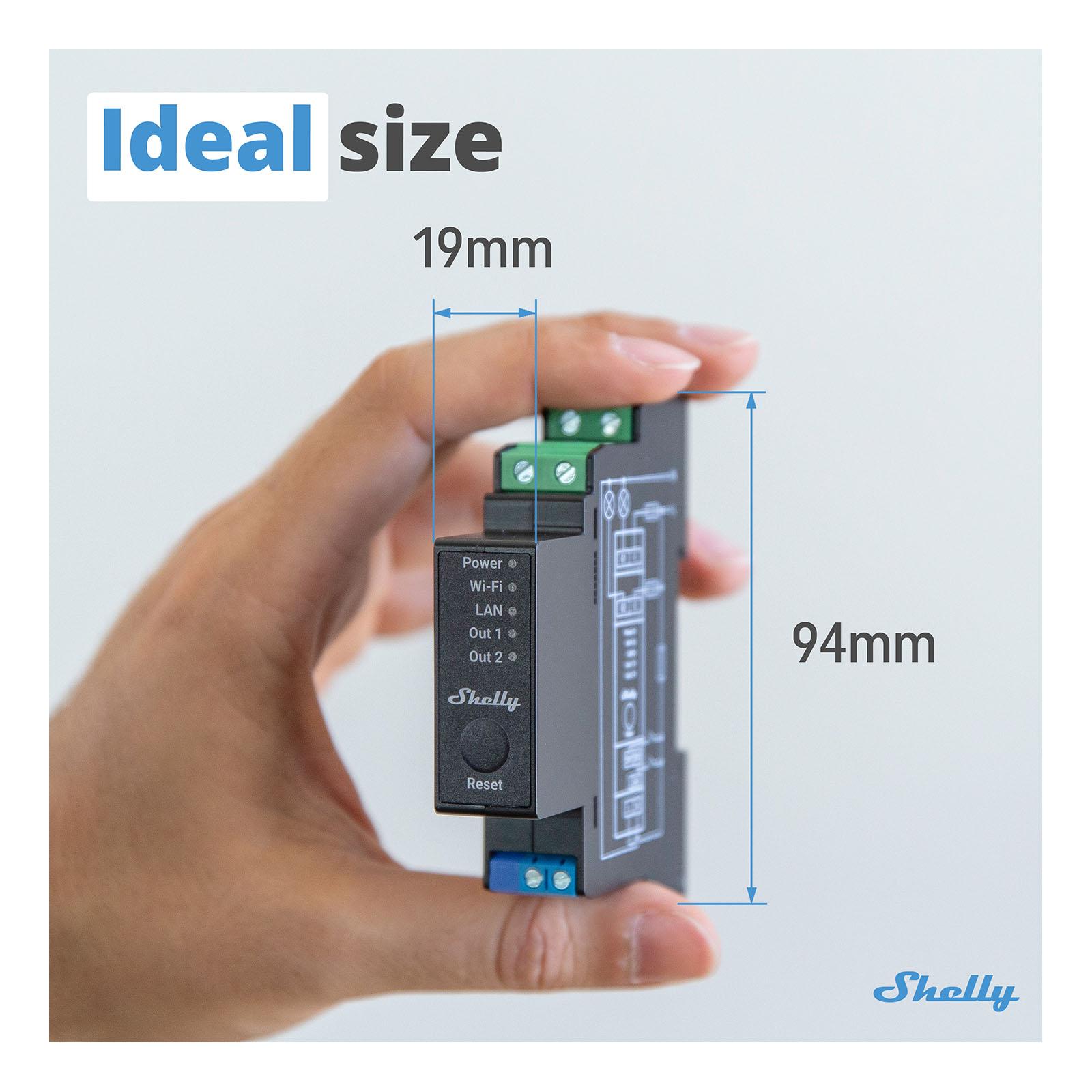

    • Size (HxWxD): 94 x 19 x 69 ±0.5 mm / 3.70 x 0.75 x 2.71 inches ±0.02
    • Weight: 76 g / 2.22 oz.
    • Mounting: DIN rail
    • Screw Terminals Max Torque: 0.4 Nm / 3.54 lb

    »Shelly Pro 2PM DIN Mountable 2-Circuit Wi-Fi Smart Relay with Power Measurement Functionality User Manual (Multilingual) (.pdf)
