    Home / Shelly / 1-phase, 1-channel relay with potential-free outputs (dry contacts), supporting up to 16A for professional lights and appliance automation for residential or commercial use.

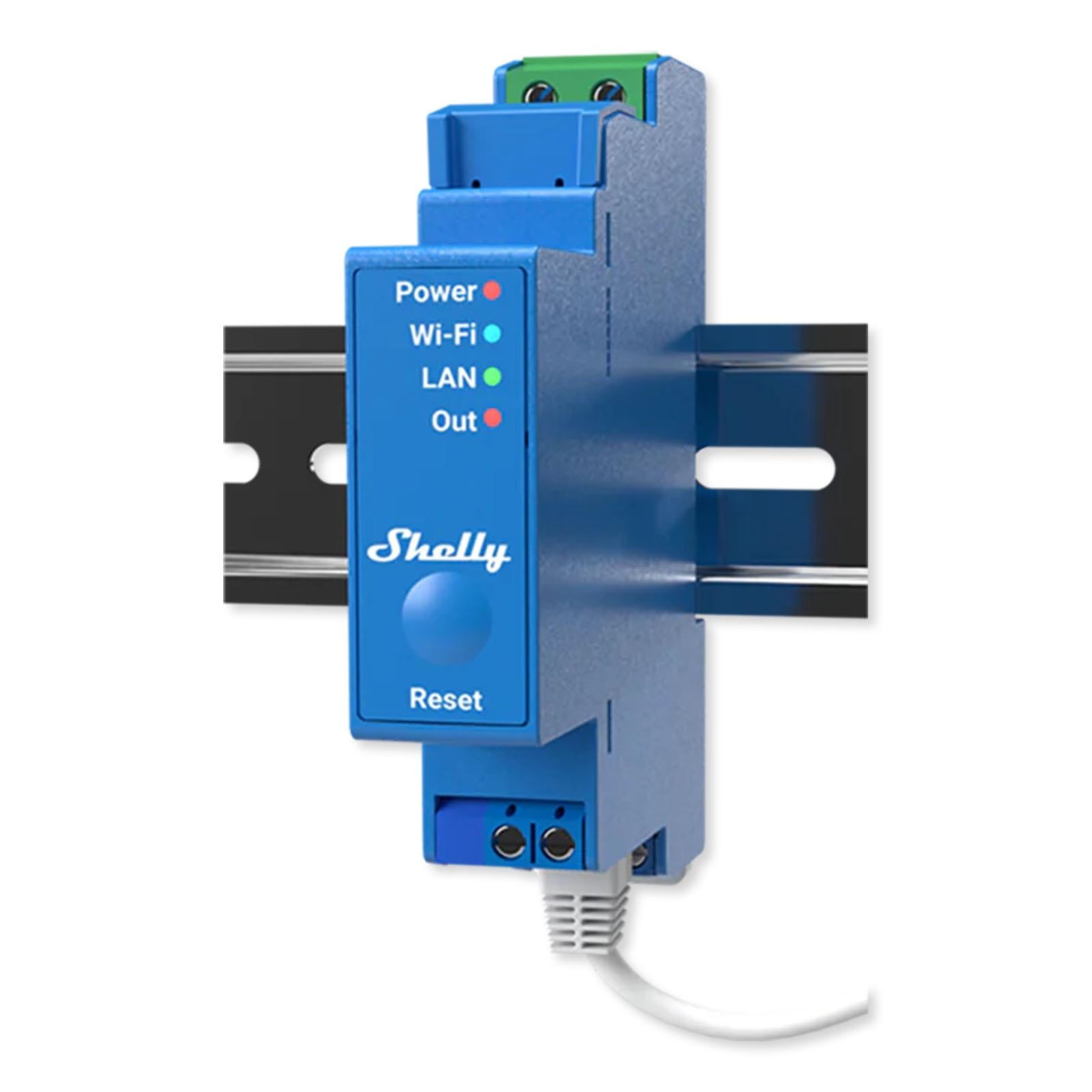

    1-phase, 1-channel relay with potential-free outputs (dry contacts), supporting up to 16A for professional lights and appliance automation for residential or commercial use.
    1-phase, 1-channel relay with potential-free outputs (dry contacts), supporting up to 16A for professional lights and appliance automation for residential or commercial use.
    1-phase, 1-channel relay with potential-free outputs (dry contacts), supporting up to 16A for professional lights and appliance automation for residential or commercial use.
    1-phase, 1-channel relay with potential-free outputs (dry contacts), supporting up to 16A for professional lights and appliance automation for residential or commercial use.
    1-phase, 1-channel relay with potential-free outputs (dry contacts), supporting up to 16A for professional lights and appliance automation for residential or commercial use.
    1-phase, 1-channel relay with potential-free outputs (dry contacts), supporting up to 16A for professional lights and appliance automation for residential or commercial use.
    1-phase, 1-channel relay with potential-free outputs (dry contacts), supporting up to 16A for professional lights and appliance automation for residential or commercial use.
    1-phase, 1-channel relay with potential-free outputs (dry contacts), supporting up to 16A for professional lights and appliance automation for residential or commercial use.
    1-phase, 1-channel relay with potential-free outputs (dry contacts), supporting up to 16A for professional lights and appliance automation for residential or commercial use.
    1-phase, 1-channel relay with potential-free outputs (dry contacts), supporting up to 16A for professional lights and appliance automation for residential or commercial use.
    1-phase, 1-channel relay with potential-free outputs (dry contacts), supporting up to 16A for professional lights and appliance automation for residential or commercial use.
    1-phase, 1-channel relay with potential-free outputs (dry contacts), supporting up to 16A for professional lights and appliance automation for residential or commercial use.

    1-phase, 1-channel relay with potential-free outputs (dry contacts), supporting up to 16A for professional lights and appliance automation for residential or commercial use.

    SHPRO1ULUS

    $69.99

    Notify me when this product is available:

    Add Wi-Fi, LAN, & Bluetooth Connectivity to A Switch or Outlet

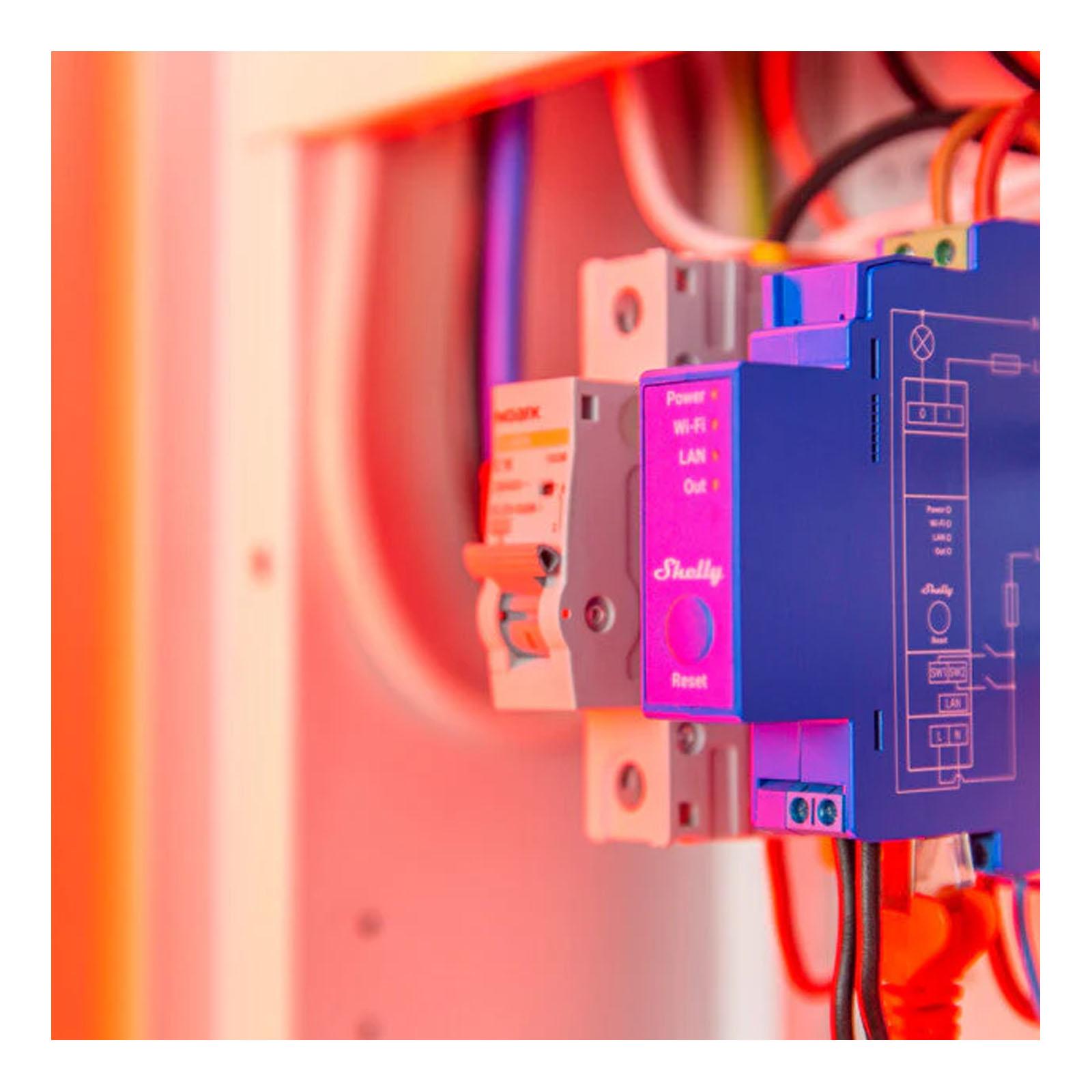

    Add remote Wi-Fi, LAN, & Bluetooth connectivity to devices controlled by a switch or outlet with the Shelly Pro 1 Wi-Fi & Bluetooth Relay Module! This dry contact relay module mounts inside your breaker box to add Wi-Fi & Bluetooth remote On/Off control to an electrical load rated up to 15A in your home or business. Once installed, the Pro 1 can be connected to your existing smart home Wi-Fi network and enable your connected devices to respond to remote commands and automated scenes. Manage and control your Shelly Pro 1 and other Shelly devices from the Shelly Smart Control app. Wi-Fi and Bluetooth compatible Shelly devices do not require a smart hub for remote operation, assigning automated or scheduled functions, or inclusion into a smart scene/routine.

    Wo

    • Manufacturer Part #: SPSW-201XE16EU
    • Model Part: Pro 1
    • EAN: 3800235268001
    • Warranty: 5-Year

    Radio

    • RF Band: 2400 – 2495 MHz
    • Max. RF Power: <20 dBm
    • Wi-Fi Protocol: 802.11 b/g/n
    • Wi-Fi Range: Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
    • Bluetooth Protocol: 4.2
    • Bluetooth Range: Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)

    Physical

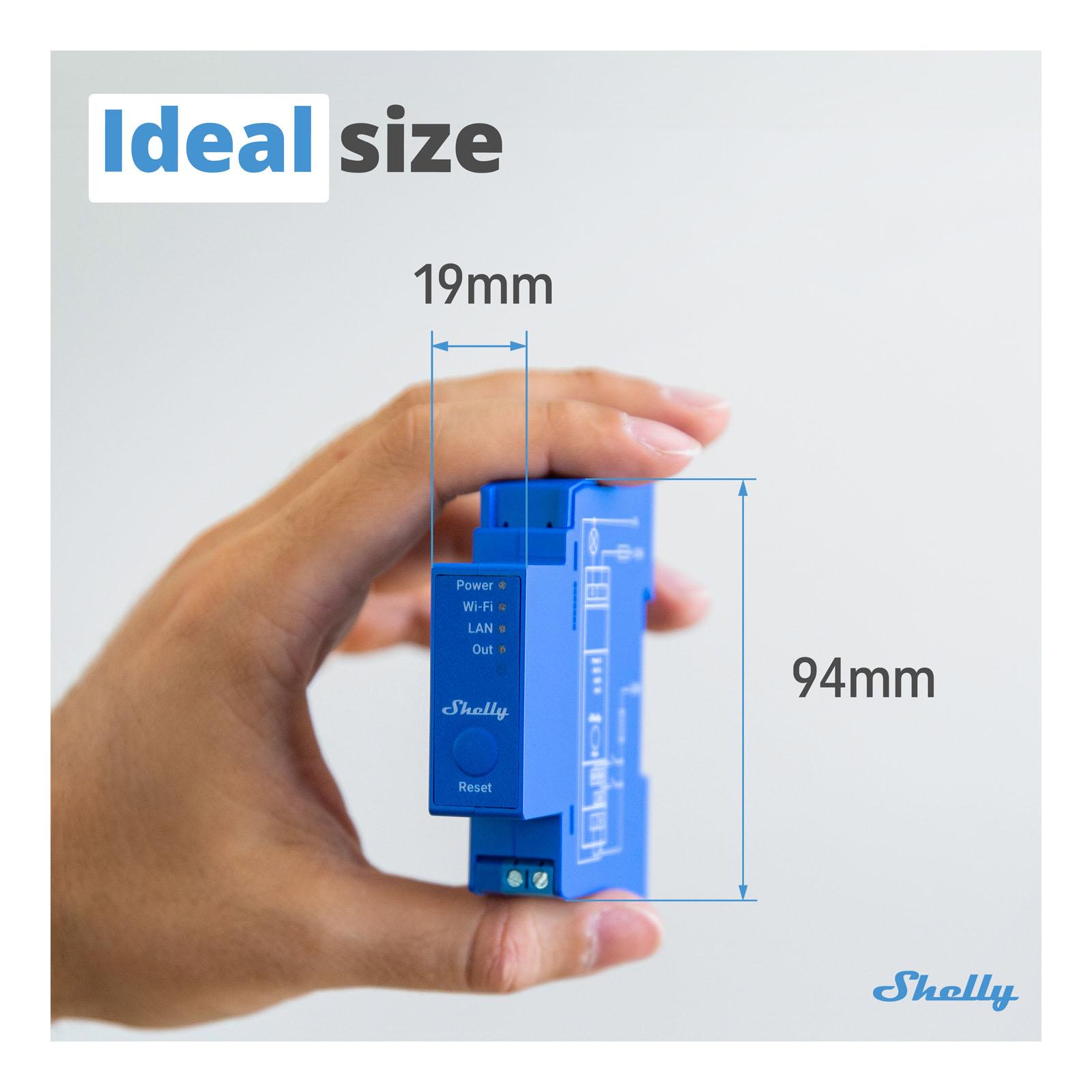

    • Size (HxWxD): 94 x 19 x 69 ±0.5 mm / 3.70 x 0.75 x 2.71 ±0.02 in
    • Weight: 63 g / 2.22 oz.
    • Mounting: DIN rail
    • Screw Terminals Max Torque: 0.4 Nm / 3.54 lb in

    »Shelly Pro 1 DIN Mountable LAN & Wi-Fi Smart Relay User Manual (Multilingual) (.pdf)
