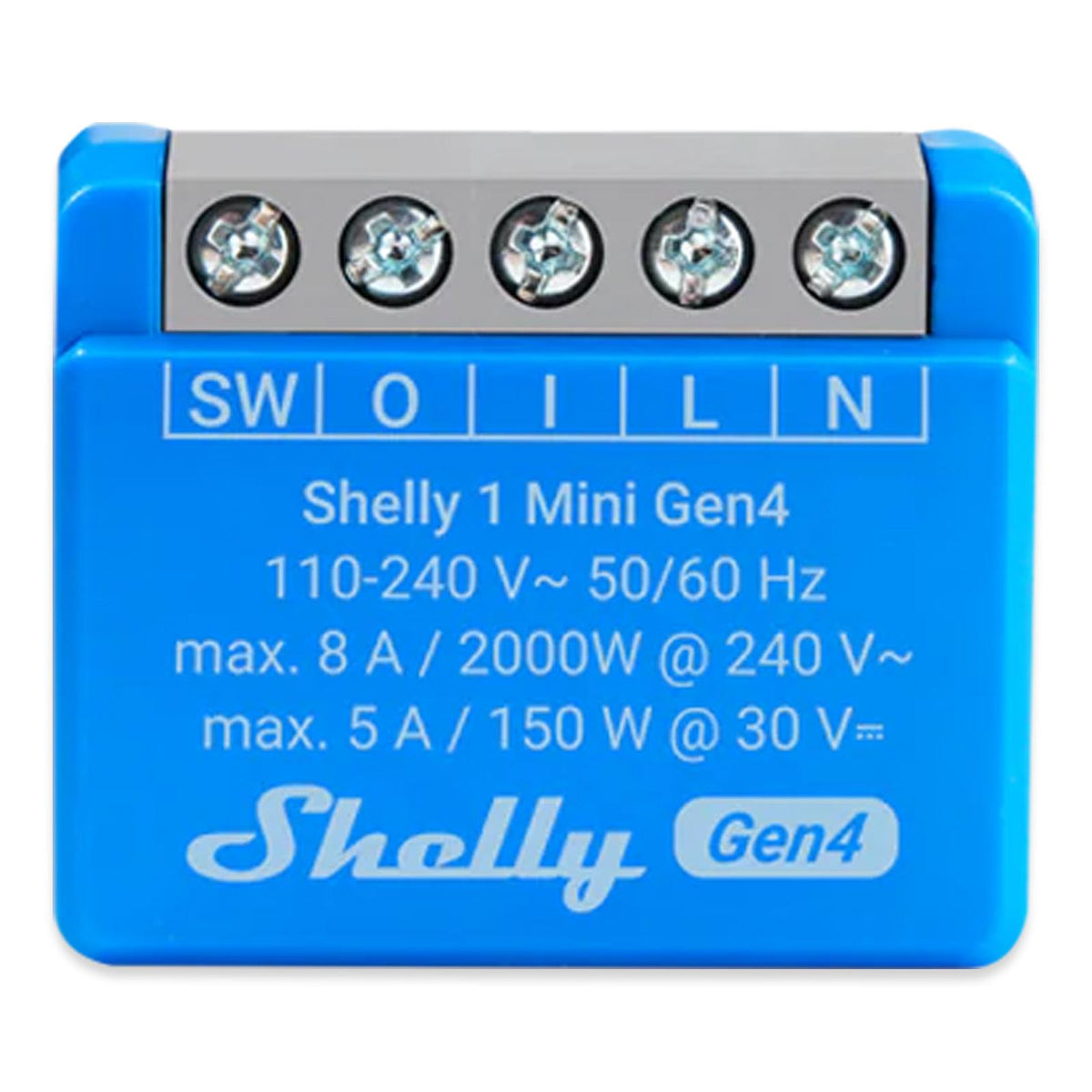

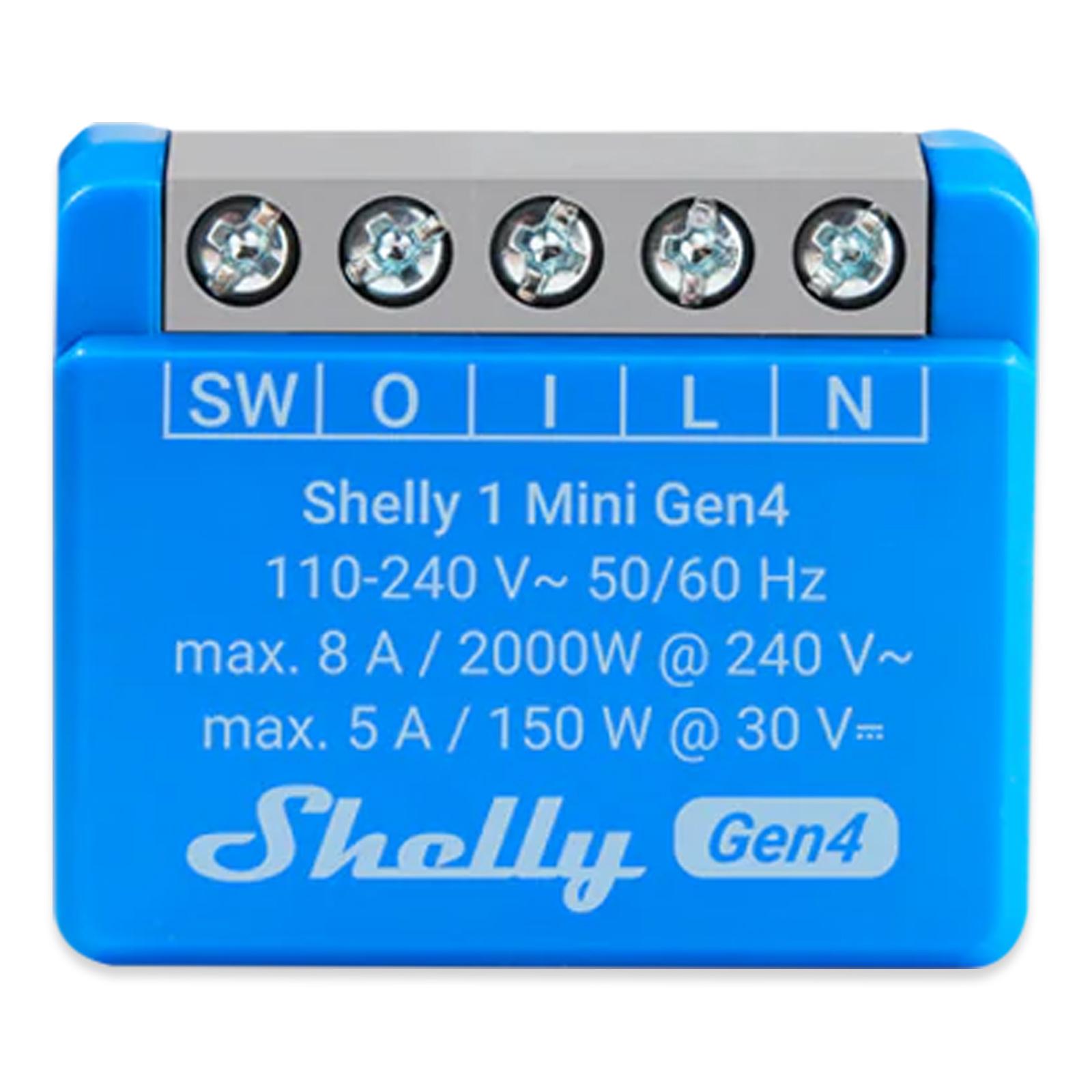

  • Shelly 1 Mini Gen4 Compact Smart Switch

    SH1MINIGEN4

    Add Multiprotocol Connectivity To Lights And Appliances

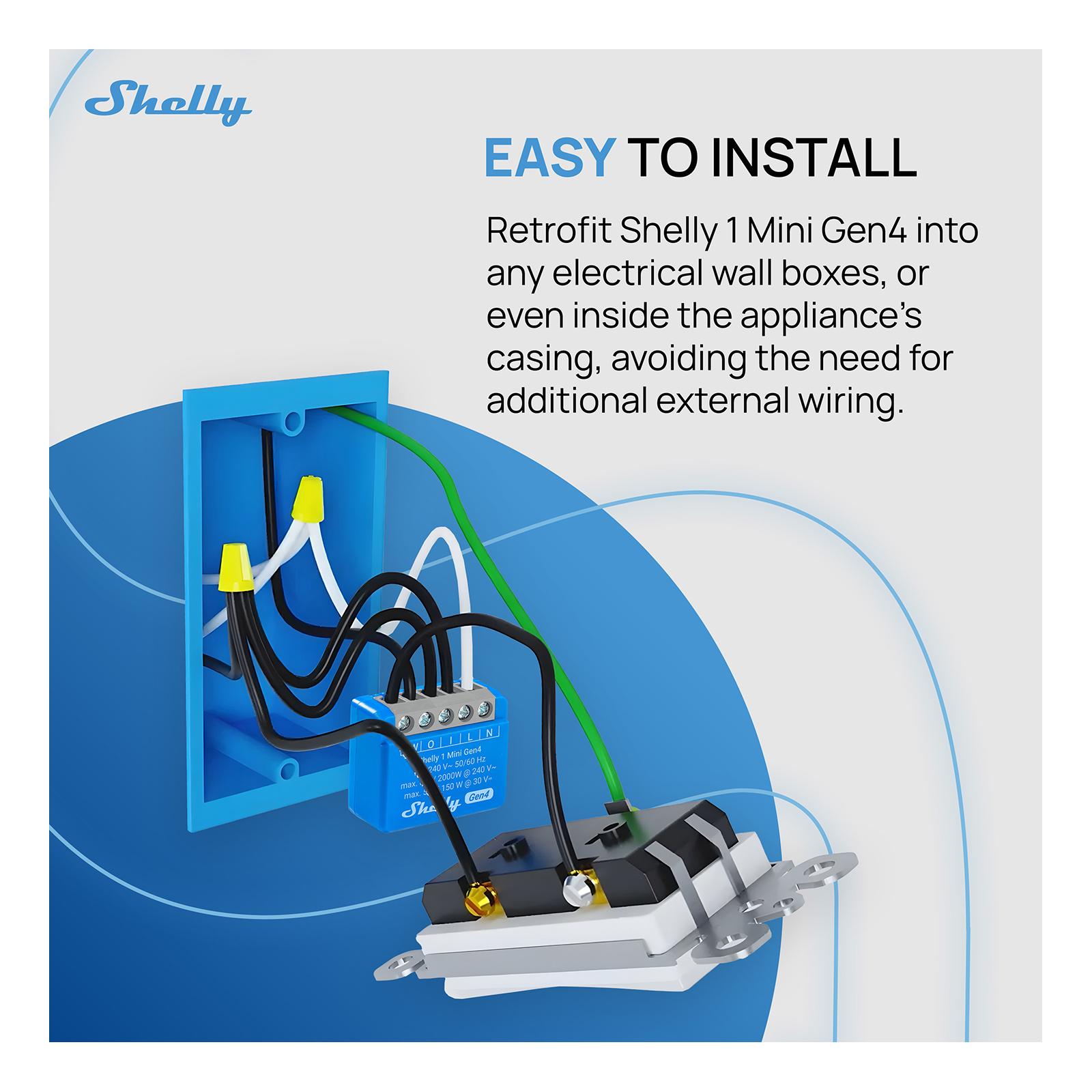

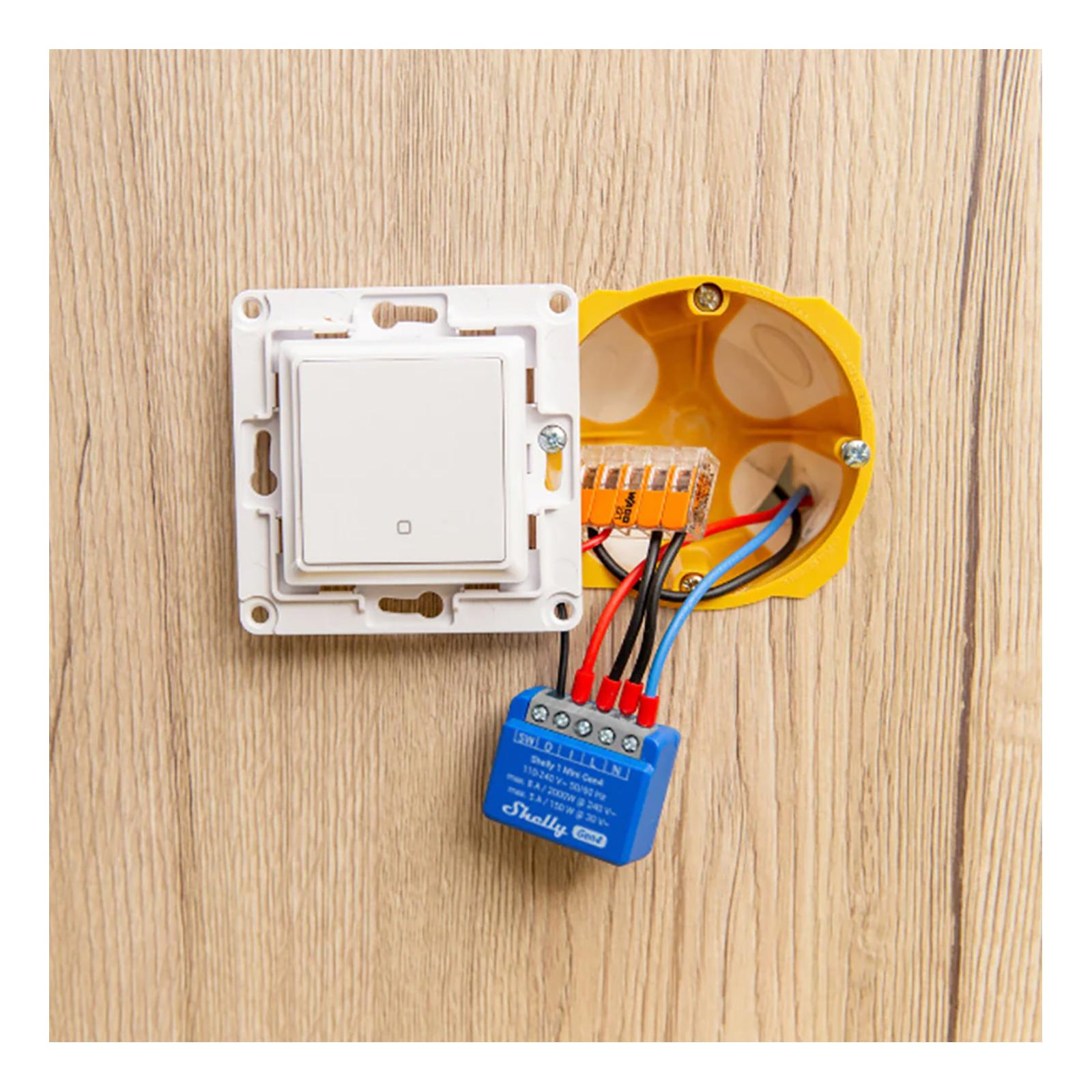

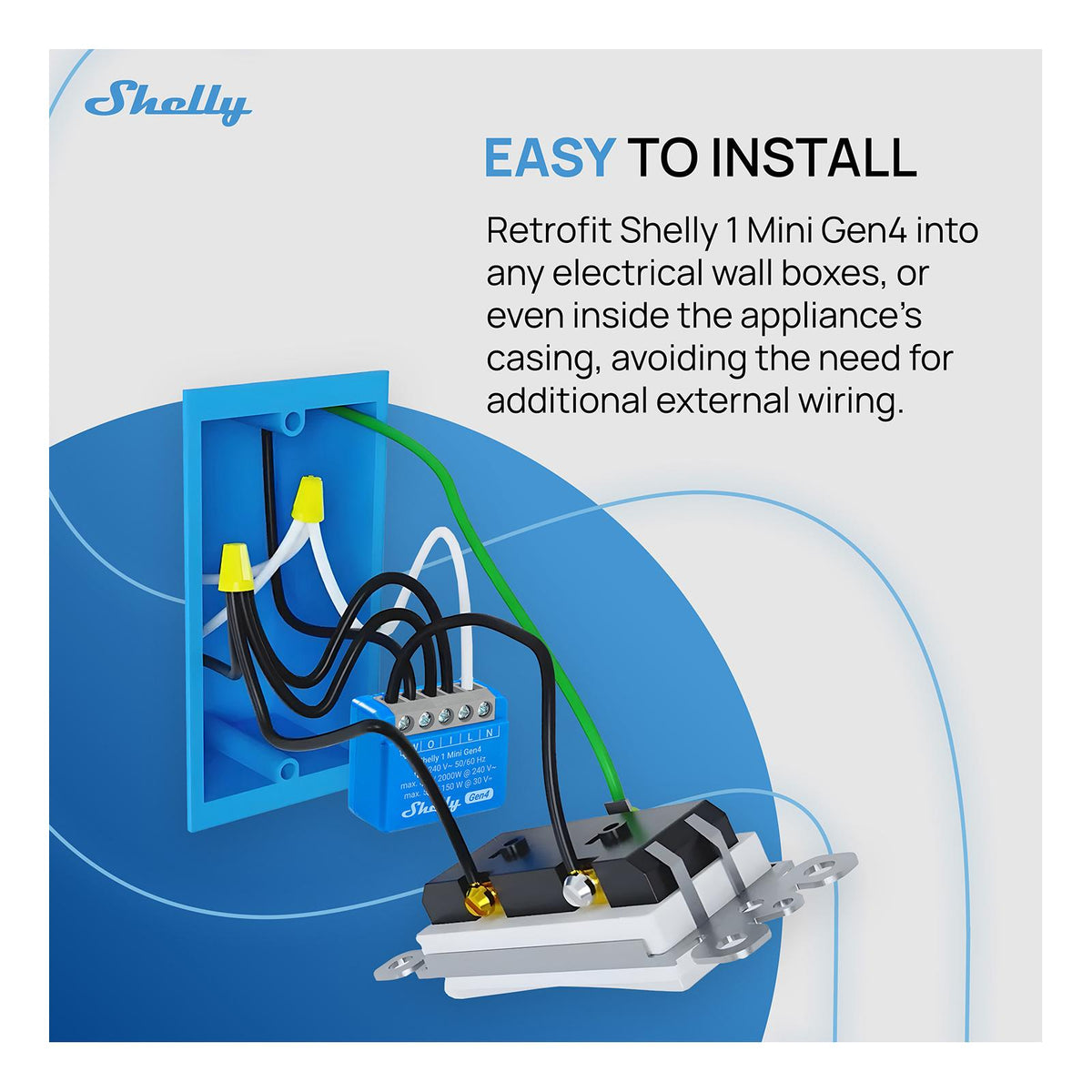

    Upgrade an existing light switch, wall outlet, or electrical appliance to include wireless control and connectivity with the Shelly 1 Mini Gen4 Compact Smart Switch. This compact smart switch installs behind a wall switch, outlet, or in a tight space to add Wi-Fi, Zigbee, Matter, or Bluetooth remote control of lights and connected devices. It features 1 switch/button input, 2 power supply inputs, and 1 potential-free contacts relay input. It's compatible with various load types, such as resistive loads (incandescent bulbs and heating devices), capacitive loads (capacitor banks, electronic equipment, and motor start capacitors), and inductive loads (LED light drivers, transformers, fans, refrigerators, and air conditioners).

    The Shelly 1 Mini Gen4 does not need a smart hub to operate and can be easily controlled via the Shelly Smart Control app (for iOS and Android). It also wo

    • Manufacturer Part #: 1 Mini Gen4
    • EAN: 3800238070786

    Physical

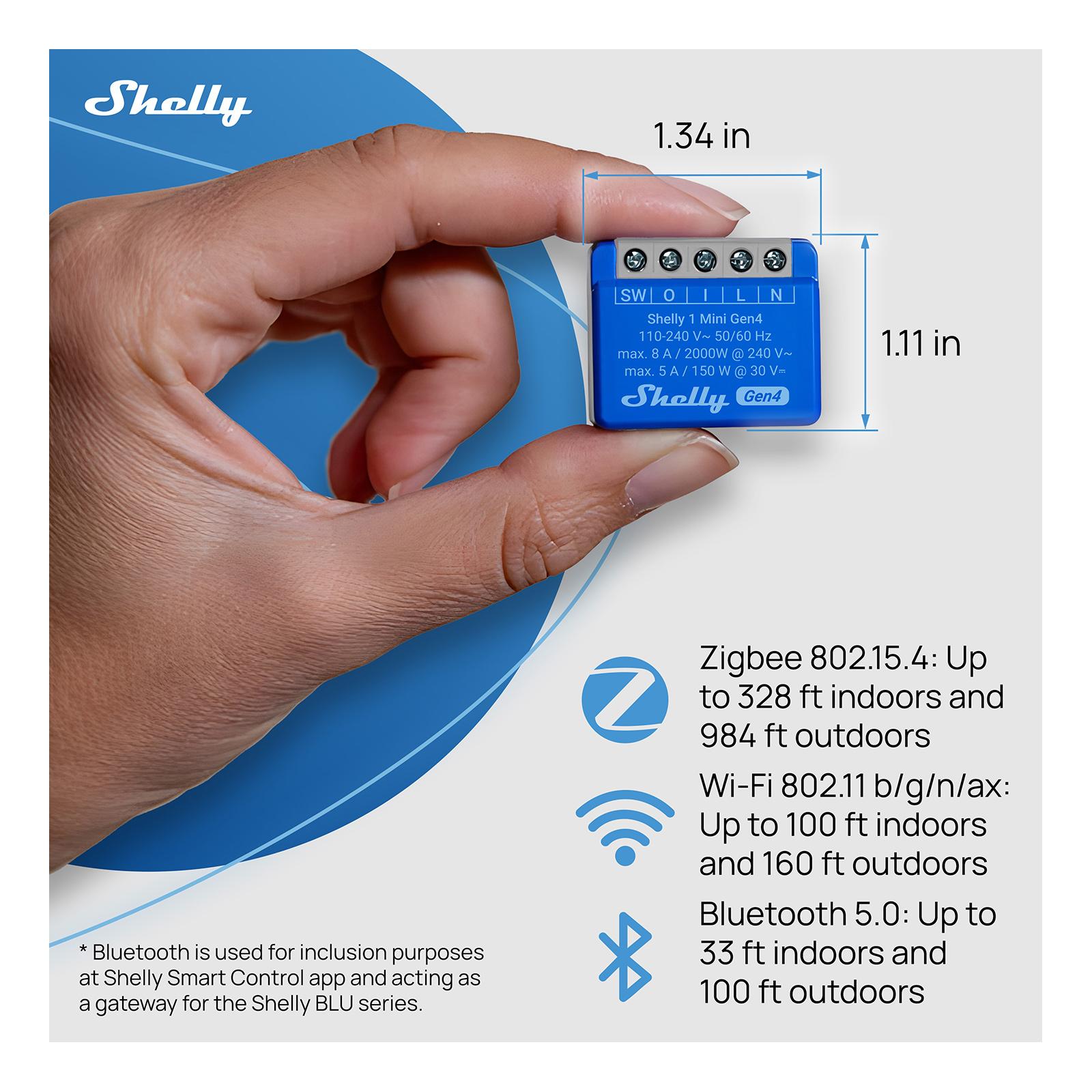

    • Size (HxWxD): 29 x 34 x 16 ±0.5 mm / 1.34 x 1.11 x 0.63 ±0.02 inch
    • Weight: 19 ±1 g / 0.65 ±0.04 oz
    • Screw Terminals Max Torque: 0.4 Nm / 3.5 lbin
    • Conductor Cross Section: 0.2 to 2.5 mm2 / 24 to 14 AWG (solid, stranded, and bootlace ferrules)
    • Conductor Stripped Length: 6 to 7 mm / 0.24 to 0.28 in
    • Mounting: Wall Box
    • Shell Material: Plastic
    • Shell Color: Blue
    • Connector Color: Grey

    Environmental

    • Ambient Working Temperature: -20°C to 40°C / -5°F to 105°F
    • Humidity: 30% to 70% RH
    • Max
