    Home / Security Sensors / Sensaphone WSG30 Wireless Dry Contact Interface

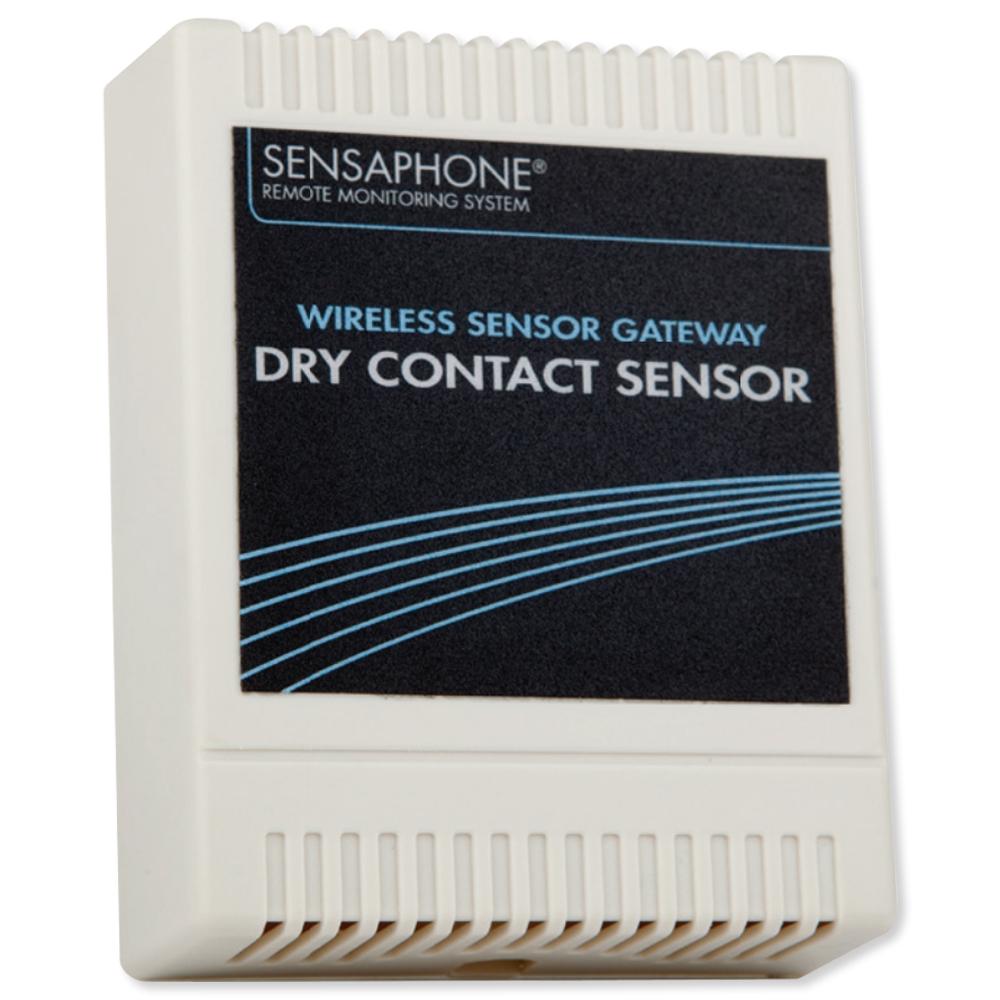

    Sensaphone WSG30 Wireless Dry Contact Interface

    Sensaphone WSG30 Wireless Dry Contact Interface

    PHFGDWSG30DRY

    $189.00

    Notify me when this product is available:

    Remotely Monitor Any Wired Dry Contact

    Add any wired dry contact/output to your wireless Sensaphone environmental monitoring system with the Sensaphone WSG30 Wireless Dry Contact Interface (also known as the Dry Contact Sensor). This simple sensor provides a wiring terminal to accept any normally open (NO) or normally closed (NC) dry contact with wires stripped to 0.25 inches. It's perfect for adding wired water level sensors, dry contact switches and relays, and other dry contact devices.

    This wireless sensor works with the Sensaphone WSG30 Wireless Sensor Gateway (sold separately), allowing you to remotely receive alerts from anywhere you have internet access.

    • Adds any wired dry contact (NO/NC) to your wireless Sensaphone system
    • Compatible with the WSG30 Wireless Sensor Gateway
    • Wireless range up to 300 feet (90m) indoors
    • Battery-powered with option to use plug-in power supply

    • Manufacturer Part #: FGD-WSG30-DRY
    • Name: Dry Contact Interface
    • Power: 2 AA alkaline batteries (included); optional 5VDC (300mA) plug-in adapter (not included)
    • Battery Life: 2 Years
    • Operating Temperature: 32° to 122°F (0° to 50°C)
    • Input: Normally open or normally closed dry contact
    • Wireless Range: 300 feet (90m) indoors
    • Connection: Wireless
    • Operating Frequency: ISM 2.4 GHz
    • Transmit Power Output: 100mW (20dBm)
    • Housing: White Plastic
    • Dimensions: 3.1 x 3.9 x 1.1 inches (79 x 99 x 28mm)
    • Sensor Series: WSG Wireless
    • Warranty: 1 Year

    »Sensaphone FGD-WSG30-DRY WSG Wireless Dry Contact Interface Spec Sheet (.pdf)»Sensaphone WSG30 Web Based Monitoring with Wireless Sensors Brochure (.pdf)»Sensaphone WSG30 Expand the Capabilities of your Sensaphone Accessories (.pdf)»Sensaphone WSG30 Wireless Sensor Gateway User Manual (.pdf)»
