    Home / Security Sensors / Sensaphone WSG30 Wireless 4-20mA Interface

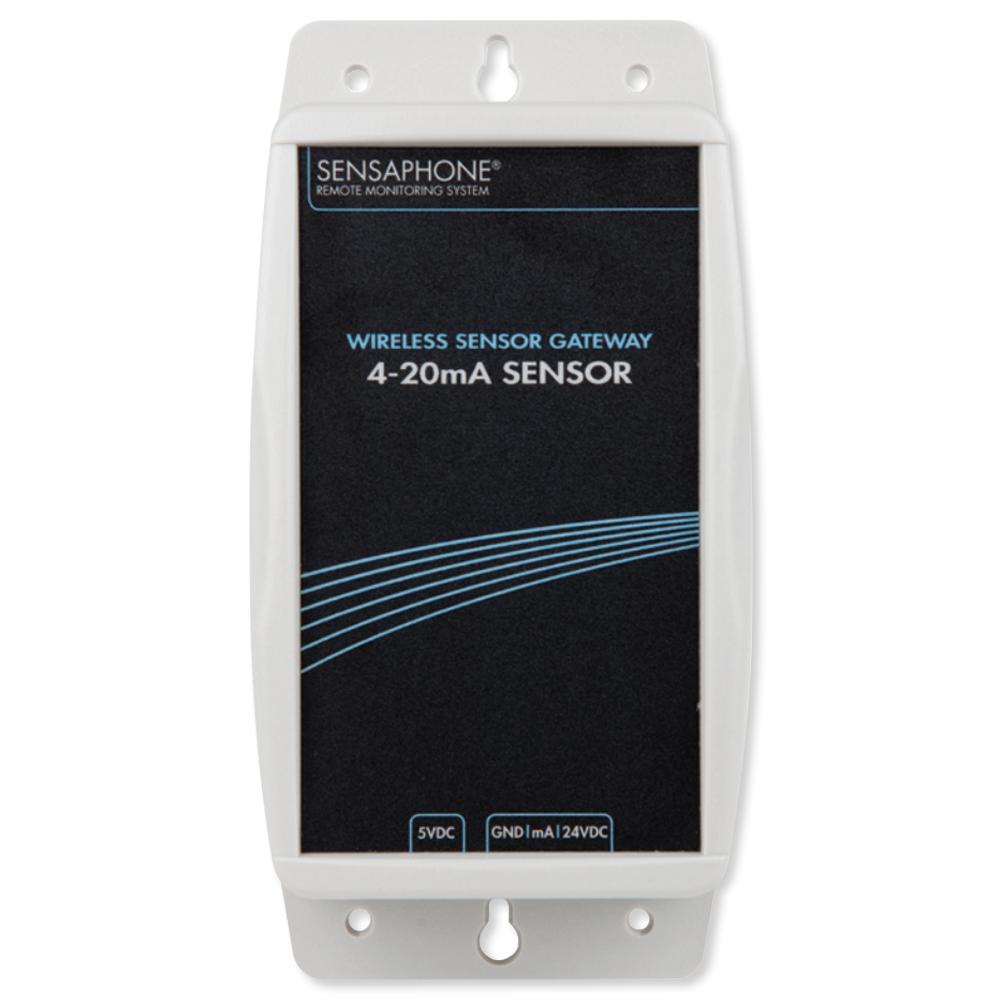

    Sensaphone WSG30 Wireless 4-20mA Interface

    Sensaphone WSG30 Wireless 4-20mA Interface

    PHFGDWSG30420

    $259.00

    Notify me when this product is available:

    Remotely Monitor Any 4-20mA Transducer

    Monitor the output of any 4-20mA transducer, such as a pressure sensor, using the Sensaphone WSG30 Wireless 4-20mA Interface (also known as the 4-20mA Sensor). This wireless sensor has a 4-20mA input (260 Ohms, max input 23mA) and a 24V loop power supply. It works with the Sensaphone WSG30 Wireless Sensor Gateway (sold separately), allowing you to remotely check the output and receive alerts from anywhere you have internet access.

    • Monitors the output of any 4-20mA transducer
    • Has a 4-20mA input and a 24V loop power supply
    • Compatible with the WSG30 Wireless Sensor Gateway
    • Wireless range up to 300 feet (90m) indoors
    • Battery-powered with option to use plug-in power supply

    Installation Details

    The sensor comes with screws and drywall anchors for mounting to a flat surface. It also includes three AA alkaline batteries

    »Sensaphone FGD-WSG30-4-20 WSG Wireless 4-20mA Interface Spec Sheet (.pdf)»Sensaphone WSG30 Web Based Monitoring with Wireless Sensors Brochure (.pdf)»Sensaphone WSG30 Expand the Capabilities of your Sensaphone Accessories (.pdf)»Sensaphone WSG30 Wireless Sensor Gateway User Manual (.pdf)»
